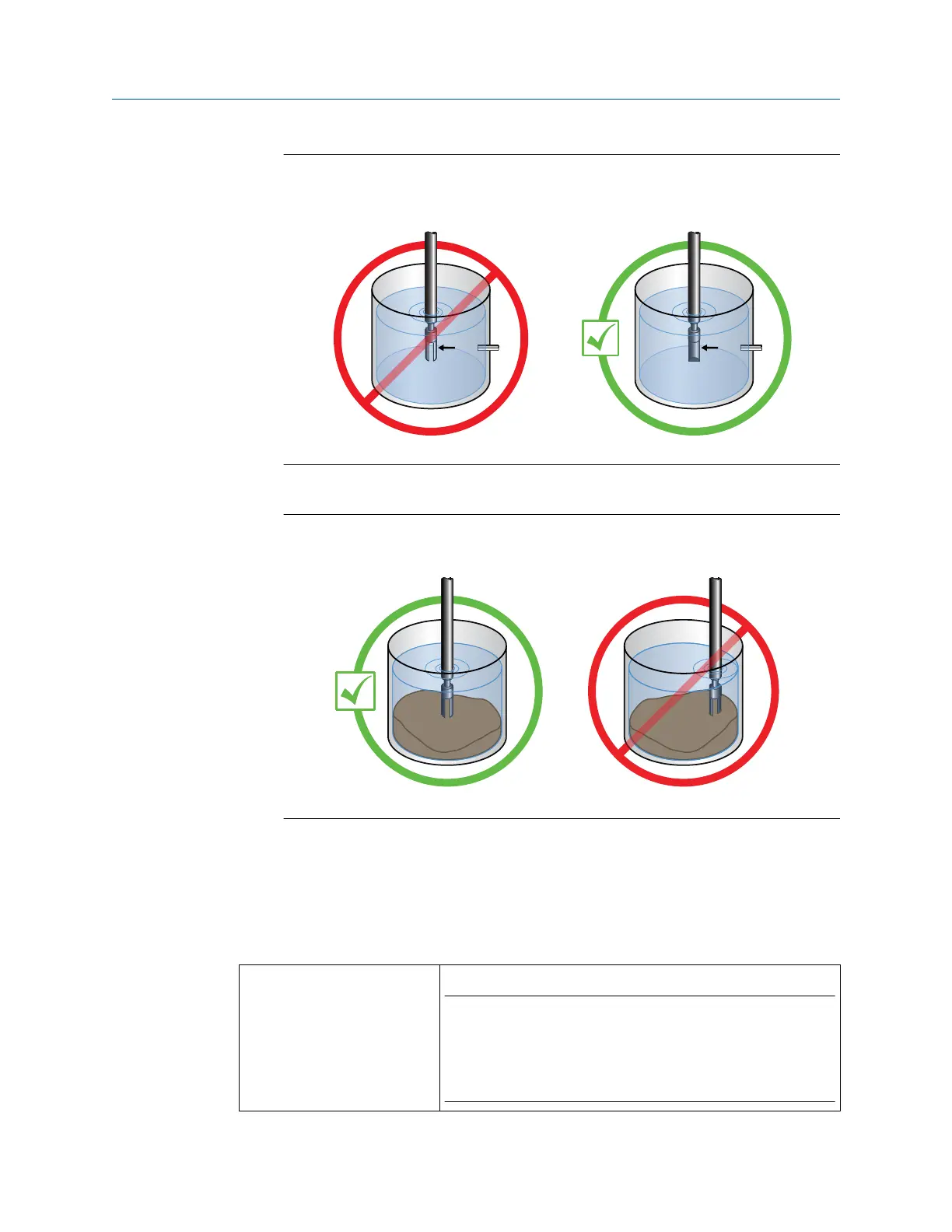

Figure 3-16: Meter placement (flow direction through tine gap)
6. Confirm the meter tines are kept away from deposit buildup.
Figure 3-17: Meter placement (away from deposit buildup)
3.5 Mount in a closed tank (long-stem meter)
Prerequisites
Verify the following conditions:
Flow
0.3 to 0.5 m/s (at the meter)
Important
If an agitator/stirrer is fitted inside the tank, then the flow
velocity inside the tank could be higher than 0.5m/s if the meter
is mounted close to the side wall. Mounting the meter closer the
center of the tank helps reduce the flow velocity seen by the
meter.
Installation Manual Mounting
MMI-20020989 May 2019
Installation Manual 31
