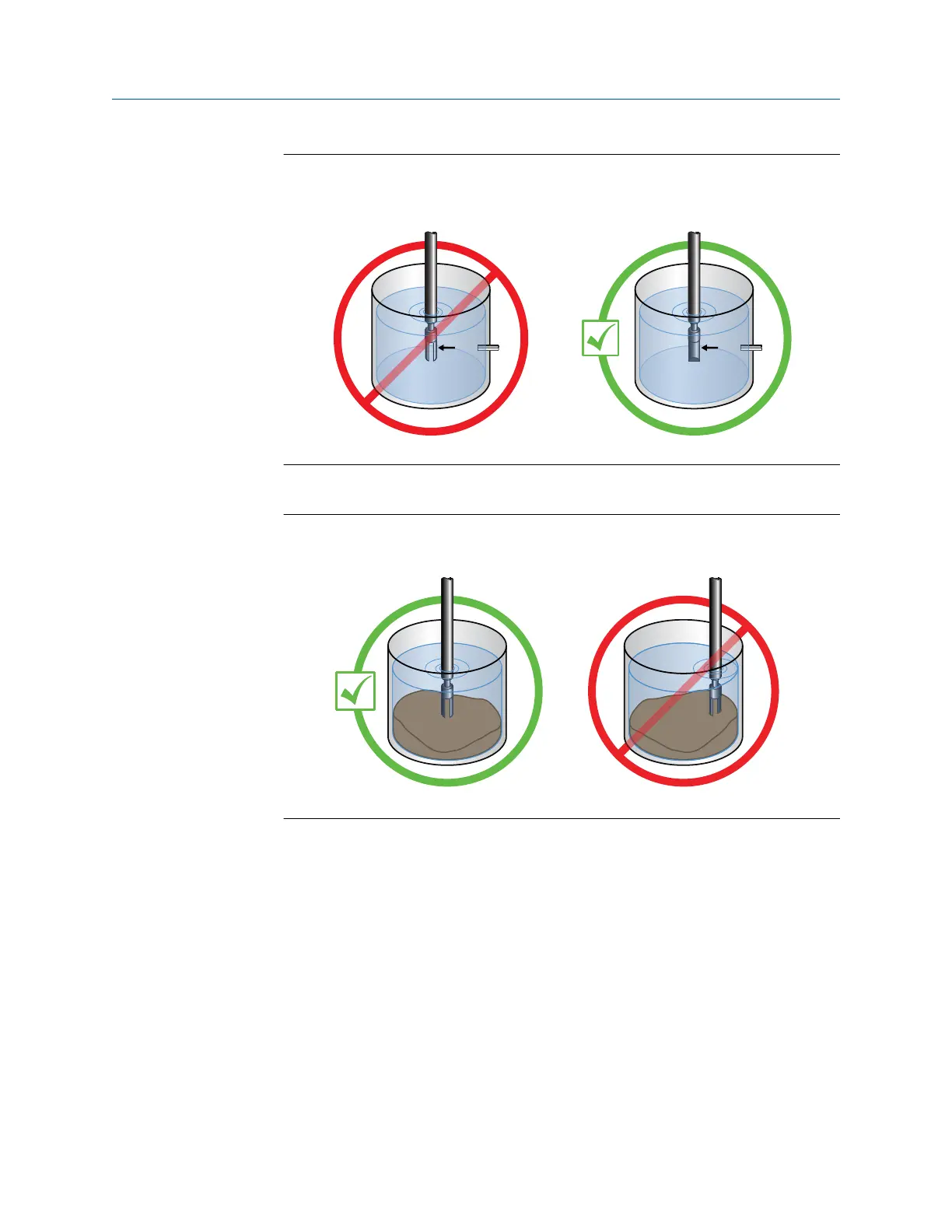

Figure 3-24: Meter placement (flow direction through tine gap)
8. Confirm the meter tines are kept away from deposit buildup.
Figure 3-25: Meter placement (away from deposit buildup)
3.6 Attach the PFA ring and circlip
You attach the PFA ring (and circlip) around the boss on the underside of the meter flange
to center the meter tines within a 2 in (51 mm) Schedule 40 or 80 pipe. The circlip holds
the ring in place.
Procedure
See the figure below for information on attaching the PFA ring and circlip to the meter.
Installation Manual
Mounting
MMI-20020989 May 2019
Installation Manual 35
