b. Tighten the screws to hold the wires in place.
c. Ensure integrity of gaskets, grease all O-rings, then replace the core processor
housing cover and tighten all screws, as required.
3.2 Wire the dual core processor (option 1)
Use this section for a dual core processor installation.
3.2.1 Connect the 9-wire cable on a dual core processor
Prerequisites
Prepare and install the cable according to the instructions in the Micro Motion Liquified
Natural Gas Meter Installation Guide.
Procedure
1. Remove the dual processor housing cover.
2. Insert the stripped ends of the individual wires into the terminal blocks. Ensure that
no bare wires remain exposed.
3. Match the wires color for color.

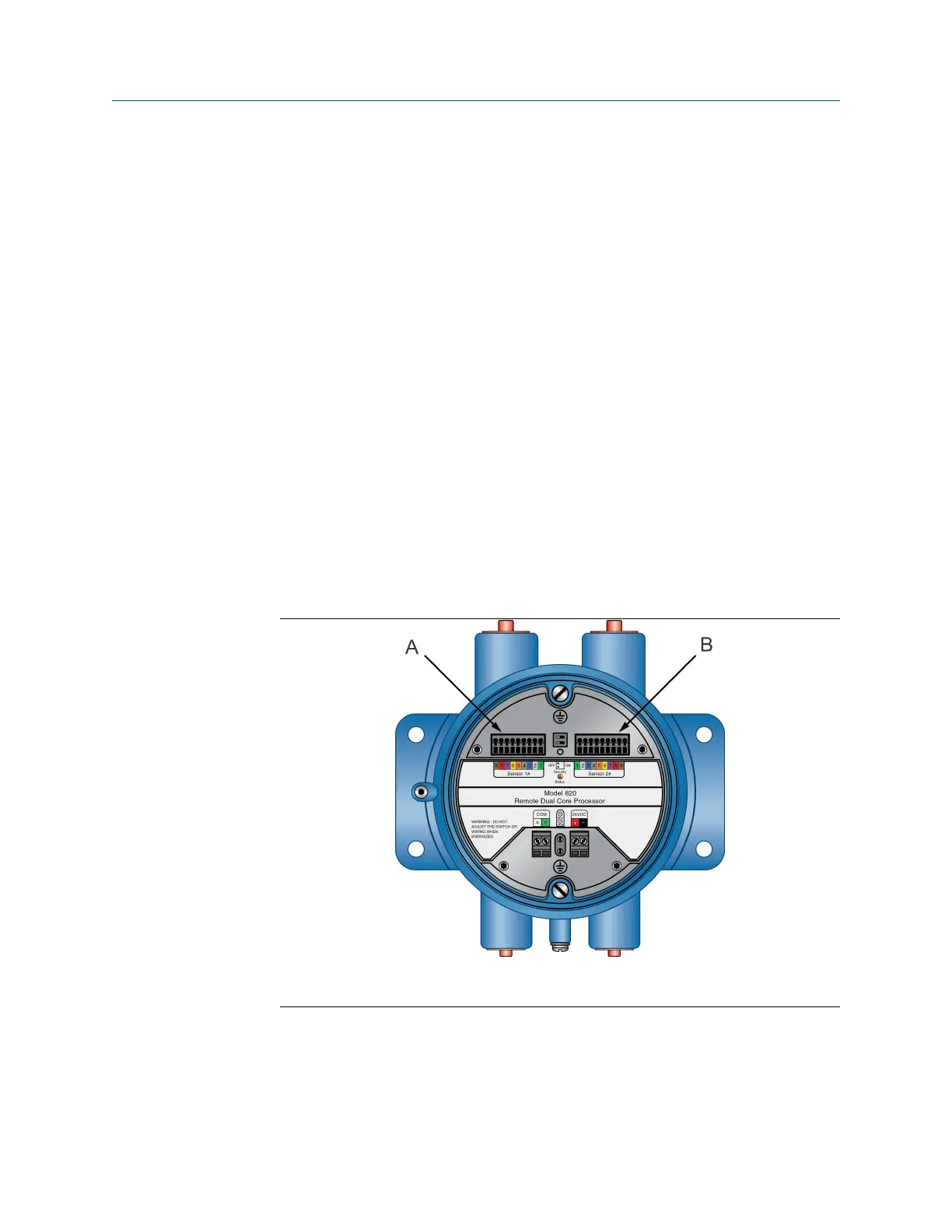

A. Sensor 1
B. Sensor 2
4. If the wire length is not 3m, use ProLink III to register a different length. For more
information, see the Micro Motion LNG Series Meters Configuration and Use Manual.
Wiring
14 Micro Motion Liquified Natural Gas Meter
