Duplication prohibited MP101M Environnement S.A
3–7
SEPTEMBER 2013
3.2 PROGRAMMING THE MP101M
3.2.1 SELECTION AND MODIFICATION OF PROGRAMMABLE PARAMETERS
The keyboard is located under the LCD screen. The bottom line gives the function of each key for the
current screen.
The title of the menus and the selected fields are displayed in reverse video. By default, the first line of
the menus is selected. In the next sections, the selected parameters are symbolized in white on black
background.

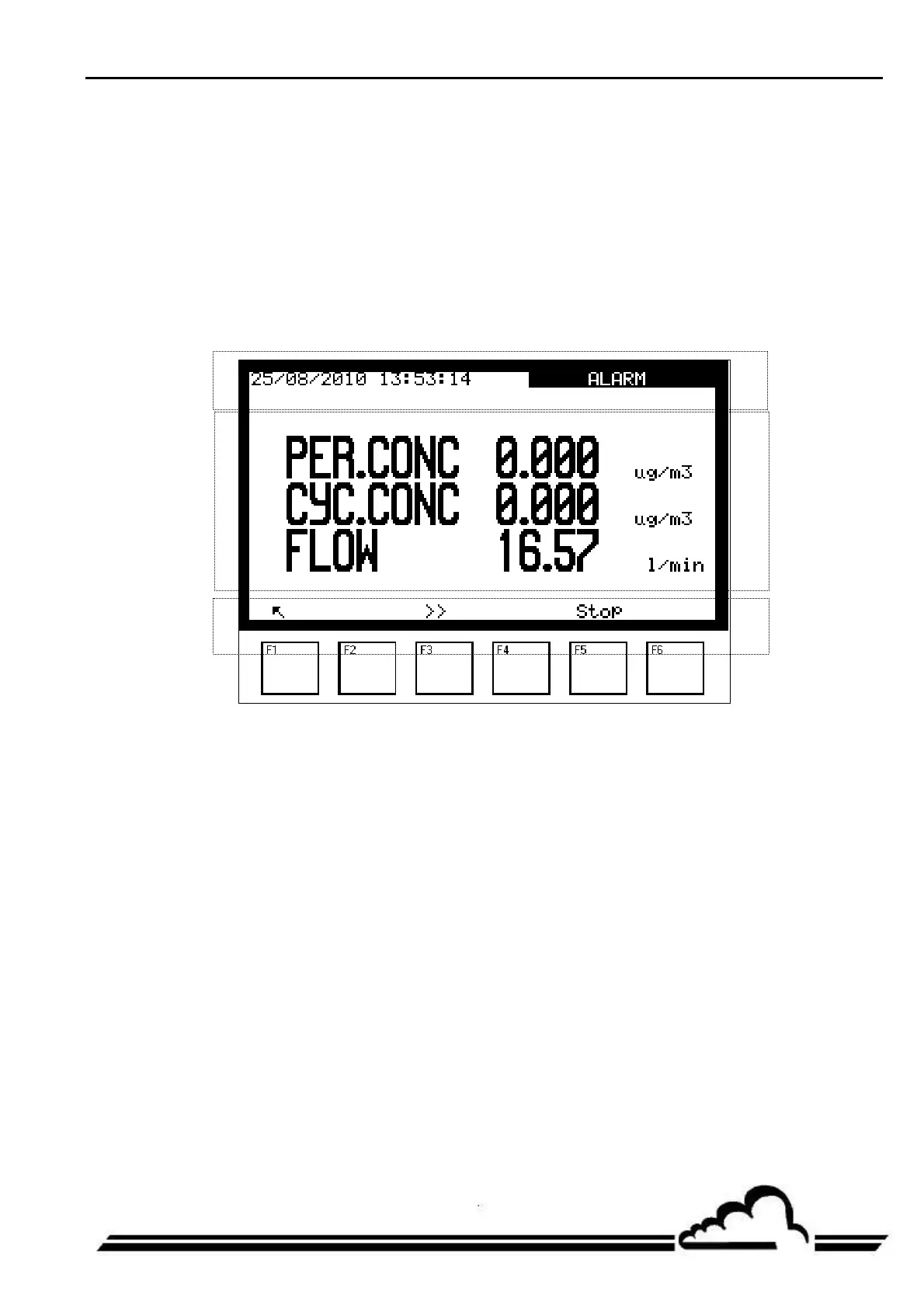

3.2.1.1 Screen areas definition
Information area: it displays the date and time in the top left corner. In the top right corner,
the "ALARM" message is displayed if a fault concerning the operating parameters of the
analyzer is detected.
Measurement or configuration area: it displays the measurement parameters (parameters,
value, units ...) or the configurable parameters according to the selected menu.
Status area and key functions: it displays the keys function, the operating mode of the
analyzer.
NOTE : In the next sections, the keys are symbolized by the icon or the function displayed inside
brackets.
