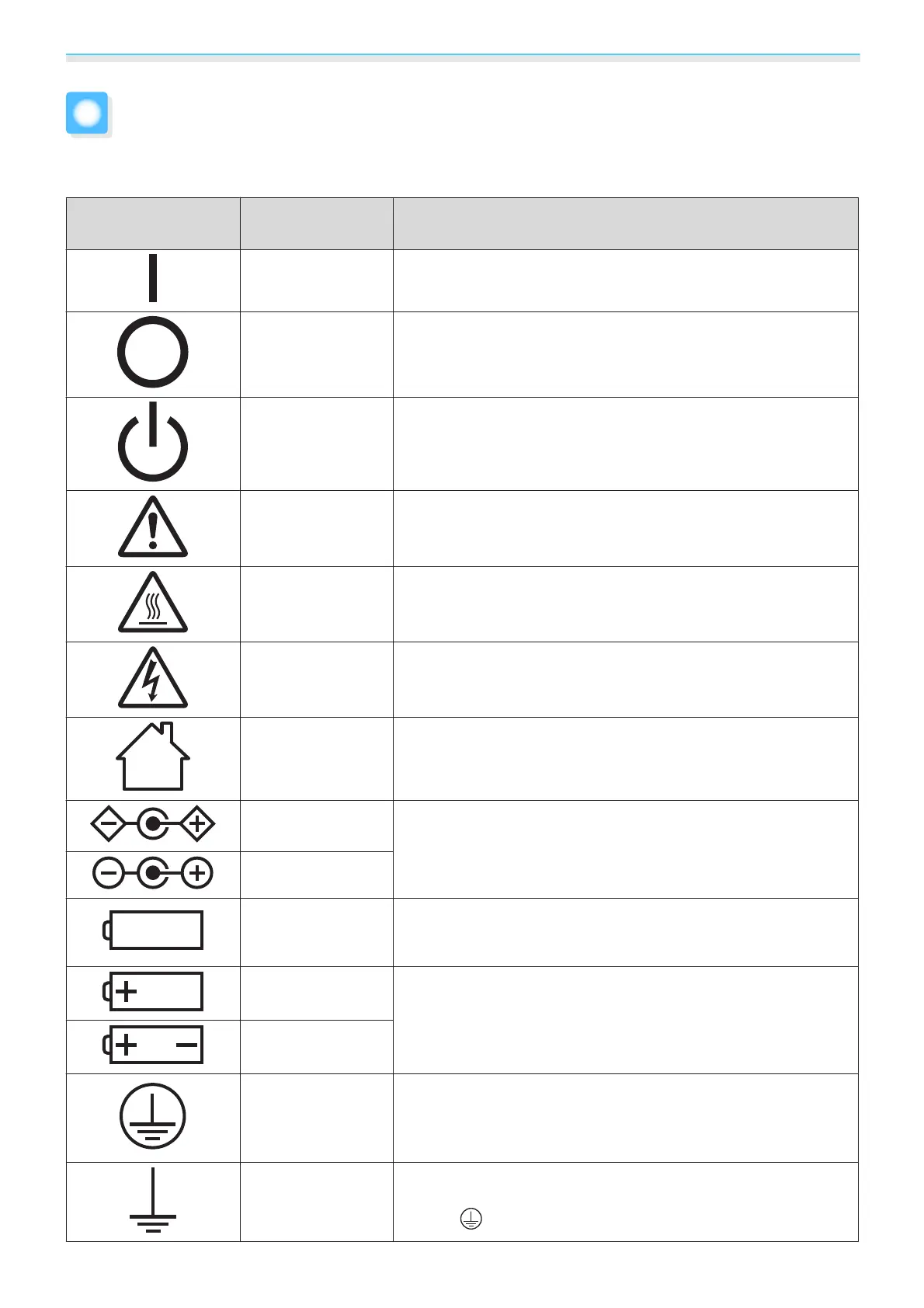

List of Safety Symbols
The following table lists the meaning of the safety symbols labeled on the equipment.
Symbol mark Approved stand-
ards
Meaning
IEC60417
No. 5007
"ON" (power)
To indicate connection to the mains.
IEC60417
No. 5008
"OFF" (power)
To indicate disconnection from the mains.
IEC60417
No. 5009
Stand-by
To identify the switch or switch position by means of which part
of the equipment is switched on in order to bring it into the stand-
by condition.
ISO7000
No. 0434B
IEC3864-B3.1
Caution
To identify general caution when using the product.
IEC60417
No. 5041
Caution, hot surface
To indicate that the marked item can be hot and should not be
touched without taking care.
IEC60417
No. 6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of electric shock.
IEC60417
No. 5957
For indoor use only
To identify electrical equipment designed primarily for indoor
use.
IEC60417
No. 5926
Polarity of d.c. power connector
To identify the positive and negative connections (the polarity)
on a piece of equipment to which a d.c. power supply may be
connected.
---
IEC60417
No. 5001B
Battery, general
On battery powered equipment. To identify a device for instance
a cover for the battery compartment, or the connector terminals.
IEC60417
No. 5002
Positioning of cell
To identify the battery holder itself and to identify the positioning
of the cell(s) inside the battery holder.
---
IEC60417
No. 5019
Protective earth
To identify any terminal which is intended for connection to an
external conductor for protection against electric shock in case
of a fault, or the terminal of a protective earth electrode.
IEC60417
No. 5017
Earth
To identify an earth (ground) terminal in cases where neither the
symbol
is explicitly required.

Epson EH-TW7400 Specifications

General

Matrix size	0.74 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	200000:1
Screen size compatibility	50 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-30 - 30 °
Throw ratio	1.35 - 2.84:1
Zoom capability	Yes
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Video processing	10 bit
Video color modes	Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
3D video colour modes	3D Dynamic, 3D Cinema
Analog signal format system	Not supported
DVI port	No
Audio (L/R) in	-
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Noise level	31 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Cables included	AC, HDMI
Pallet width	800 mm
Pallet height	2510 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	193 mm
Weight	11200 g
Package depth	655 mm
Package width	512 mm
Package height	260 mm
Package weight	14425 g
