Epson EH-TW7400 User Manual

Preparing
19
Connecting a Device
Attention
•
Make cable connections before connecting to a power outlet.
•
Check the shape of the cable's connector and the shape of the port, and then connect. If you force a connector
of a different shape into the port, it could cause damage and a malfunction to occur.

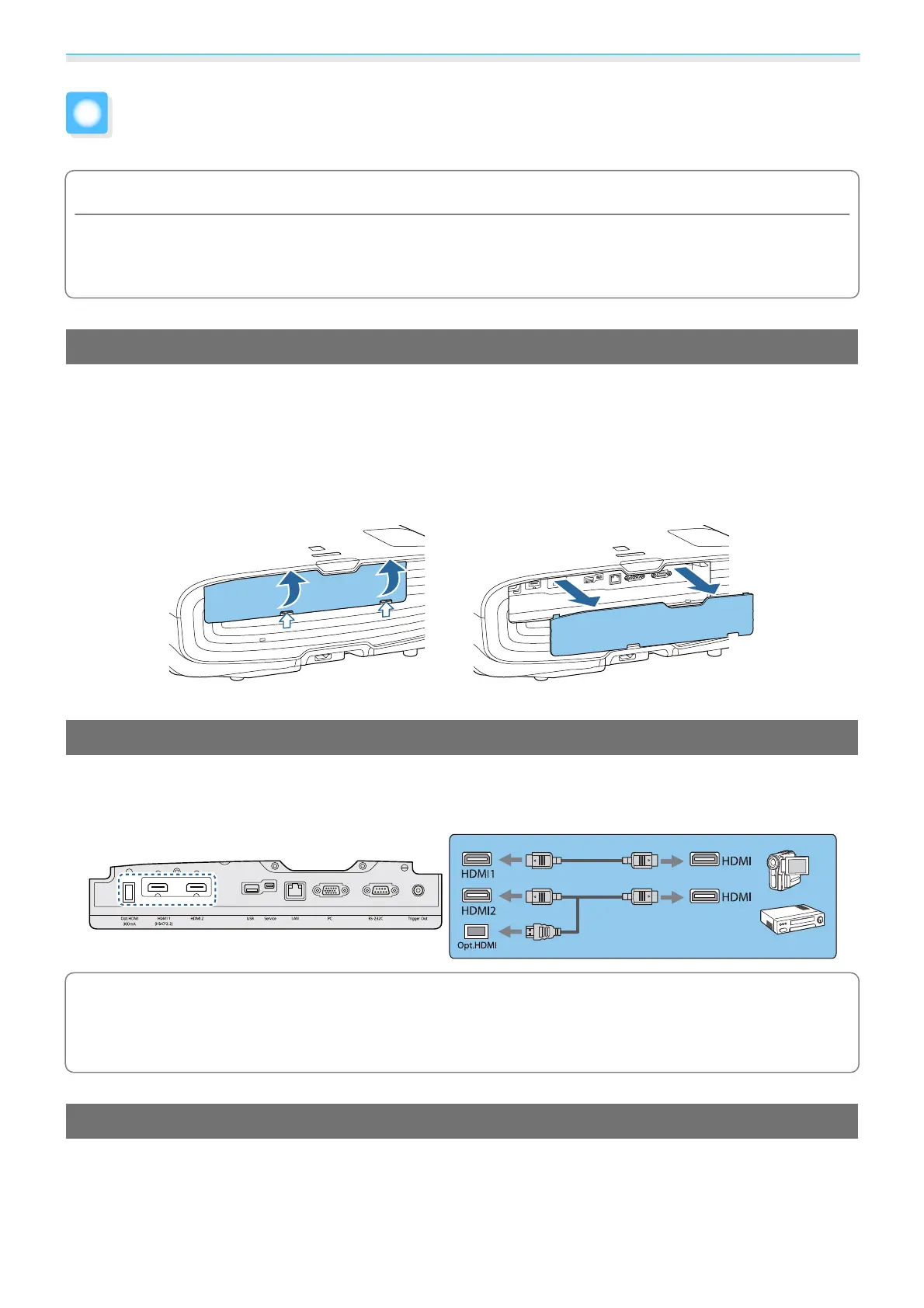

Removing the Terminal Cover
Depending on the model you are using, the projector may have a terminal cover for the connector section
on the rear to improve the overall appearance of the projector. Remove the terminal cover before connecting
any cables.
There are gaps at the bottom of the terminal cover that allow you to pull the cover forward and lift it from
the grooves at the top.
When reattaching, first insert the protruding sections into the grooves at the top.
Connecting Video Equipment
To project images from DVD/Blu-ray players, connect to the projector using one of the following methods.
When using a commercially available HDMI cable
c
•
When using the power supply port for an optical HDMI cable, connect it to the Opt.HDMI port.
•
When projecting images in HDCP 2.2, connect to the HDMI1 port.
•
This projector does not have a built-in speaker. Connect the projector to your AV system to listen to
audio from connected equipment.
Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.

Epson EH-TW7400 Specifications

General

Matrix size	0.74 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	200000:1
Screen size compatibility	50 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-30 - 30 °
Throw ratio	1.35 - 2.84:1
Zoom capability	Yes
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Video processing	10 bit
Video color modes	Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
3D video colour modes	3D Dynamic, 3D Cinema
Analog signal format system	Not supported
DVI port	No
Audio (L/R) in	-
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Noise level	31 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Cables included	AC, HDMI
Pallet width	800 mm
Pallet height	2510 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	193 mm
Weight	11200 g
Package depth	655 mm
Package width	512 mm
Package height	260 mm
Package weight	14425 g
