Epson L120 User Manual

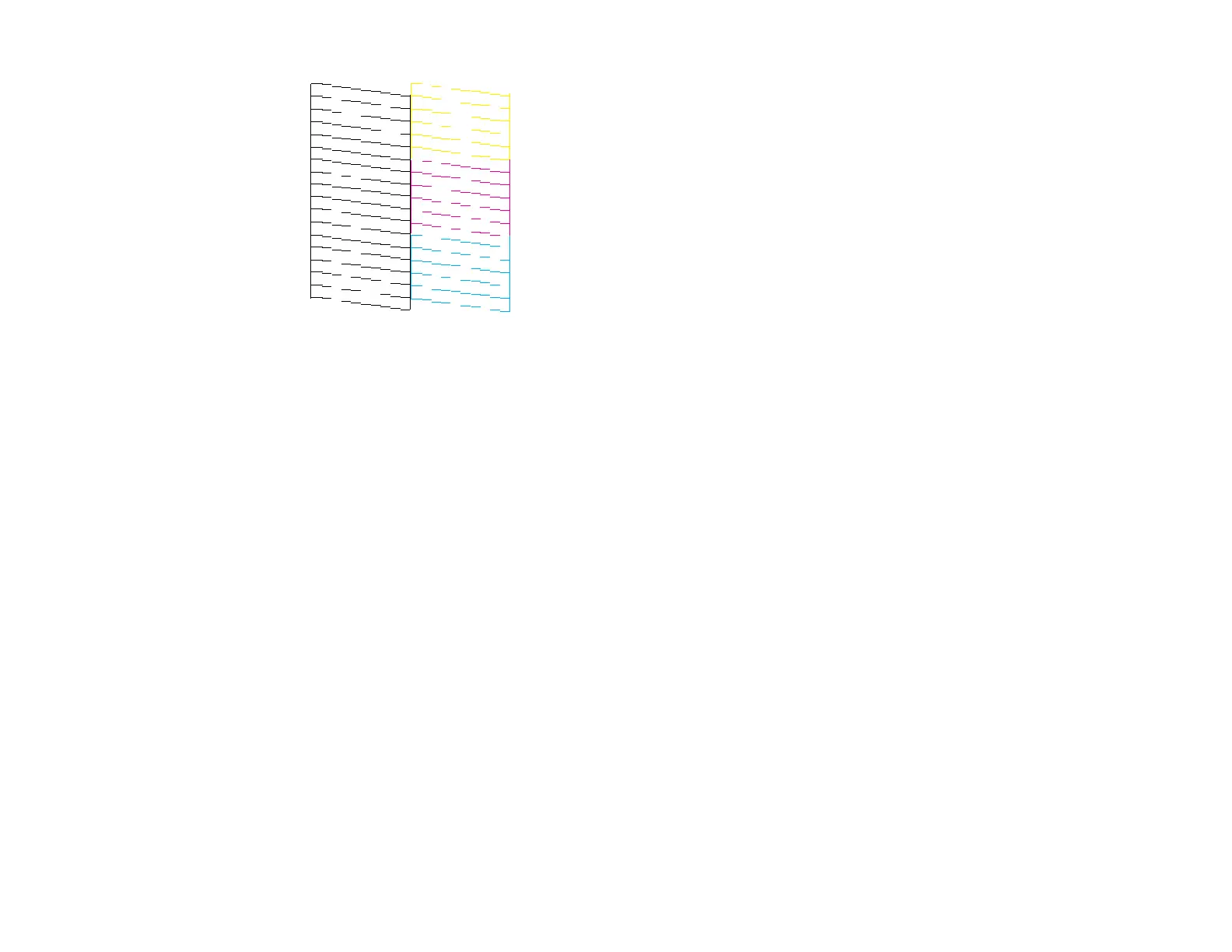

6. If there are no gaps, the print head is clean and you can continue printing.
If there are gaps or the pattern is faint, clean the print head.
Parent topic: Print Head Nozzle Check
Related concepts
Print Head Cleaning
Related tasks
Loading Paper
Checking the Nozzles Using a Computer Utility
You can check the print head nozzles using a utility on your Windows or Mac computer.
1. Make sure no product lights are indicating errors.
2. Load a few sheets of plain paper in the product.
3. Do one of the following:
• Windows: Access the Windows Desktop and right-click the product icon in the Windows taskbar.
• OS X 10.6/10.7/10.8/10.9: In the Apple menu or the Dock, select System Preferences. Select
Print & Fax, Print & Scan, or Printers & Scanners, select your product, and select Options &
Supplies. Select Utility and select Open Printer Utility.
• OS X 10.5: In the Apple menu or the Dock, select System Preferences. Select Print & Fax,
select your product, and select Open Print Queue. Select Utility.
4. Select Nozzle Check.
56

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
