Disassembly/Reassembly Disassembly/Reassembly Procedures 28
Epson WF-7620/7610/7110 Series Revision B
2.2 Disassembly/Reassembly Procedures
2.2.1 Functional differences between models and component parts
In "2.2.3 Disassembly Flowchart (p31)", the procedures are indicated on the premise that some parts/units are
removed in advance. Make sure to remove the following parts/units before starting disassembly.
 Cassette Assy 1st / 2nd

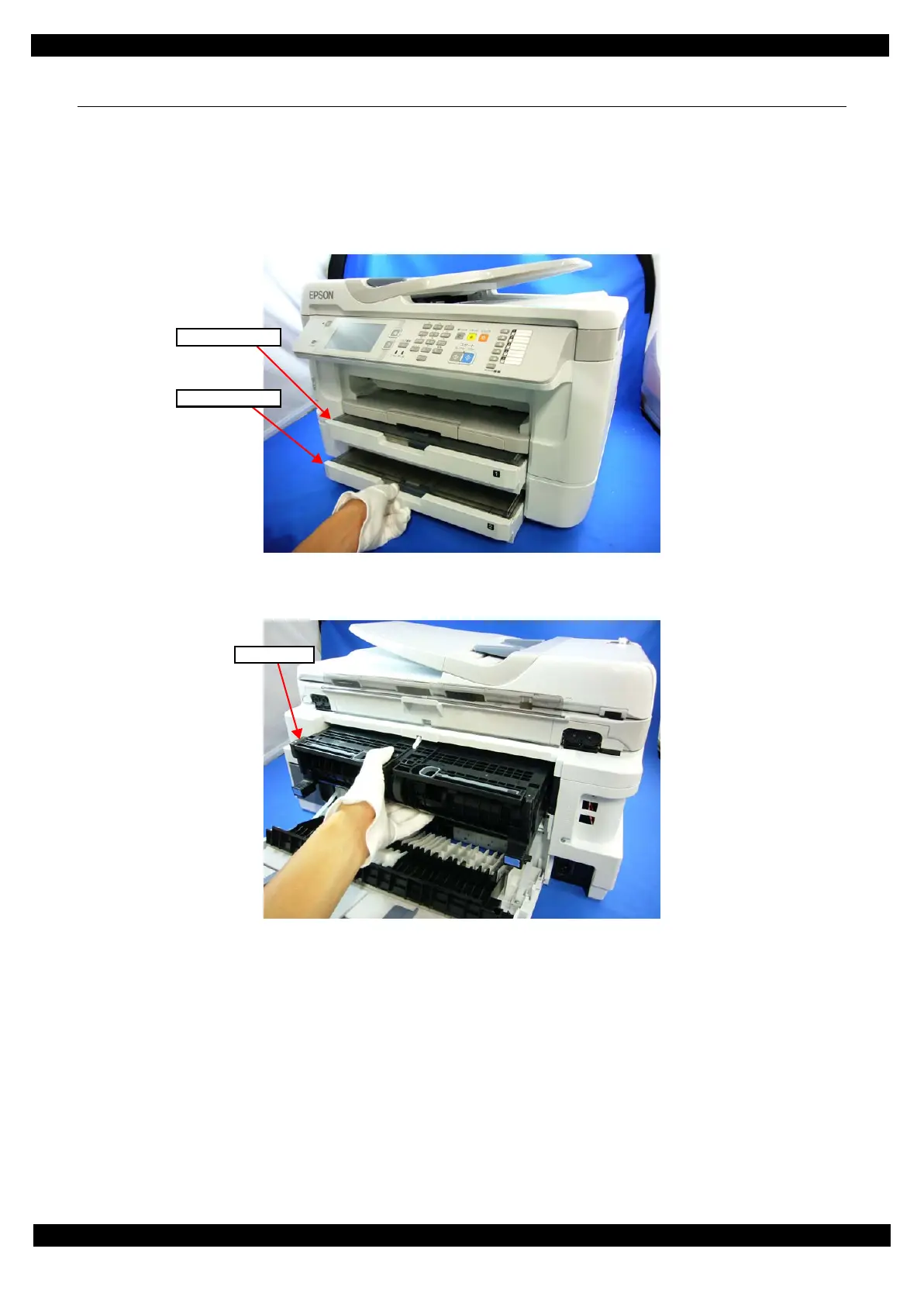

Figure 2-1. Removing the Cassette Assy 1st/2nd
 Duplex Unit
Figure 2-2. Removing the Duplex Unit
Cassette Assy 1st
Cassette Assy 2nd
Duplex Unit
