Appendix Protection for Transportation 86
Epson WF-7620 / WF-7610 / WF-7110 Series Revision B
5.2 Protection for Transportation
This section describes the cautions for packing the printer before returning it to the user.
5.2.1 Securing the CR Unit
 Purpose
To prevent damaging the CR Unit by shock during transportation.
 Risk if it is not performed.
Fatal error caused by the damage of the CR Unit.
 Preparation
Strong tape (Length: 220 mm, width: 22 mm, fold on end: 5 mm)
 Method
1. Turn off the printer to set the CR Unit to its home position.
2. Move the CR Unit until it hits the right frame from the home position.
3. Attach the strong tape on the CR Unit as shown below to secure the CR Unit.

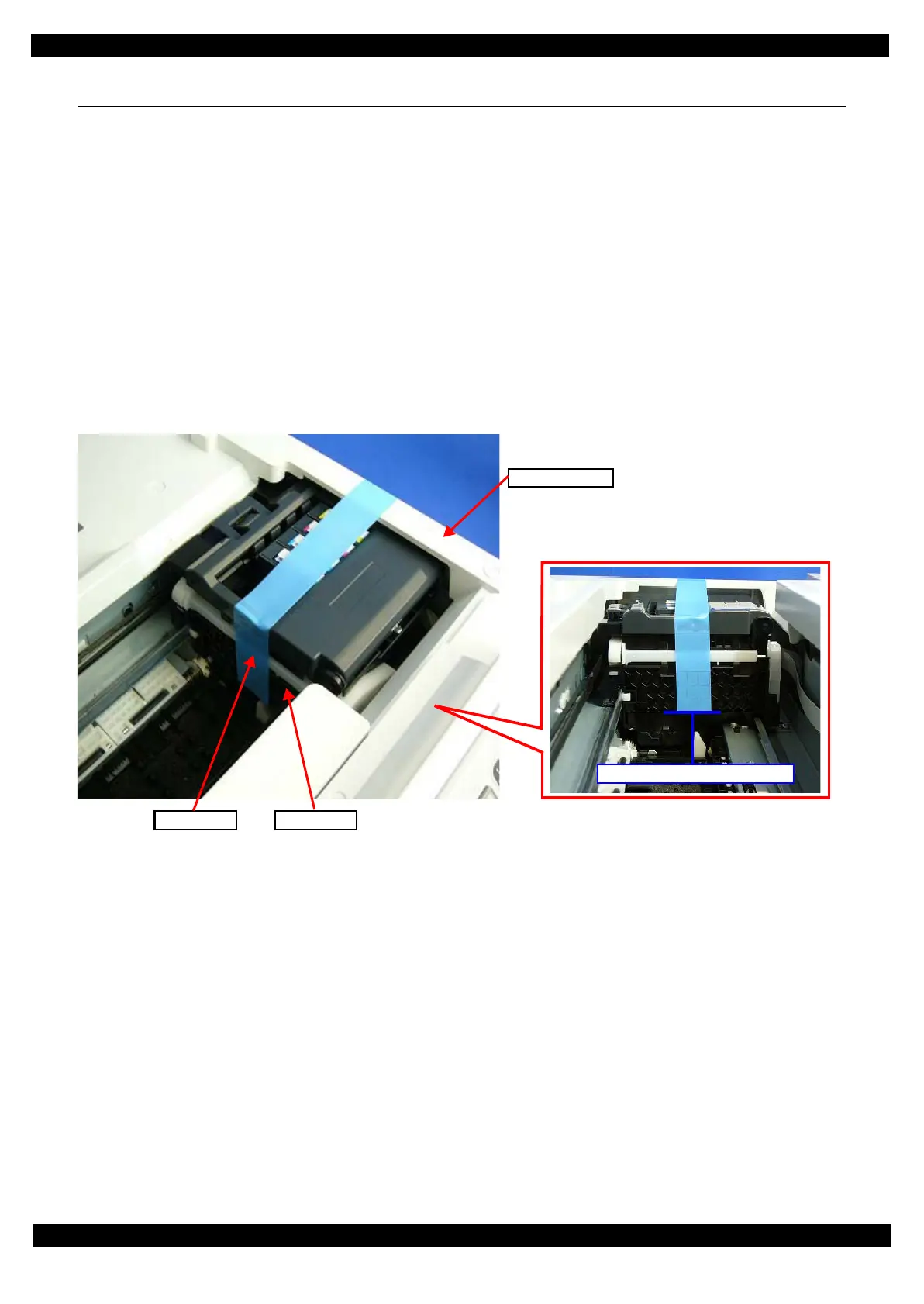

Figure 5-2. Securing the CR Unit
The tape attaching start position
Strong tape
CR Unit
Housing upper
