FiberHome AN5506-02-A User Manual

4 Web Configuration Guide
4.4.1.5 MAC Address Filtering
One user device may have multiple IP addresses but only one MAC
address. The user device access authority in the LAN can be
controlled effectively by setting the MAC address filtering. After the
fire wall is enabled, the pre-set rules will take effect, and the MAC
addresses that meet the filtering conditions will be filtered.
1. Select Security in the navigation bar and select Firewall→
MAC address Filtering in the left link bar, and then click Add to
open the MAC address filtering table configuration tab, as
shown in Figure 4.15.

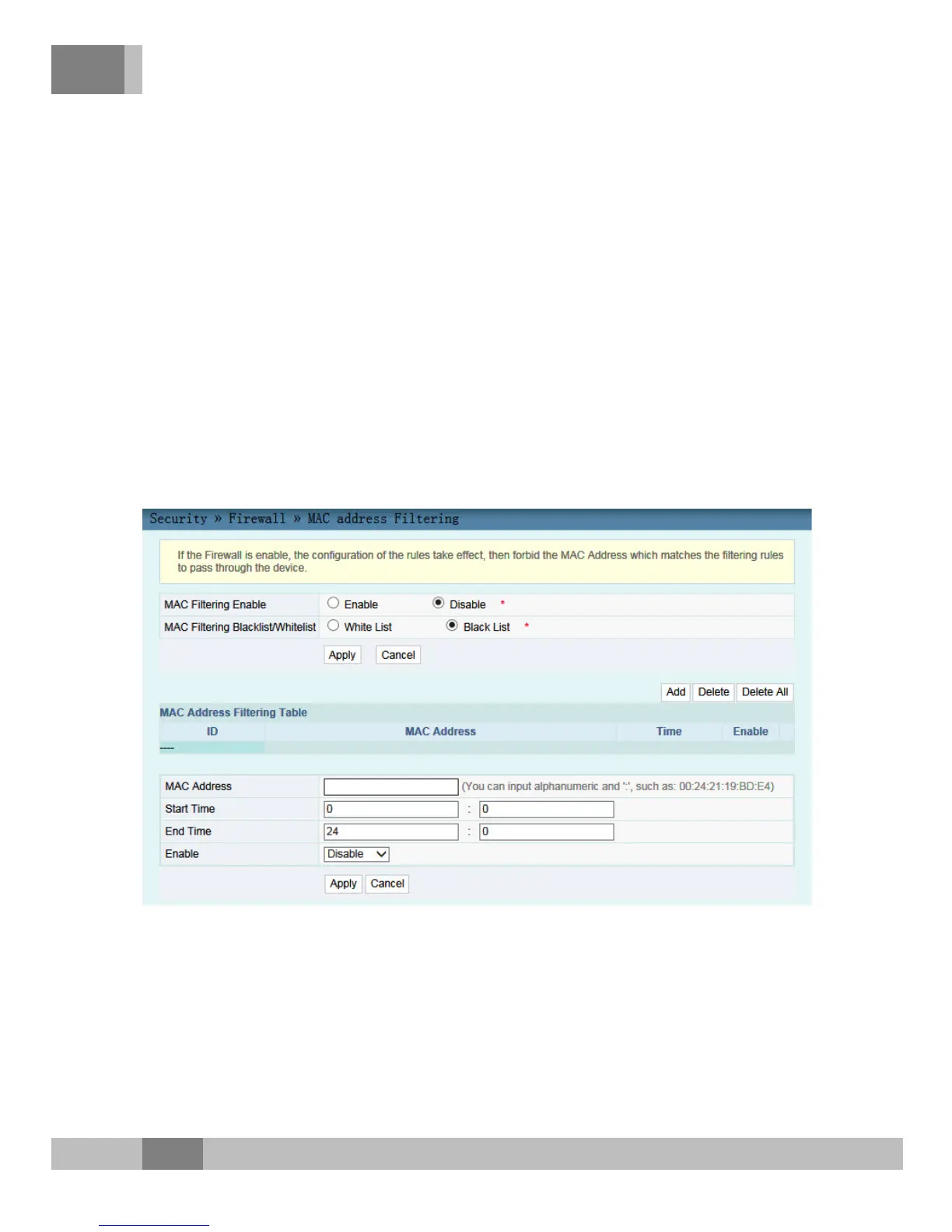

Figure 4.15 MAC Address Filtering
2. Configure parameters related to filtering as required. Table 4.8
describes the parameters.
3. Click Apply to apply and save the configuration.
50
