4 Web Configuration Guide

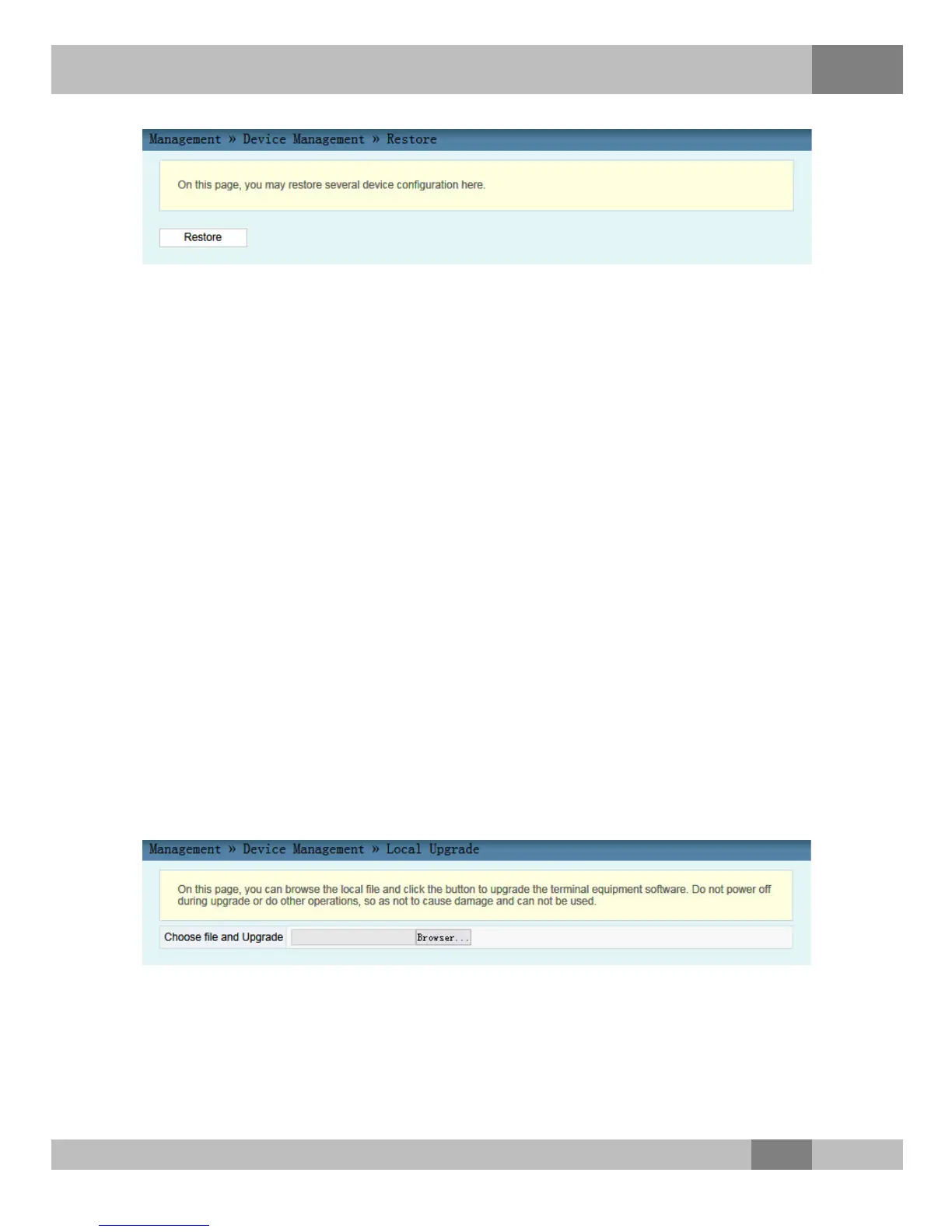

Figure 4.25 Restoring the Configuration Data
2. Click Restore and then click OK in the alert box that appears.
Wait until the configuration data are completely restored.
4.6.2.2 Configuration Complete Restoring
This function is reserved for other equipment sets. To restore the
ONU configuration, operate according to Configuration Restoring.
4.6.2.3 Local Upgrade
Select the local file and upgrade the ONU software. During upgrade,
do not power off the equipment or perform other operations to
prevent damage to the equipment.
1. Select Management in the navigation bar. Select Device
Management→Local Upgrade from the left link bar to open
the local upgrade tab, as shown in Figure 4.26.
Figure 4.26 Local Upgrade
2. Click Browse. In the dialog box that appears, select the
equipment software version to be upgraded and click Open to
upgrade the ONU software version.
61
