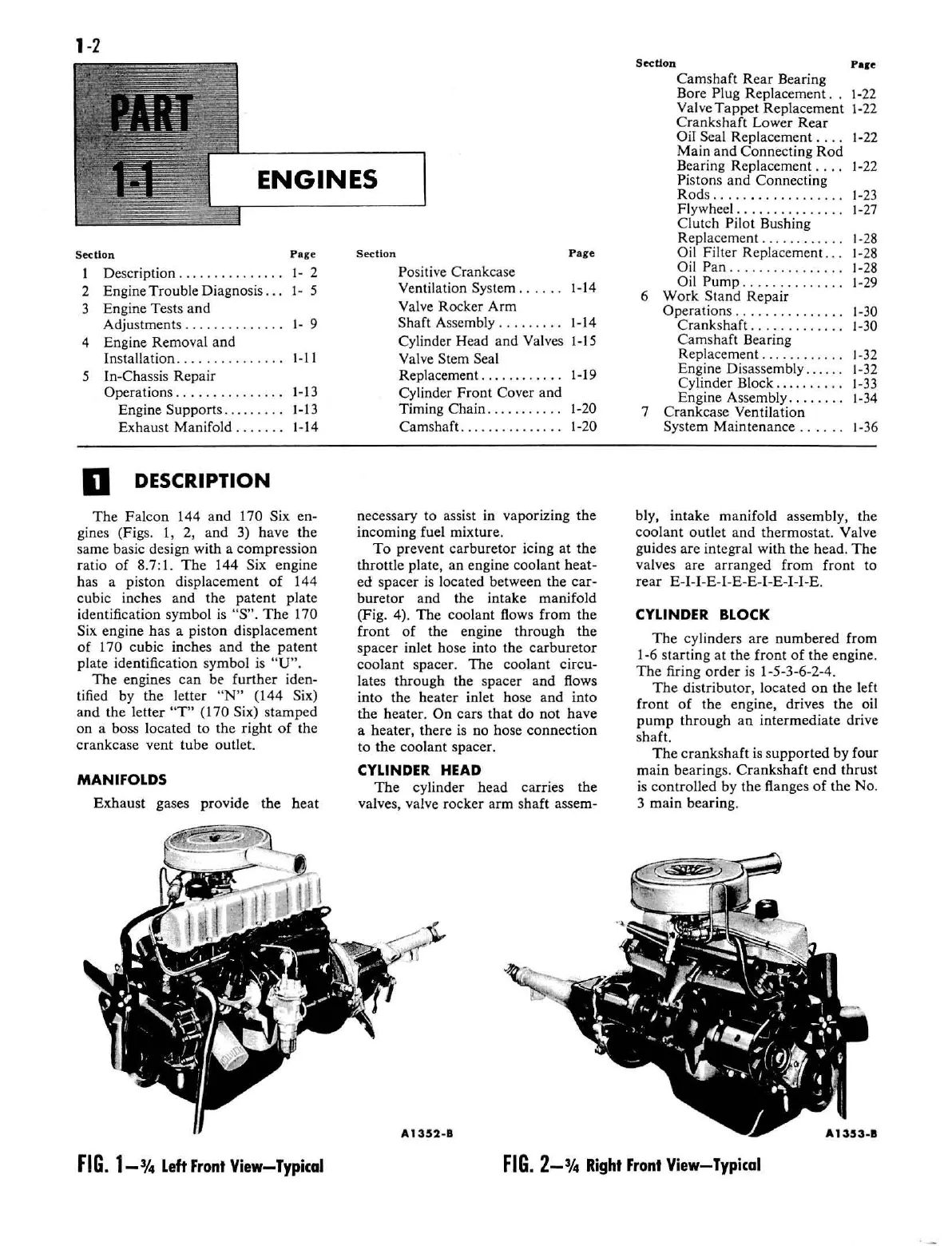

1-2
ENGINES
Section
Pag e
1 Description.. . . . . . . . . . . . .. 1- 2
2 Engine
Trouble Diagnos is . .. 1- 5
3 Engine
Te sts and
Adjustment s. . . . . . . . . . . . .. 1- 9
4 Engine Remo va l and
Installation ........ .. ..... 1 -11
5 In-Chass is Repair
Operat ion s. . . . . . . . . . . . . .. 1-13
Engine
Supports. , .... . .. 1-13
Exhaust Manifold
... . .. . 1-14
D DESCRIPTION
The Falcon 144 and 170 Six en-
gines (Figs. I, 2, and 3) have th e
sa me ba sic design with a compre ssion
ratio
of 8.7: 1. The 144 Six engine
has a pis ton displace ment of 144
cubic inches a nd the patent pl ate
identification symbol is "S". The 170
Six. engine has a pis ton displaceme nt
of 170 cu bic inche s and the pate nt
plate identification sy mb ol is "U" ,
Th e engines can be further iden-
tified by the le tt er " N" (144 Six)
a nd the letter "T" (170 Six) st ampe d
on a boss located to the right of the
cr a nkca se vent tube outlet.
MANIFOLDS
Exhaust gases provide the h ea t
Section
Page.
Positi ve Crankcase
Ventilation
S ys tem. . . . .. 1-14
Valve Rocker Arm
Shaft Assembl y. . . . . . . .. 1-14
Cylinder
He ad and Valves 1-15
Val
ve Stem Seal
Replace ment. . . . . . . . . . .. 1-19
Cylinder
Front Cover and
Timing Chain ... .. . .. . .. 1-20
Camshaft. . . . . . . . . . . . . .. 1-20
necessary to assist in vaporizing the
incoming fuel mix tur e.
To pre v ent ca rburetor icing at the
throttle plate, an engine coola nt heat-
ed spacer is located between the car-
buretor and the int ake manifold
(Fig. 4). The coo lant flows from the
front of the eng ine through the
spacer inlet hose into the carb uret or
coolant spacer. The coolant circu-
lates through the spacer a nd flows
into the h
eater inlet ho se and into
the heater. On ca rs that do not have
a heater, there is no hose co nnection
to the coolant spacer.
CYLINDER HEAD
The cylinder h ead ca rries the
valves, valve rocker arm shaft assem-
Section
Ca msha ft Rear Bearing
Bore Plug Replacement
..
Val ve Tappet Replacement
Crankshaft Lower
Rear
Oir Seal Replacement ....
Main and Co nnecting Rod
Bearing Replacement . ...
Pistons and Conn ecting
Rod s . .. .............. .
Flywheel.
....... ...... .
Clutch
Pilot Bushing
Replacement
..... . ..... .
Oil Filt er Replacement .. .
O il Pan ........... .... .
Oil Pump ... . .... . .... .
6 Work Stand Repair
Operations .......... .... .
Crankshaft
......... . .. .
Cams ha ft Be ar ing
Replacement
..... . . . ... .
Engine Disassembly
..... .
Cylind er Block ... . . .... .
Engine Assembly, ... . . , .
7
Cra nkcase Ventilation
System Maint enan ce .. ... ,
t-22
t-22
t-22
1-22
1- 23
1- 27
1· 28
1- 28
1-2 8
t-
29
1- 30
t-30
1-32
1- 32
1- 33
t-34
1- 36
bly, int ake manifold assembly, the
coolant outlet and thermostat. Valv e
guides are
int egra l with the head. The
valves are arra nged from f ro nt to
rear E-I-I-E-I-E-E-I-E-I-I-E.
CYLINDER BLOCK
Th e cylinders are numbered from
1-6 s tarting at the fr ont of the engine.
The firing order is 1-5-3-6-2-4.
T he distributor, l oc ated on the left
fr ont of the engine, drives the oil
pump through an intermediate drive
shaft.
The cra nk s haft is suppo rted by four
main be arin gs. Cranksha ft end thru st
is con t ro lled by the flanges of the No .
3
ma in bearing.
FIG. 1-% Left Front View-Typical
FIG. 2-% Right Front View-Typical
