FORMULER Z8 User Manual

http://iptv-rivesud.com http://tv-diablo.com iptv.rivesud@gmail.com
27

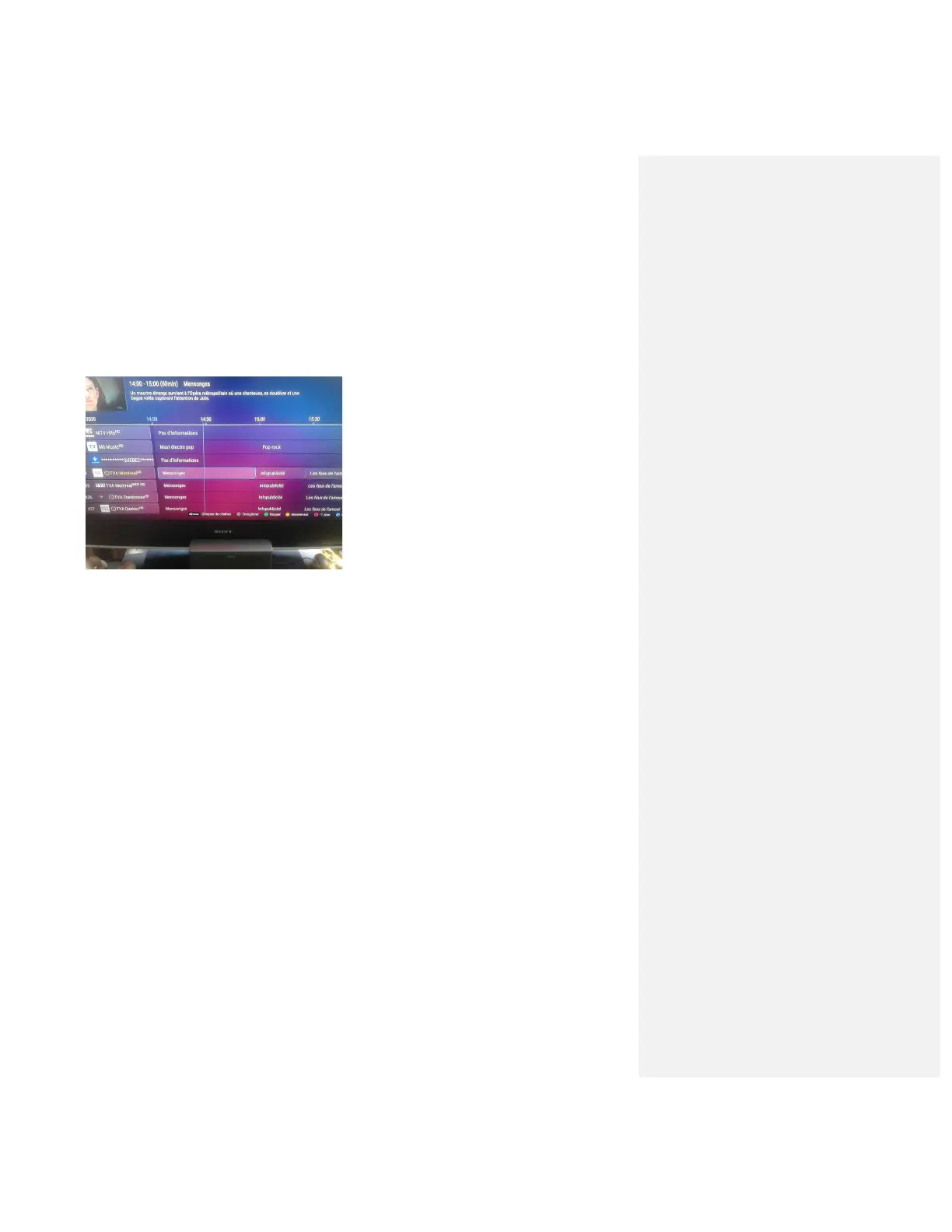

Return up to 96 hr back to watch a program
With diablo it is possible to to back to a program on some selected channels
Go to the TV channel you are interested to go back up to 96 hr
Click on EPG button
This will give you the possibility to back up to 96 hr or advance in the time by using the
arrow
Please note that to go back on time the TV channel must have a red mark on the channel.
Additionally, the title must be written, if it is not written (no information) it is thus not
possible to go back to a program on this channel.
Use left arrow to back on time and once you are on the selected program click OK.
You can use the red button ton the box controller to go 1 day back

FORMULER Z8 Specifications

General

Storage media type	eMMC
Built-in storage media	Yes
Card reader integrated	No
Total storage capacity	16 GB
Product color	Black
Supported radio bands	-
Audio formats supported	AAC, AAC HE, MP1
Image formats supported	BMP, GIF, JPG, PNG
Video formats supported	AVI, AVS, FLV, H.264, H.265, HEVC/H.265, MKV, MOV, MP4, MPEG1, MPEG2, MPEG4, RM, TS, VC-1, VP9
Maximum video resolution	3840 x 2160 pixels
Audio output channels	- channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor cores	4
Internal memory	2000 MB
Internal memory type	DDR4
AC input voltage	12 V
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W

Weight and Dimensions

Width	105 mm
Height	22 mm
