Franke FCS4050 - 6.3 Water Supply Requirements

Franke Kaffeemaschinen AG Installation | 6
User manual SB1200 FM CM 35

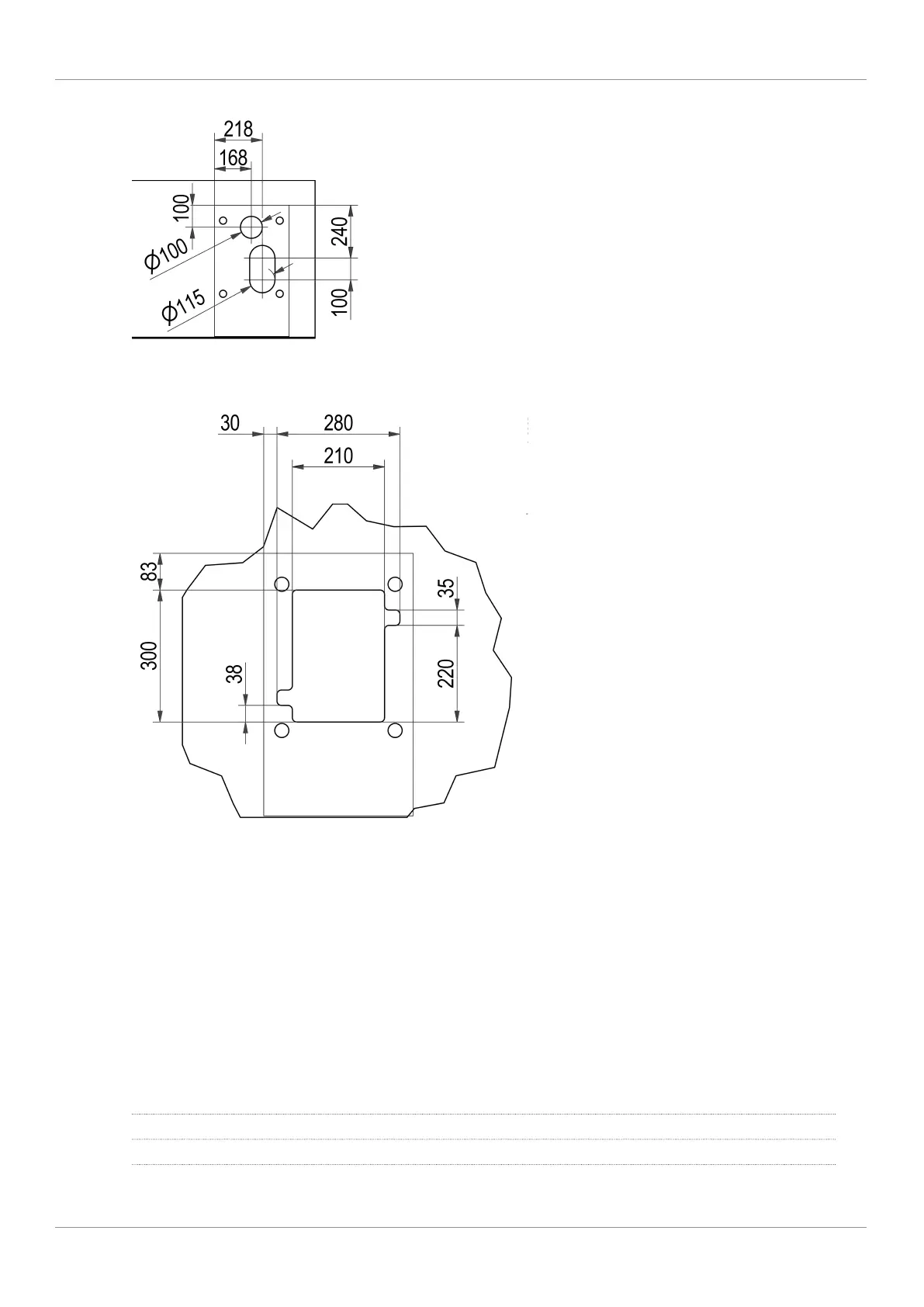

Openings in counter top when using adjustable feet
Opening in counter top when using the molded gasket
6.2.1 Adjustable feet
Feet with a fixed height of 40mm are included in the scope of delivery if no other option is chosen when ordering
the coffee machine. Adjustable feet with a height of 70 or 100mm are optionally available. Feet with a fixed height
of 7mm, including a molded gasket for fixing, are also available to order.
Adjustable feet can be used to compensate for unevenness or differences in height.
6.3 Requirements of the water supply
6.3.1 Mains water connection
Water pressure 0,8-8,0 bar
Flow rate >100 ml/s
