47
EN

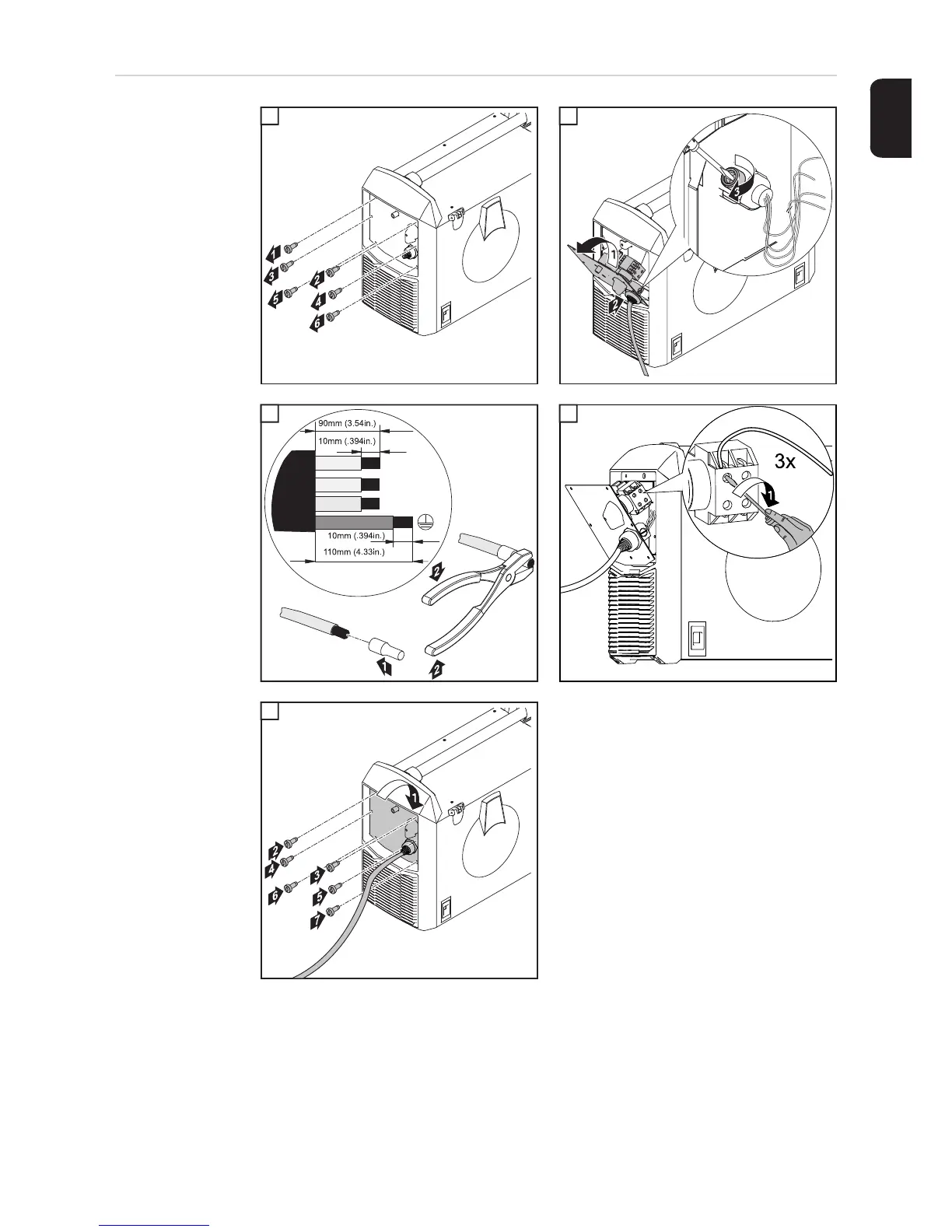

Fitting the strain-
relief device, TSt
2500c MV / TSt
2700c MV
1
2
3
4
5
1
3,5 Nm
2
3
4
5
IMPORTANT!
Tie the phase conductors near the strain-relief device using cable ties.
46
48
