Setup menu
General remarks The Setup menu provides simple access to expert knowledge in the power source and to
additional functions. The Setup menu can be used to make simple adjustments of the pa-
rameters to suit the various job settings.
Configuring the
setup parameters

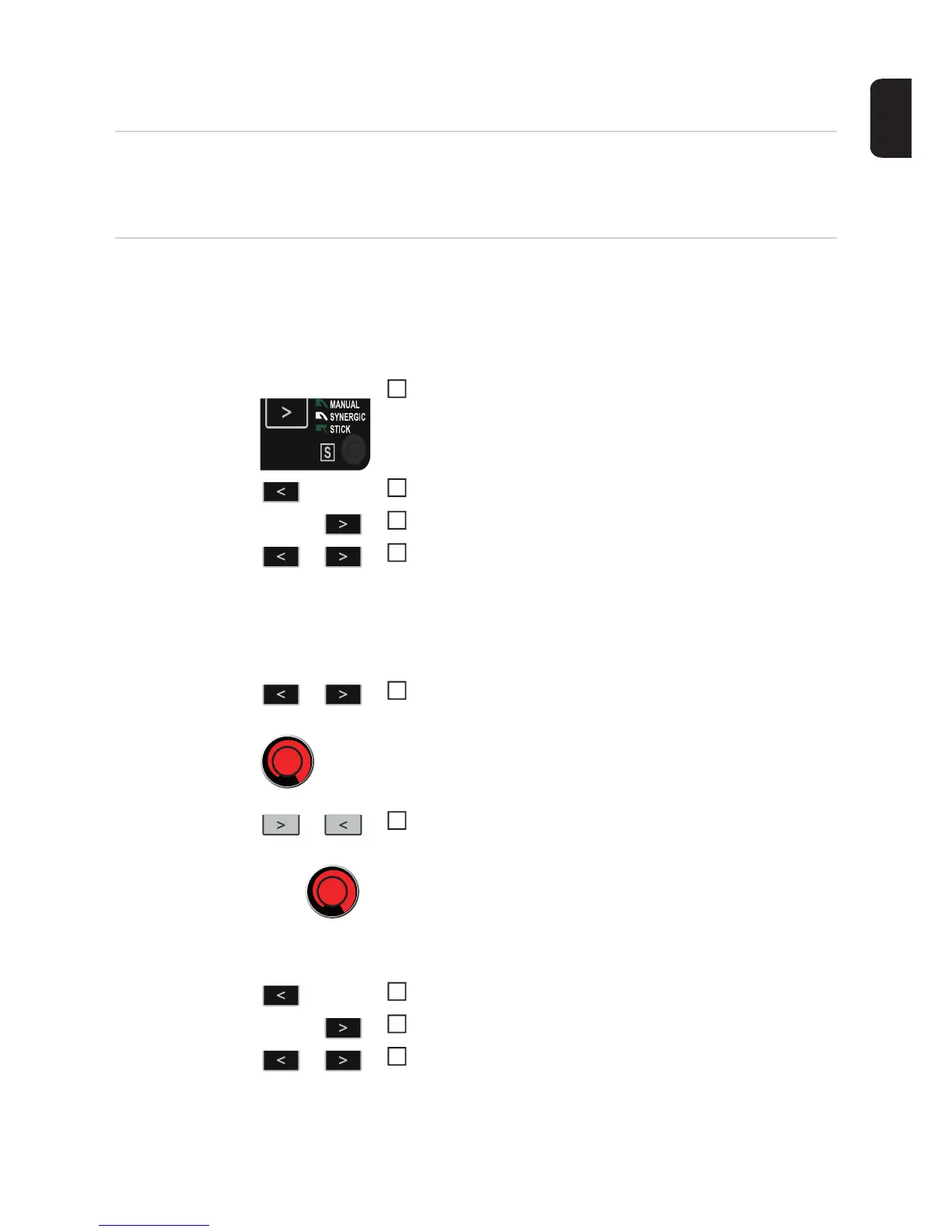

Configuring the setup parameters is described here with reference to the "MIG/MAG stand-
ard synergic welding" process. The procedure for changing other setup parameters is iden-
tical.
Accessing the Setup menu
The control panel is now in the Setup menu for the "MIG/MAG standard synergic welding"
process - the last setup parameter that was selected is displayed.
Changing welding parameters
Exiting the Setup menu
Use the "Process" button to select the "MIG/MAG standard syn-
ergic welding" process
Press and hold the "Mode" button
Press the "Process" button
Release the "Mode" and "Process" buttons
Select the required setup parameter using the "Mode" and "Pro-
cess" buttons or the left-hand adjusting dial
1
2
3
4
5
Change the value of the setup parameter using the "Parameter
selection" buttons or the right-hand adjusting dial
6
Press and hold the "Mode" button
Press the "Process" button
Release the "Mode" and "Process" buttons
7
8
9
