13. Remote controller
13-1. Wireless remote controller (UTY-LNHUM/AR-RAH1U)
¢

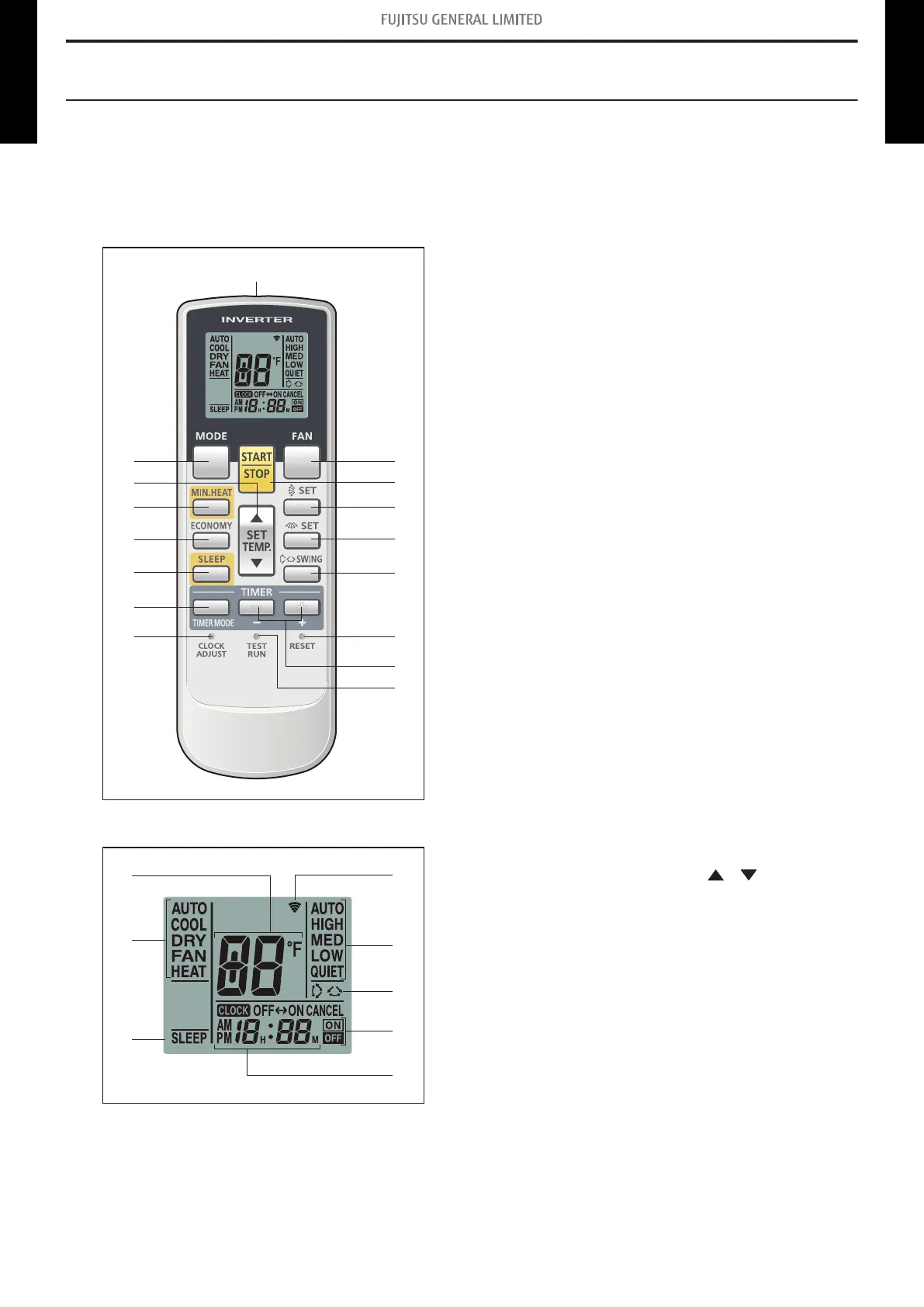

Overview
 UTY-LNHUM
o
p
j
k
l
n
m
b
d
e
a
f
i
g
h
c
Display panel
q
r
s
t
u
v
w
x
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the opera-
tion manual.
a
FAN button
Selects the fan speed (AUTO, HIGH, MED, LOW, and
QUIET).
b START/STOP button
Starts and stops operation.
c SET button (vertical)
Adjusts the vertical airflow direction.
d SET button (horizontal)
Adjusts the horizontal airflow direction.
e SWING button
Sets the automatic swing operation and selects swing
mode (Up/down, Left/right, Up/down/left/right, and Stop
swing).
f RESET button
Used when replacing batteries.
g Timer set (- / +) button
Sets the current time and on-off time.
h TEST RUN button
Only used for the initial test in the unit installation.
i CLOCK ADJUST button
Used for adjusting the clock.
j TIMER MODE button
Selects the timer mode (off timer, on timer, program timer,
and timer reset).
k SLEEP button
Pressed to select sleep timer.
l ECONOMY button
m MIN. HEAT button
n
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
o MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN,
and HEAT).
• Starts/ends the remote controller custom code (max. 4
types) change.
p Signal transmitter
q Signal transmit indicator
r Fan speed indicator
s Swing indicator
t Timer mode indicator
u Clock indicator
v Sleep indicator
w Operating mode indicator
x Temperature indicator
- 111 -
13-1. Wireless remote controller (UTY-LNHUM/AR-RAH1U) 13. Remote controller
