13-3. Wired remote controller (UTY-RNNUM)
¢

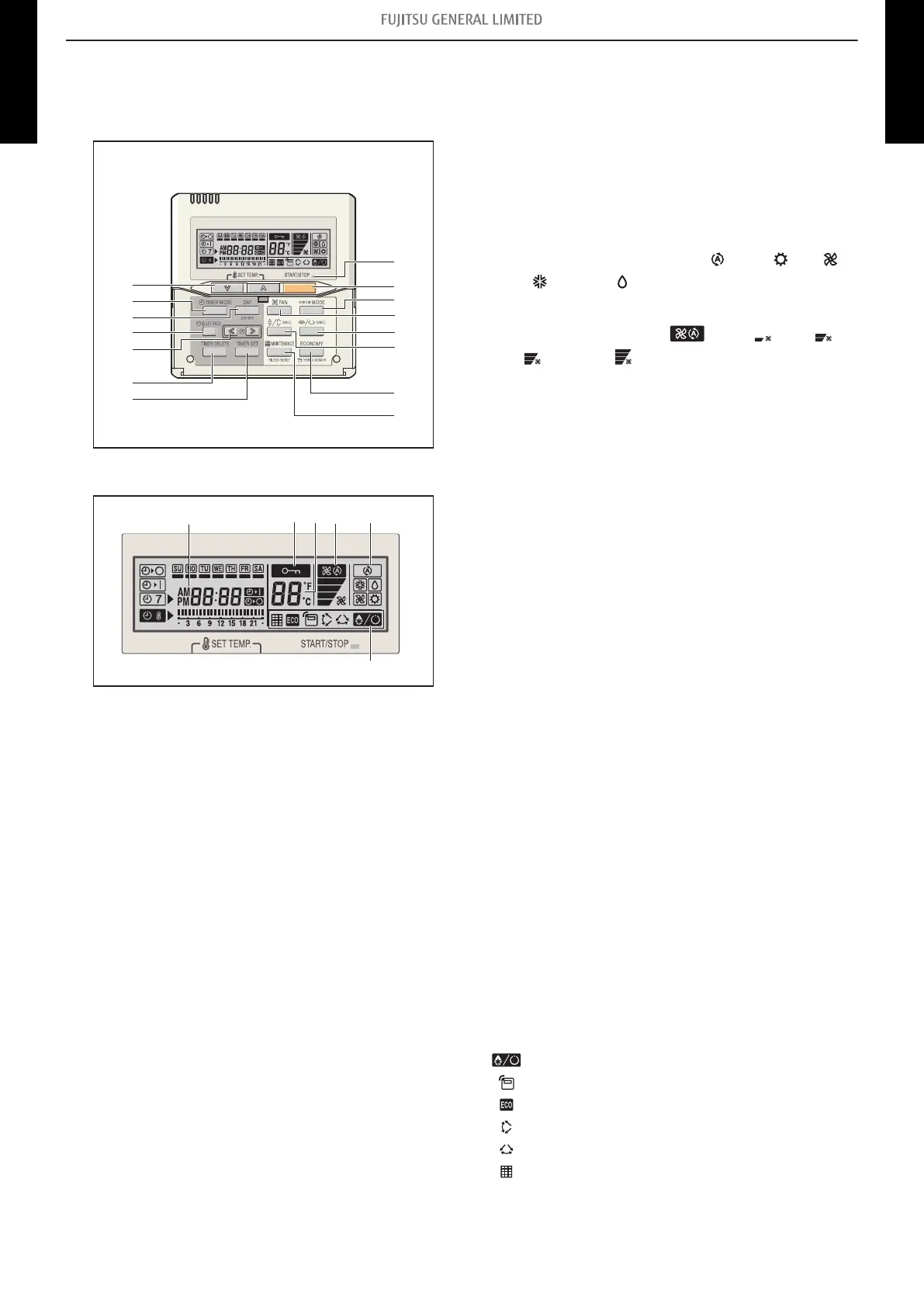

Overview
b
f
g
h
i
j
k
a
c
d
e
l
m
n
o
Display panel
pqrst
u
a START/STOP button
Starts and stops operation.
b SET TEMP. button
Selects the setting temperature.
c MODE button
Selects the operating mode (AUTO , HEAT ,FAN ,
COOL , and DRY ).
d FAN button
Selects the fan speed AUTO ,QUIET , LOW ,
MED , and HIGH ).
e ECONOMY (THERMO SENSOR) button
Turns the economy-efficient mode on and off.
f TIMER MODE (CLOCK ADJUST) button
Selects the timer mode (off timer, on timer, and
weekly timer). Sets the current time.
g DAY (DAY OFF) button
Temporarily cancels one day timer.
h SET BACK button
Selects the set back timer.
i Set time button
Pressed to set time.
j TIMER DELETE button
Deletes the weekly timer schedule.
k TIMER SET button
Sets the date, hour, minute, and on-off time.
l Vertical airflow direction and swing button
Push for 2 seconds to change the swing mode.
m Horizontal airflow direction and swing but-
ton
Push for 2 seconds to change the swing mode.
n FILTER RESET button
o Operation lamp
Lights during operation and when the timer is on.
p Timer and clock indicator
q Operation mode indicator
r Fan speed indicator
s Operation lock indicator
t Temperature indicator
u Function indicators
Defrost indicator
Thermo sensor indicator
Economy indicator
Vertical swing indicator
Horizontal swing indicator
Filter indicator
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the opera-
tion manual.
- 117 -
13-3. Wired remote controller (UTY-RNNUM) 13. Remote controller
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
