2.7.3
Additional charge
The charge in the outside units corresponds to the
maximum distances between the outside unit and
the hydraulic module defined in Figure 13.
If the distances are greater, an additional charge of
R410A is required.
The additional charge depends on the distance
between the outside unit and the hydraulic module
for each type of appliance (Fig. 23)
The additional charge of R410A must necessarily be
made by an approved refrigeration engineer.
•
Example for a heat pump model 155
An outside unit 32m away from the hydraulic module
will require an additional charge of:
Additional charge = (32 - 20) x 40 = 480 g
The charge must be introduced after creating the
vacuum and before the hydraulic module is filled with
gas, as follows:
-
Disconnect the vacuum pump (yellow hose) and
connect a bottle of R410A instead in the fluid
extraction position.
-
Open the bottle’s valve.
-
Bleed the yellow hose by loosening it slightly on the
manifold side.
-
Place the bottle on scales with a minimum accuracy
of 10g. Note the weight.
-
Carefully open the blue valve slightly and check the
valueshownonthescales.
-
As soon as the value displayed has dropped by the
value for the calculated additional charge, close the
bottle and disconnect it.
-
Then rapidly disconnect the hose connected to the
appliance.
-
Proceed to fill the hydraulic module with gas.
F
Warning
•
Only use R410A!
•
Only use tools suitable for R410A (set of
manometers).
•
Always charge in the fluid phase.
•
Never exceed the length or the maximum difference
in level.
22 Installation and operating manual “1350-EN”
Heat pump, Split, single service
Model 050 - Model 065 20 g of R410A per additional meter
Length of the connections 10 m 15 m 20 m
Additional charge none 100 g 200 g
Model 080 20 g of R410A per additional meter
Length of the connections 15 m 20 m 25 m 30 m
Additional charge none 100 g 200 g 300 g
Model 095 40 g of R410A per additional meter
Length of the connections 15 m 20 m 30 m 40 m
Additional charge none 200 g 600 g 1000 g
Model 128 50 g of R410A per additional meter
Length of the connections 20 m 30 m 40 m
Additional charge none 500 g 1000 g
Model 155 40 g of R410A per additional meter
Length of the connections 20 m 30 m 40 m
Additional charge none 400 g 800 g

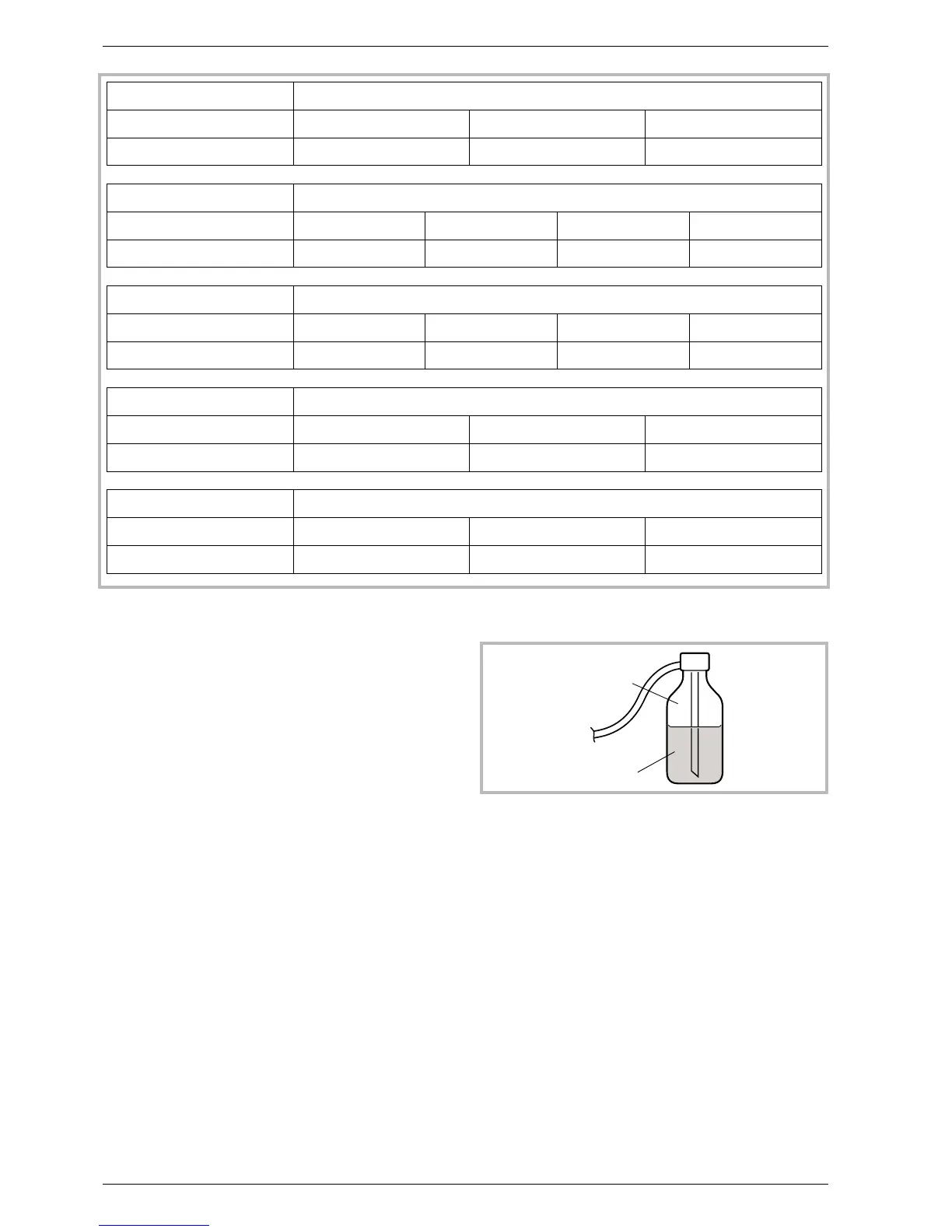

Figure 23 - Additional charge
R410A
Gas
Fluid
Figure 24 - Gas bottle R410A
