34 Installation and operating manual “1350-EN”
Heat pump, Split, single service
Line
Function Setting range
or display
Setting
increment
Basic
setting
Date and time
1 U Hours / minutes 00:00… 23:59 1
2 U Day / Month 01.01… 31.12 1
3 U Year 1900… 2099 1
5 S Start of Summer time (Day / Month) 01.01...31.12 1 25.03
6 S End of Winter time (Day / Month) 01.01...31.12 1 25.10
The change of hour will appear at 3:00 first Sunday after the regulated date
User interface
20 U Language English, ...
22 I Info Temporary | Permanent Temporary
26 S Operation locking On | Off Off
27 S Programming locking On | Off Off
28 S Direct setting Saving... ...automatic | ...with
confirmation
...with
confirmation
Hours / minutes
Day / Month
Year
Hours 1...24 h
Minutes 0...60 min
End user
1
2
3
Time and date
User interface
CC1 time programme
...
Press
for 3 seconds
OEM
Specialist
Start-up
End user
Hours / minutes
Day / Month
Year
StartofSummertime
End of Winter time
01.01...31.12
1
2
3
4
5
Date and time
User interface
CC1 time programme
...
Brief
press
Basic
display

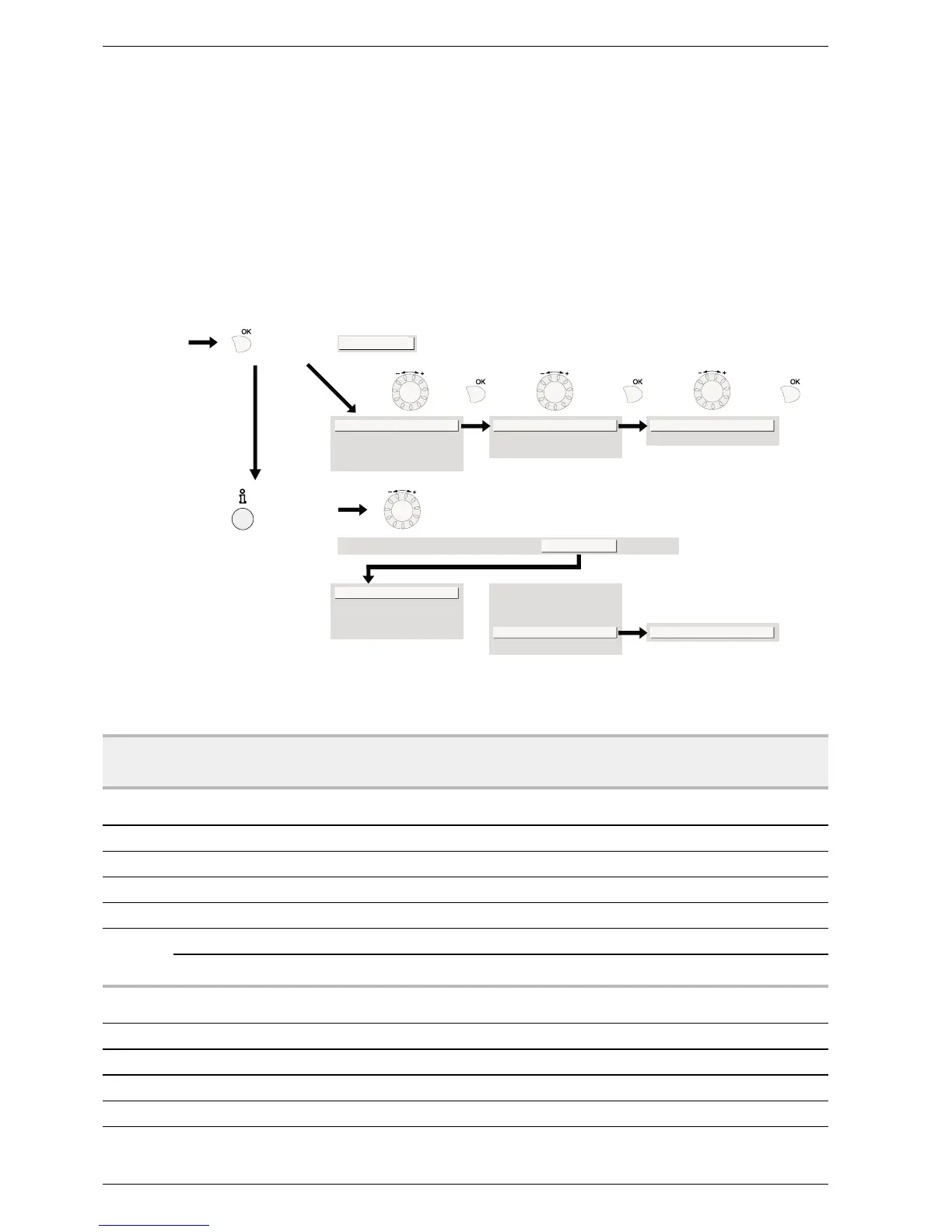

3.6 Parametering the setting
3.6.1 General
Only the parameters accessible to levels:
U End user
I Start-up
S Specialist
Are described in this document.
The access levels are specified in the second
column of the table by means of the letters U, I and S.
The OEM parameters are not described and require
a manufacturer’s access code.
3.6.2
Setting parameters
-
Choose the desired level.
-
Scroll the menu list.
-
Choose the desired menu.
-
Scroll the function lines.
-
Choose the desired line.
-
Adjust the parameter
-
Check the setting by pressing OK
-
To return the menu, press ESC
If no setting is made for 8 minutes, the screen returns
automatically to the basic display.
3.6.3
List of function lines
(settings, diagnosis, status)
