Device Ports
Your LifeBook P770 Series notebook and the optional Port Replicator (see “Port Replicator” on page 85)
come equipped with multiple Device Ports to which you can connect an external device including: disk
drives, keyboards, modems, printers, etc.
Internal LAN (RJ-45) Jack
Docking Port
The docking port is used for the connection of your system to an optional port replicator. In order to
connect your system to one of these devices follow the instructions that came with your port replicator.
(See “Port Replicator” on page 85)
The internal LAN (RJ-45) jack is used for an
internal 10/100/1000 BaseTx Ethernet connection.
You will need to configure your notebook to work
with your particular network. (Please refer to your
network administrator for information on your
network configuration.) To connect the LAN cable
follow these easy steps:
1 Align the connector with the jack opening.
2 Push the connector into the jack until it is seated.
3 Plug the other end of the cable into a LAN outlet.

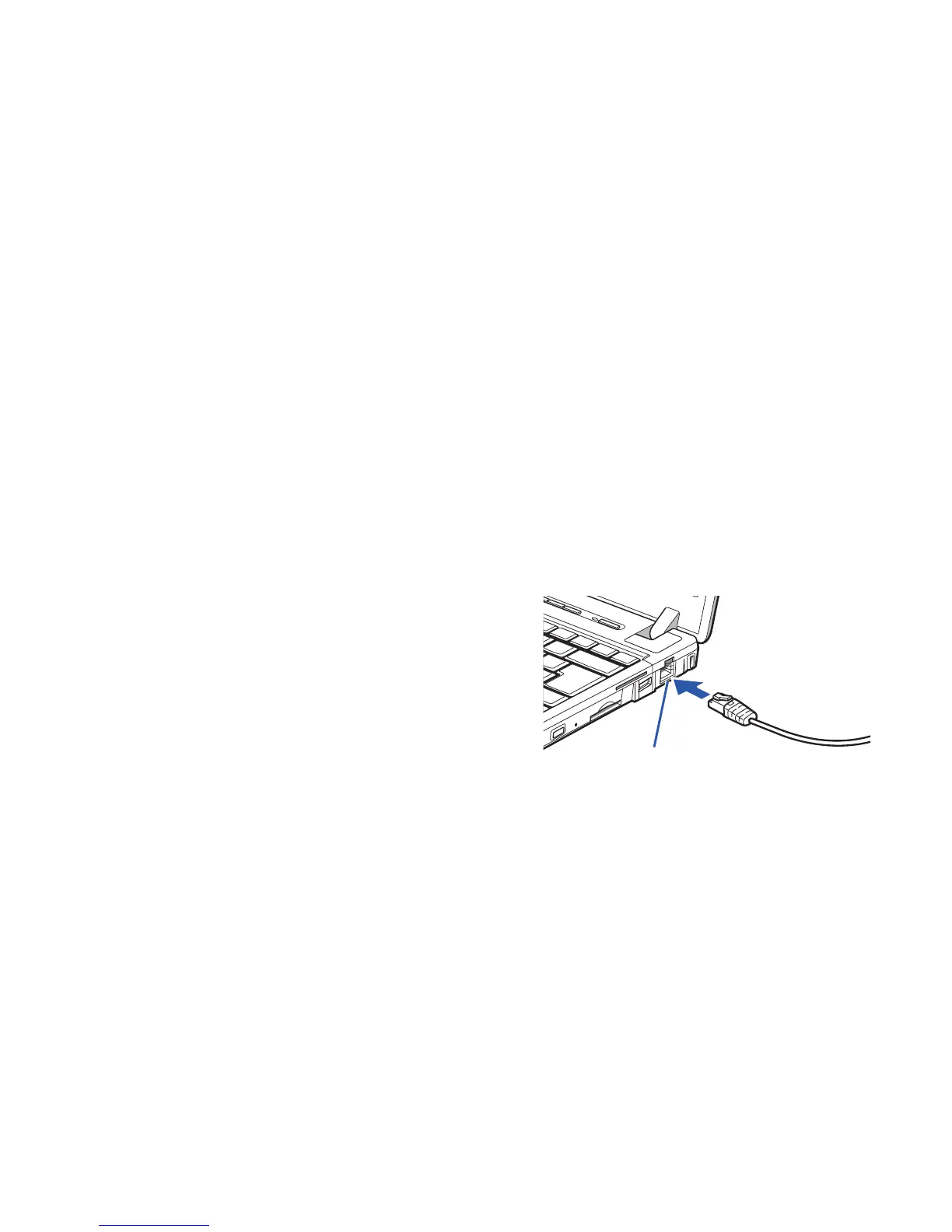

Figure 31. Connecting the LAN
