87
- Port Replicator
Attaching Port Replicator
To attach the Port Replicator, align the Port Replicator connector on the bottom of your notebook with the
connector on the Port Replicator and push the corners down simultaneously. (Figure 36)
Detaching Port Replicator
To detach the Port Replicator:
1 Pull the Port Replicator’s release latch away from the Port Replicator to release it from your notebook.
(Figure 37)
2 Pull the notebook away from the Port Replicator to detach it from your system. (Figure 38)

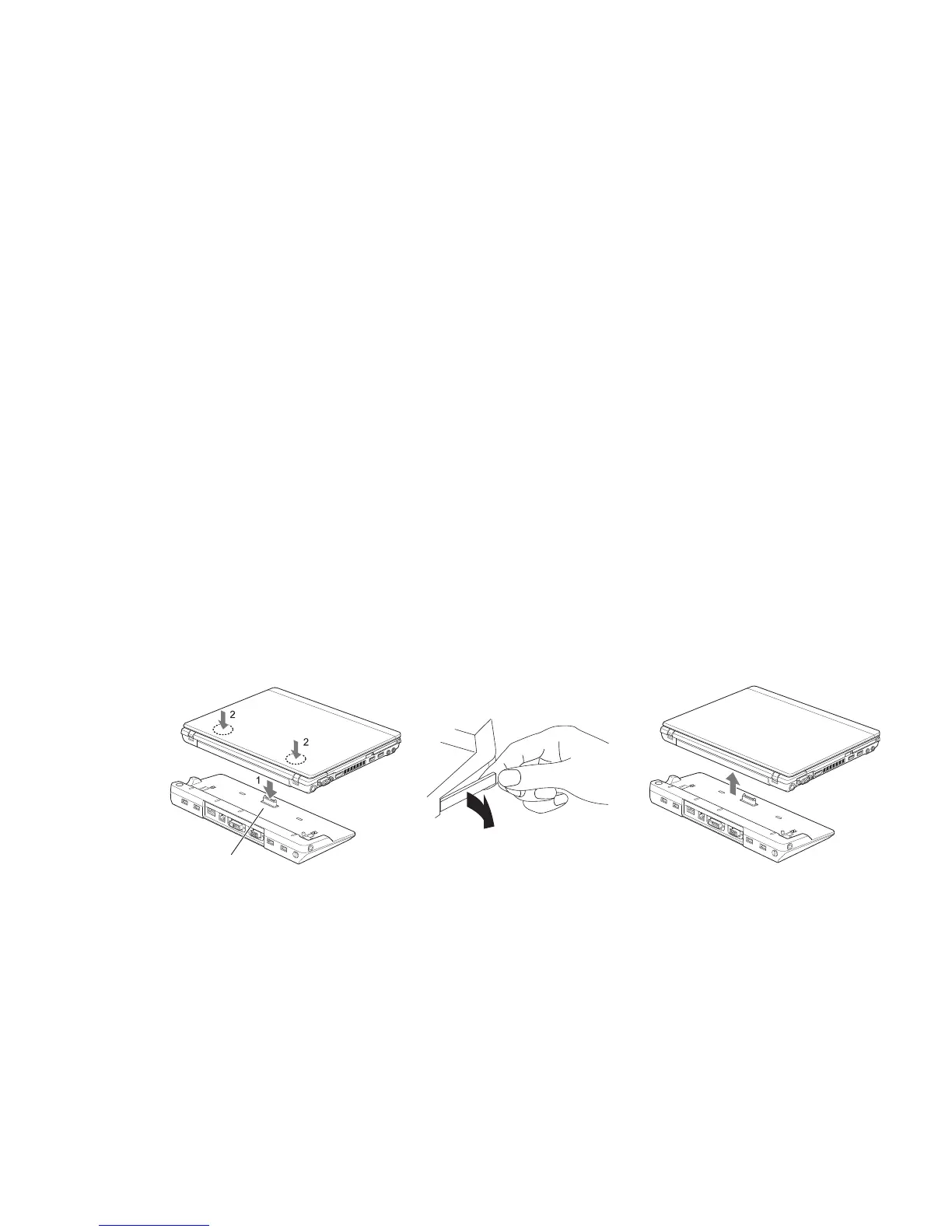

Figure 36. Attaching Figure 37. Unlatching Figure 38. Removing
