6.1.1.4 Indicators on the hot-plug HDD/SSD/PCIe SSD modules

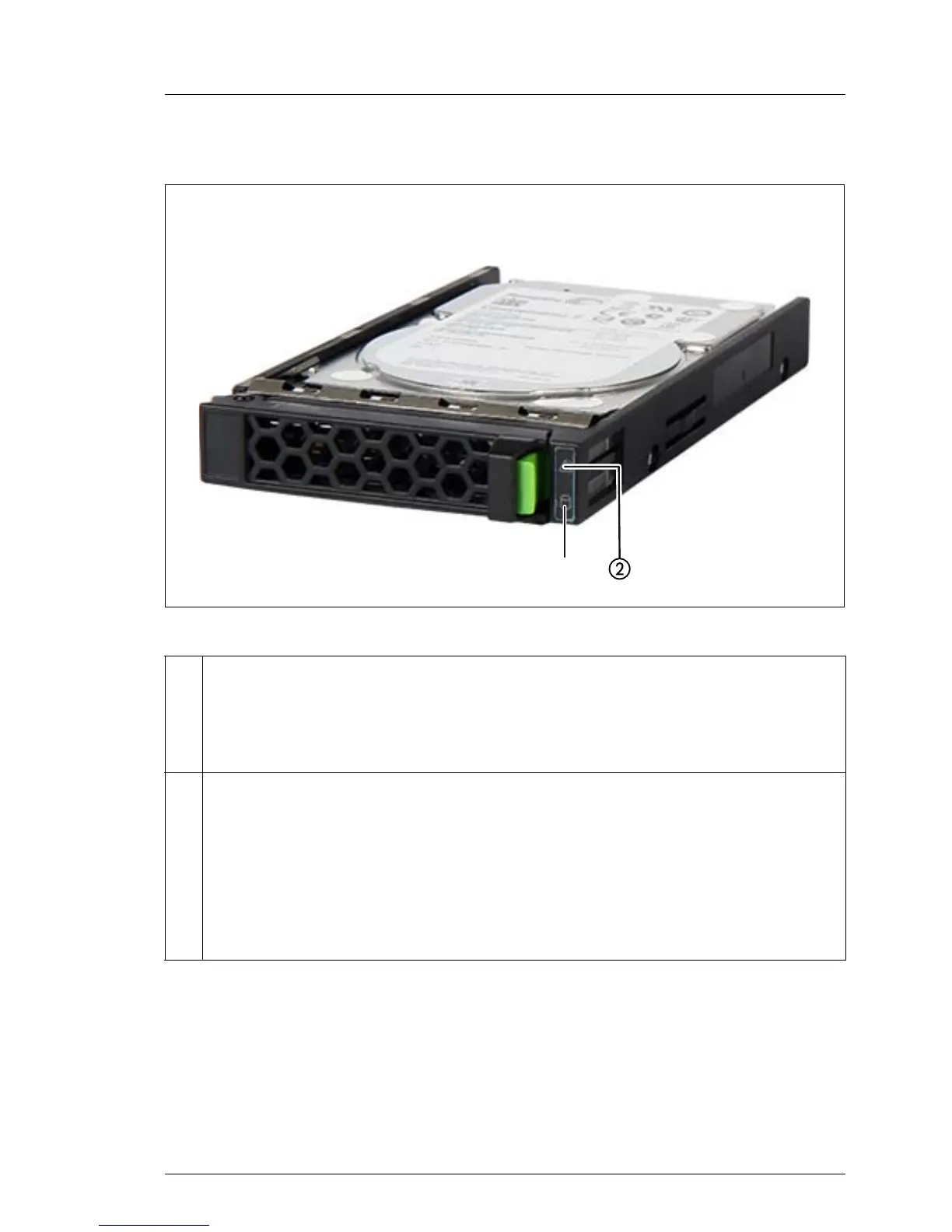

Figure 9: Indicators on a hot-plug HDD/SSD/PCIe SSD module
If a hard disk drive or solid state disk continuously indicates an error, the drive
should be replaced as soon as possible. This can be done during operation.
1 HDD/SSD BUSY (green)
– Lights up: HDD/SSD/PCIe SSD in active phase (drive active, drive
being accessed)
– Does not light: HDD/SSD/PCIe SSD inactive (drive inactive)
2 HDD/SSD FAULT (orange)
– Does not light: no HDD/SSD/PCIe SSD error
– Lights up: HDD/SSD/PCIe SSD Faulty or Rebuild Stopped (drive
defective/needs replacing, a rebuild process was stopped or the
HDD/SSD module is not correctly inserted)
– Slow flashing: HDD/SSD/PCIe SSD Rebuild (the data is being
restored after changing a drive)
