6.1.2.3 Indicators on the hot-plug power supply units

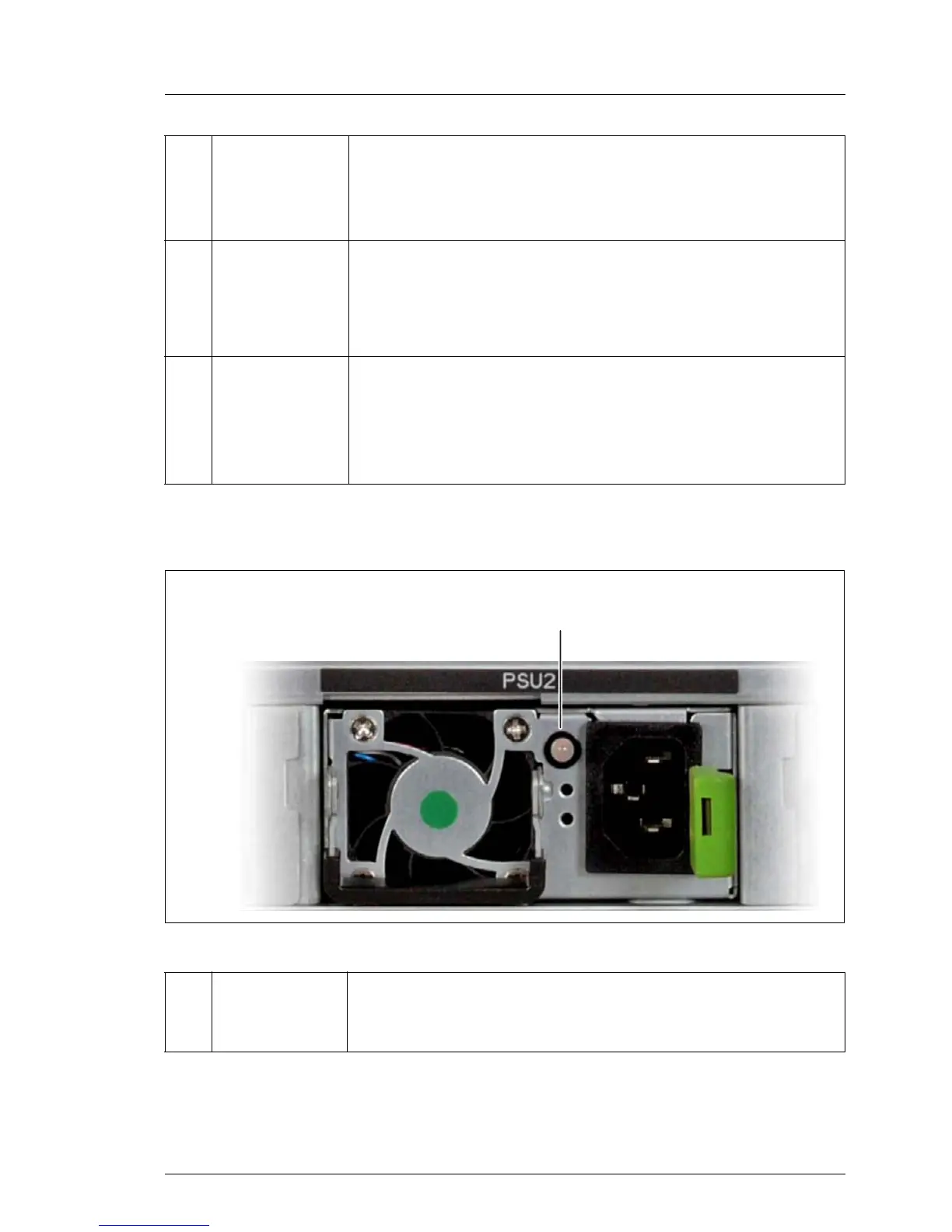

Figure 12: Indicators on the power supply units
4LAN
link/transfer
(management
LAN)
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
5 LAN speed
(Optional
Fibre glass
LAN)
Steady blue signal in the event of a LAN transfer rate of
10 Gbit/s.
Remains dark in the event of a LAN transfer rate of
1 Gbit/s.
6LAN
link/transfer
(Optional
Fibre glass
LAN)
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
1 PSU failure
and warnings
indicator
Lights up orange in case of a critical event (PSU
shutdown).
햲
