7.2 Replacing the Pad ASSY
Replace the Pad ASSY following the procedure below.
1. Remove the documents on the paper chute cover.
2. Pull the cover open lever to open the ADF cover.
3. Remove the Pad ASSY.

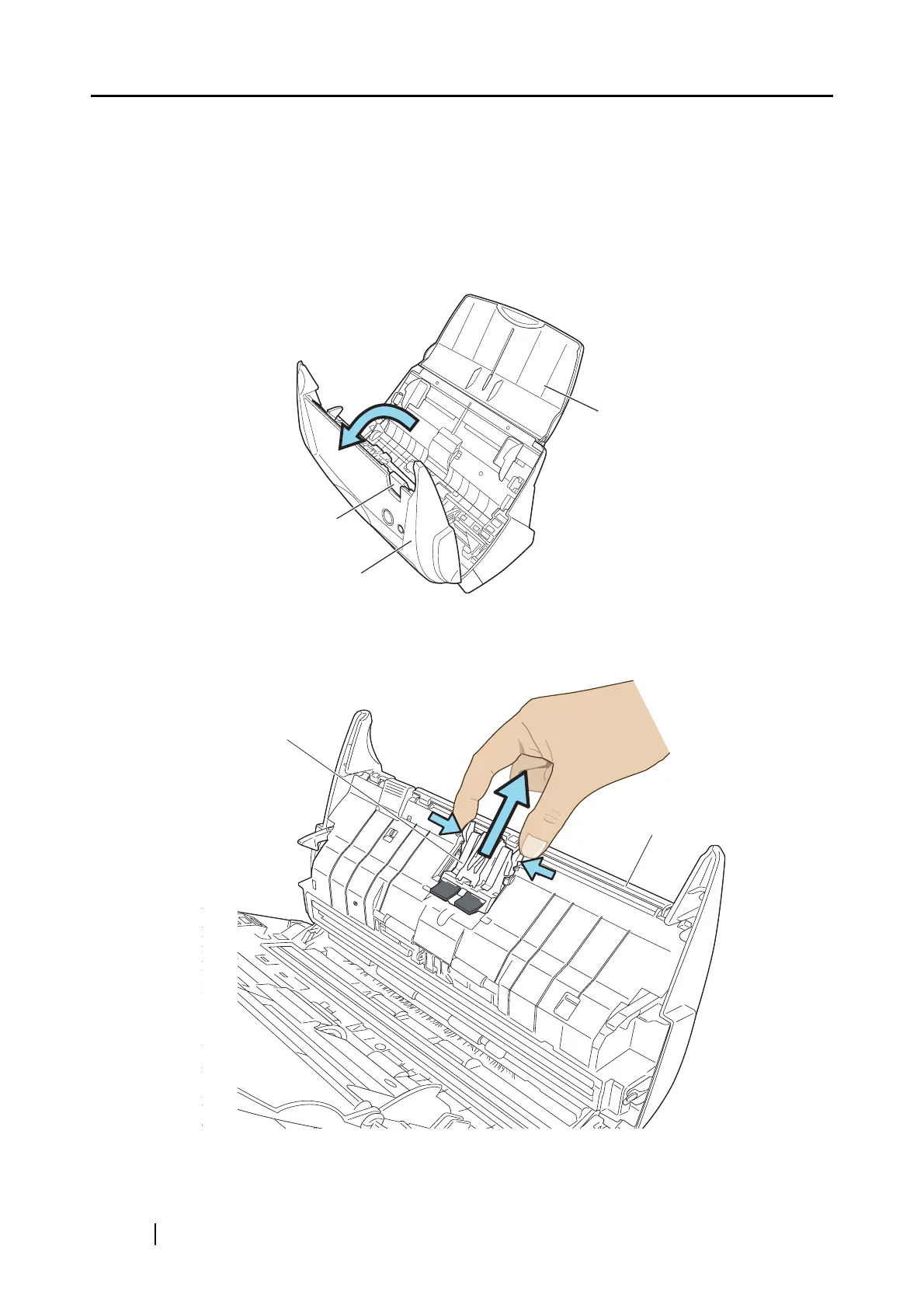

Pinch both ends of the Pad ASSY and pull it out as shown below.
ADF cover
Cover open lever
Paper chute cover
ADF cover
Pad ASSY
