92
7.3
Replacing the Pick Roller

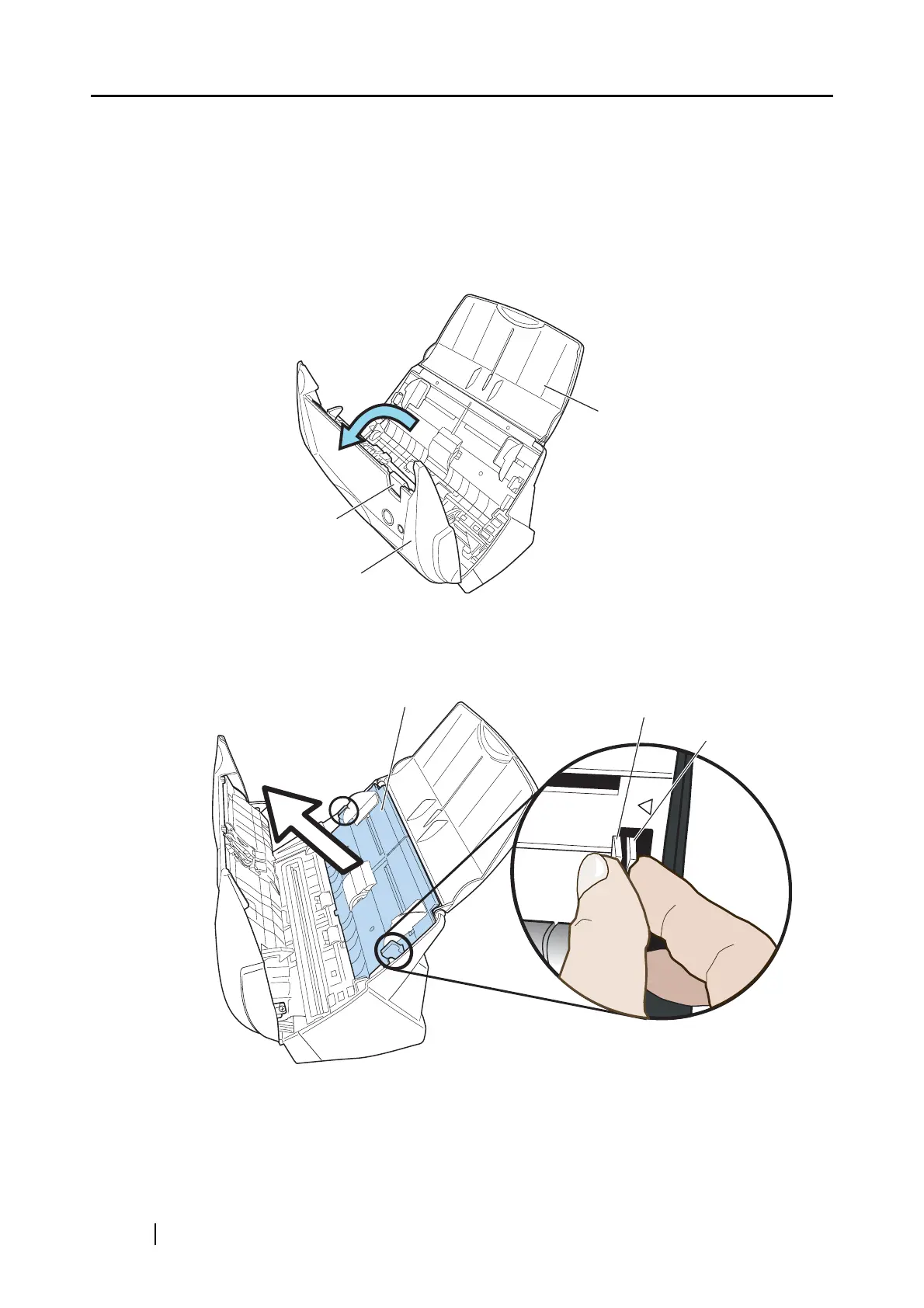

Replace the Pick roller following the procedure below.
1.
Remove the documents on
the paper chute cover.
2.
Open the ADF while pulling the cover open le
ver.
3.
Remove the sheet guide.
Pinch the handle and claw together o
n both
sides of the sheet guide and take it out.
ADF cover
Cover open le
ver
Paper chute cover
Handle
Sheet guide
Claw
107
109
