22
Connectors and peripheral interfaces on the
Stylistic Tablet PC allow the connection of a
variety of devices. Specific locations are
illustrated in Figures 1-2 through 1-5.
CONNECTORS AND PERIPHERAL INTERFACES

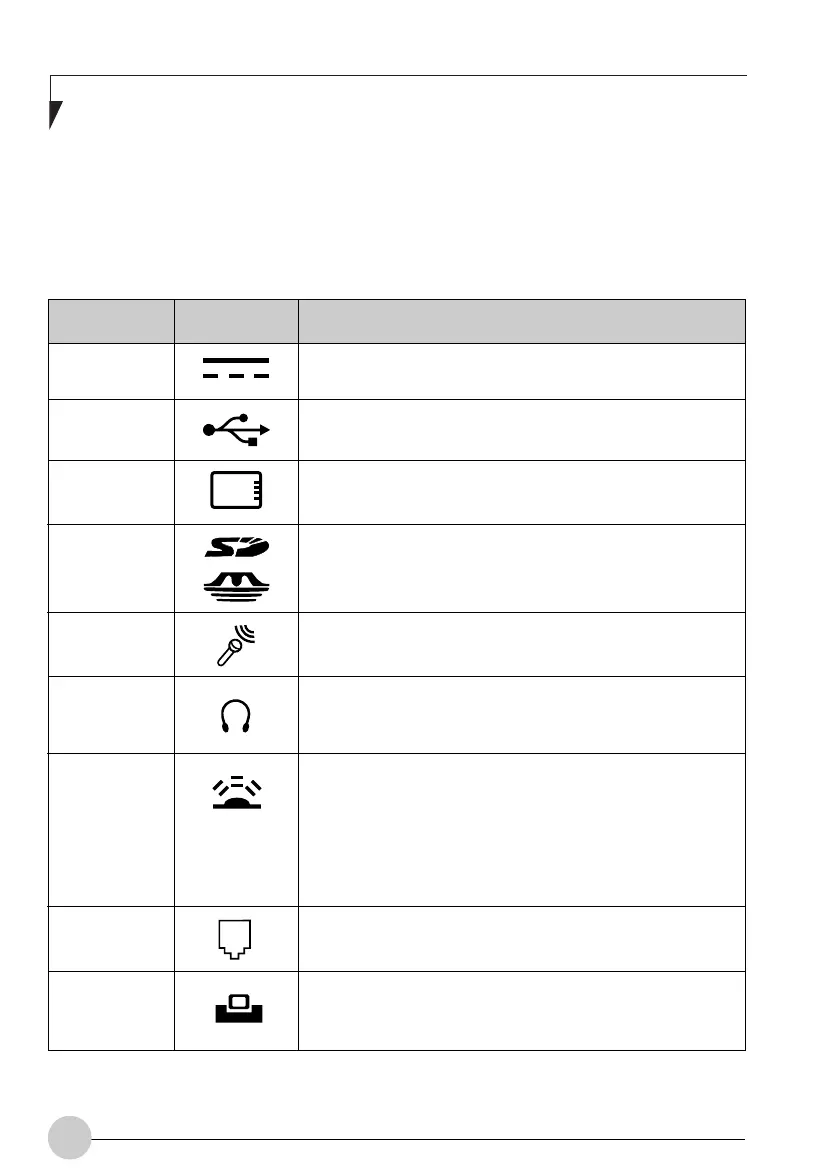

Table 1-7 provides a description of each
peripheral connector on the Stylistic Tablet PC.
Each of the illustrated icons is either molded
into or printed on the Tablet PC chassis.
DC input
connect
USB Port
PCMCIA
Card slot
SD Card slot
Microphone
jack
Headphone
jack
IrDA/FIR port
Modem
Tablet Dock
port
Connect an external power source such as the AC adapter.
Connect Universal Serial Bus 2.0 compliant devices to the
Tablet PC.
Install a Type II PC Card.
Install a Secure Digital (SD) Card or a Memory Stick.
Connect an external microphone. The internal microphone
is disabled when you plug in an external microphone.
Connect stereo headphones or powered external speakers.
The internal speaker is disabled when you plug in external
headphones or powered speakers.
An infrared transceiver built into the Tablet PC allows you to
communicate with other devices that are compliant with the
IrDA Standard Rev. 1.1. Effective range for infrared
communication is about 3 feet, and within 15 degrees off
center. A clear line-of-sight path must exist between the
IrDA port on the Tablet PC and the IrDA transceiver on the
other device.
Connect a telephone line to the optional internal modem
using a standard RJ-11 telephone plug.
Connect the Stylistic Tablet Dock or other approved docking
device. Refer to documentation accompanying the docking
device for more information.
Tablet PC
Icon
Purpose
Connect/
Peripheral
Ocampa1 (12-24) 11/12/03, 12:25 PM22
