How to install the optional mounting bracket
The optional mounting bracket lets you fasten the antenna unit to a mast on a sailboat.
Mounting bracket kit
Type: OP03-92
Code No.: 008-445-070
Assemble the mounting bracket and fasten the mounting bracket to a mast. Fasten the antenna
unit to the bracket.
How to assemble and install the optional mounting bracket
Table Contents of mounting bracket kit
Type Code Qty
Hex head bolt M4x12 000-162-956-10 4
Hex head bolt M8x20 000-162-955-10 8
Mounting plate 03-018-9001-0 100-206-740-10 1
Support plate (1) 03-018-9005-0 100-206-780-10 1
Support plate (2) 03-018-9006-0 100-206-790-10 1
Bracket (1) 03-018-9002-1 100-206-751-10 1
Bracket (2) 03-018-9003-1 100-206-761-10 1
Fixing plate 03-018-9004-1 100-206-771-10 2
Support plate

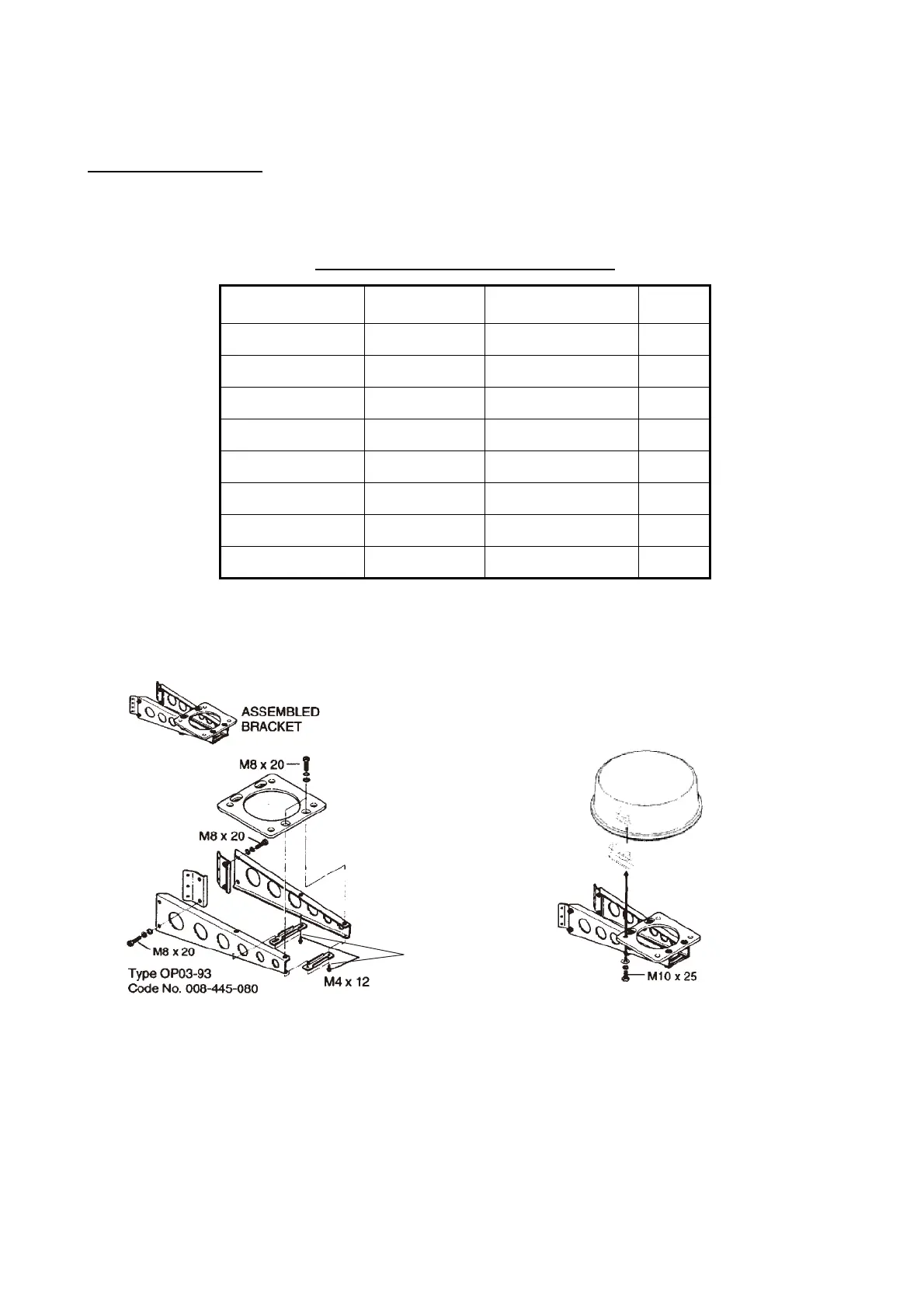

(A) Assembling the mounting bracket
(B) Fastening antenna to mounting bracket
