1-15
How to connect the signal cable
The signal cable runs from the display unit to the antenna unit. To reduce the electrical interfer-
ence, do not run the signal cable near other electrical equipment. And do not run the cable in par-
allel to power cables. Put the cable through the hole and apply the sealing compound around the
hole for waterproofing.

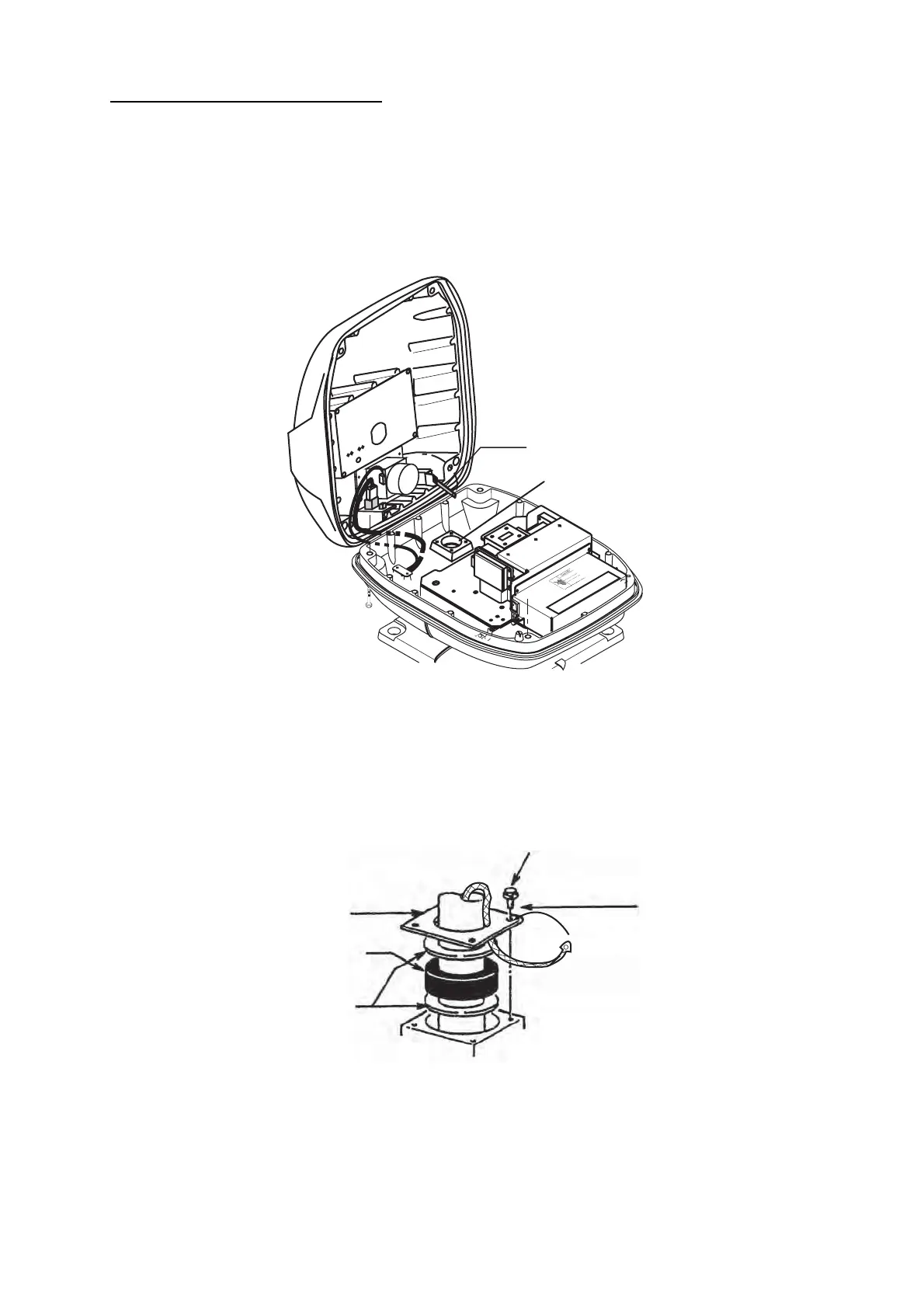

1. Loosen four bolts, open the antenna cover, and set the stay.
Antenna unit chassis, cover opened
2. Loosen the cable gland assembly (plate, gasket, flat washer).
3. Put the signal cable with the connector through the bottom of the antenna unit chassis. Put the
cable through the gland assembly as shown below.
How to put the signal cable through the cable gland assembly
4. Fasten the crimp-on lug of the shield wire to one of the four fixing bolts of the cable gland
assembly.
Stay
Cable gland assy.
Bolt
Plate
Bolt
4 - M4 x 16
Gasket
Flat
washer
Shield wire
To Next Page
