Furuno ECDIS FMD-3200 User Manual

2-1
2. WIRING

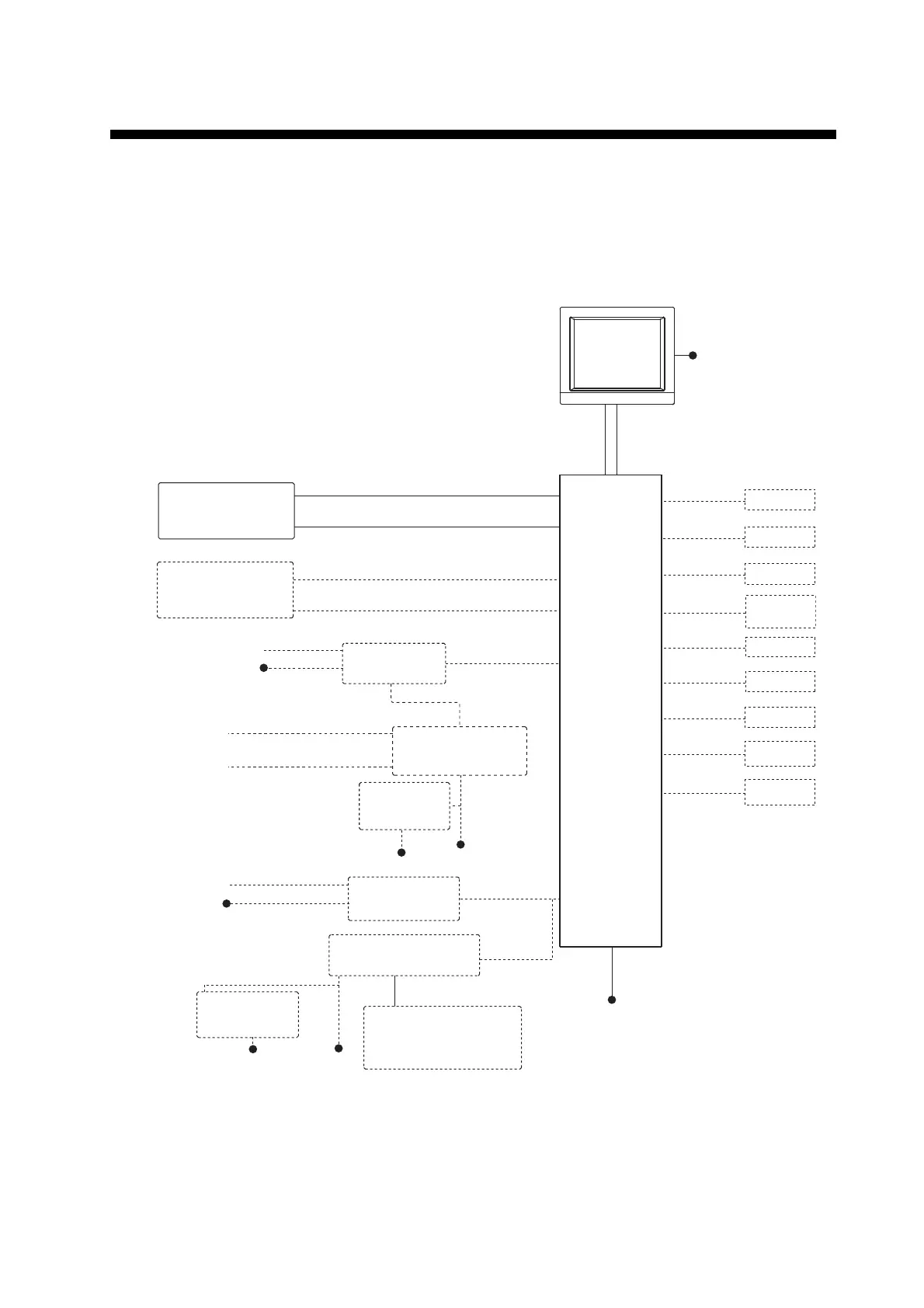

The illustration on this page shows the general connection between FMD-3200/3300
and external equipment. For detailed information, see the interconnection diagram.
Many of the cables mentioned are JIS (Japan Industry Standard) cables. If not avail-
able locally, use the equivalent. See the cable guide in the Appendix for how to select
equivalent cables. For other monitor unit wiring, see the applicable operator’s manual.
*: Use Switching Hub HUB-100 for IEC61162-450 Ed.1 compliant network.
Note: If the MU-201, MU-231CE or a Hatteland Technology monitor is connected, the
DSUB9P-X2-A-L5M/L10M cable (available as an optional extra) for brilliance control
is required to connect.
Processor Unit
EC-3000
Control Unit
RCU-024 or RCU-26
Control Unit
RCU-024 or RCU-026
100-115/
220-230 VAC
TS-20-071-1 cable
TS-20-071-1 cable
(Max. 2)
IEC60320-C13-L5M, 5 m
Intelligent HUB
HUB-3000*
DTI-C5E350VCV,
10/20/30 m
DPYC-1.5
100-230 VAC
STP (CAT5) cable
or
Sensor Adapter
MC-3000S (Serial IN/OUT)
-MC-3010A (ANALOG)
-MC-3020D (Digital IN)
-MC-3030D (Digital OUT)
Sensor Adapter
MC1.5-W-L cable,
0.6/1/2/3 m
24 VDC
Sensor
Adapter
Intelligent HUB
HUB-3000
DTI-C5E350 VCV,
10/20/30 m
100-230 VAC
ALARM SYSTEM
DPYC-1.5
DPYC-1.5
Radar Connection Box
RCB-002
MOD-WPAS0001-030+, 3m
MJ-A10SPF0020A,
5/10/20/30 m
MJ-A10SPF0020A,
5/10/20/30 m
External Radar
External Radar
24 VDC
AC/DC Power
Supply Unit
PR-240/241
100-115/
200-230 VAC
AIS
TTYCS-4 or
TTYCSLA-4
GYRO1
GYRO2
TTYCS-4 or
TTYCSLA-4
AUTOPILOT
(TCS)
LOG
GPS1
GPS2
ECHO
SOUNDER
ALARM
SYSTEM
TTYCS-10 or
TTYCSLA-10
TTYCS-4 or
TTYCSLA-4
TTYCS-4 or
TTYCSLA-4
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
RCU-024: TET-16-045A cable
RCU-026: 6TPSH-XH12X2-LxxSP2 cable
(5m, option: 10/20/30 m)
RCU-024: TET-16-045A cable
RCU-026: 6TPSH-XH12X2-LxxSP2 cable
(5m, option: 10/20/30 m)
DSUB9P-X2 cable
( For MU-190/231/270W, 5 m, option: 10 m)
DSUB9P-X2-A cable (see Note, option: 5/10 m)
100-230 VAC
DVI-D/D S-LINK cable
(5 m, option: 10 m*
2
)
Monitor Unit*
1
Max. three monitor
units can be connected.
*
2
: MU-190 only
*
1
: For the monitors available
for connection with the ECDIS,
see page iv.
AC/DC Power
Supply Unit
PR-240/241
FR-FTPC-CY,
10/20/30 m
100-115/200-230 VAC
