2. WIRING
2-37

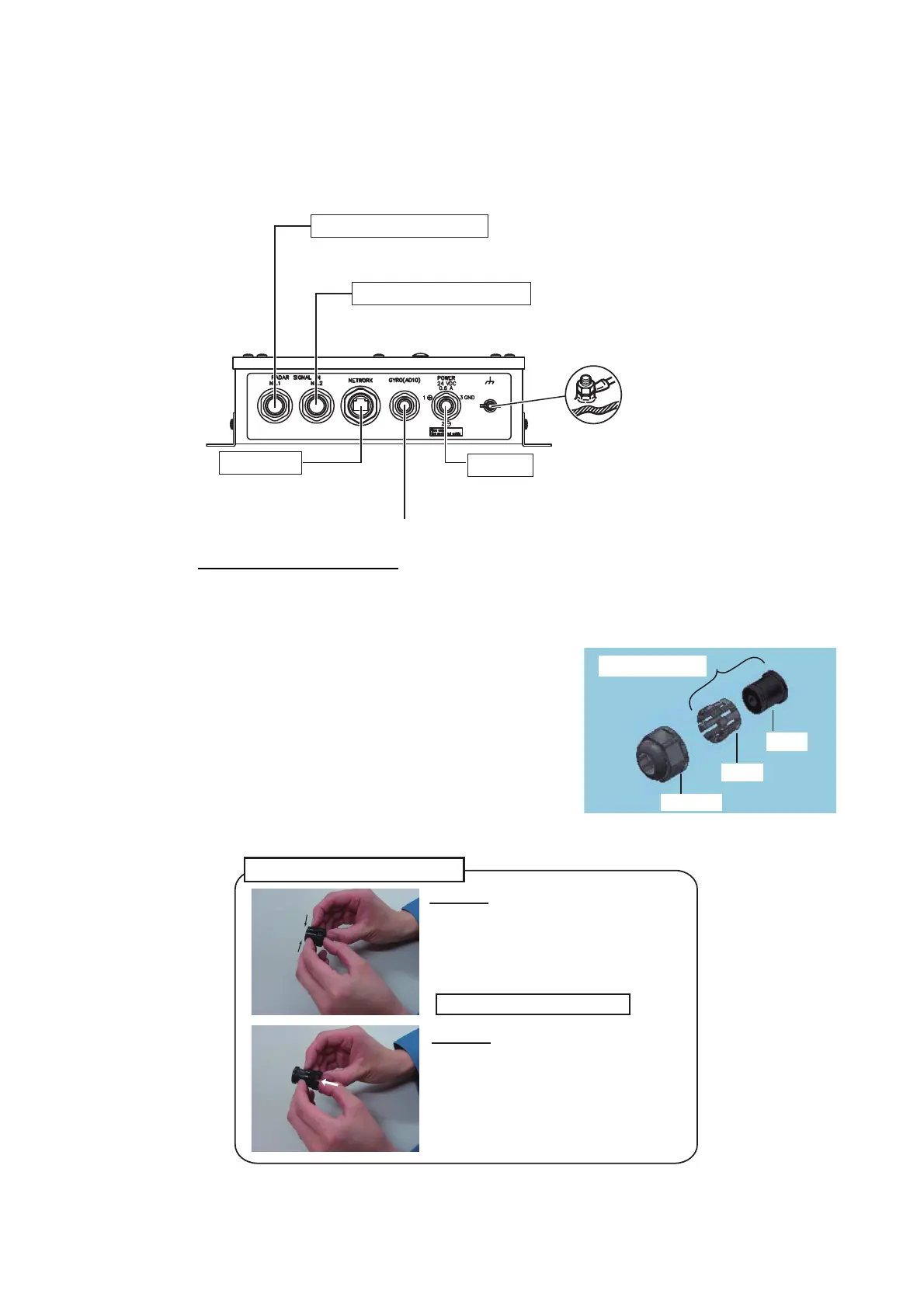

2.6 Radar Connection Box (option)
The RCB-002 is capable of connecting the FMD-3×00 with up to two external radar
systems. Referring to the figure below, connect the respective equipment to the RCB-
002.
Connecting LAN cables
When connecting LAN cables (MOD-WPAS0001-030+) to the RCB-002, use the fol-
lowing procedure.
1. Unfasten and remove the sealing nut from the
NETWORK port on the RCB-002, then re-
move the seal assembly. See the right figure
for reference.
2. Dismantle the seal assembly as shown below.
RADAR SIGNAL IN No.1
RADAR SIGNAL IN No.2
NETWORK
POWER
To external radar
MJ-A10SPF0020A (5m, 10 m, 20 m, 30 m) cable
To external radar
MJ-A10SPF0020A (5m, 10 m, 20 m, 30 m) cable
To HUB-3000
MOD-WPAS0001-030+
(3 m) cable
To PR-240
MJ-A3SPF cable
To ship`s ground
Ground cable, IV-1.25sq.
Unused
Seal assembly
Seal
Seal nut
Claw
Dismantling the seal assembly
STEP 1:
Hold the larger diameter end of the
seal assembly with both thumbs
while placing index fingernails
between the seal and the claw.
Use caution to avoid injury.
STEP 2:
Using your thumbs, gently push the
seal out of the claw.
To Next Page
