5

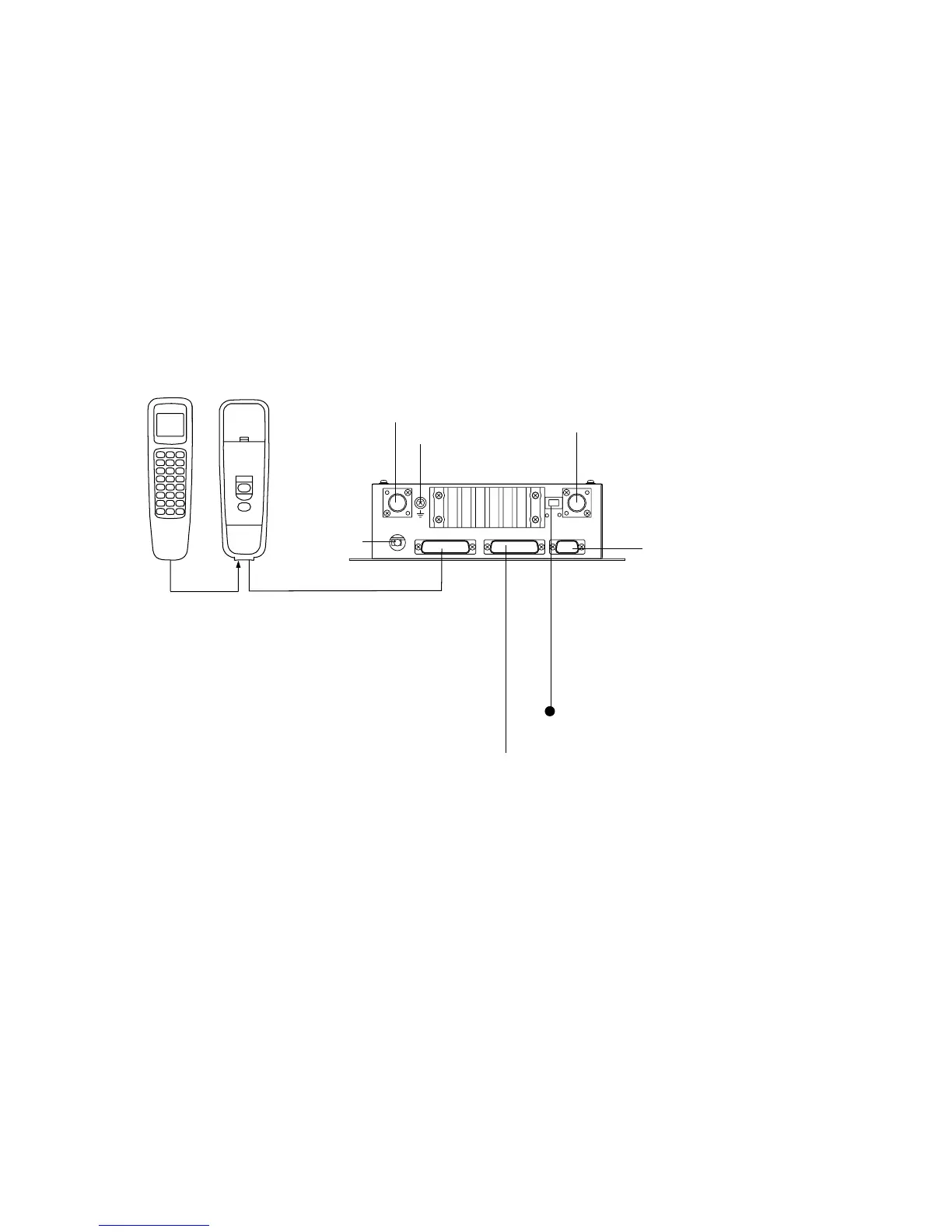

1.2 Transceiver Connections
Ship's mains
RB-2721A
HS-2721
FM-2721
Transceiver Unit
CH70
12 VDC
REMOTE 2
IEC61162-1(NMEA)
RX ANT
ANT
SPKR REMOTE 1
Remote 1
Connect the handset bracket.
12VDC
Connect the power cable
(05S0388, option).
Remote 2
Connect the optional handset bracket.
CH70 RX ANT
Connect the optional CH70 RX antenna.
IEC61162-1 (NMEA)
Connect the navigator.
SPKR
Connect the
optional
loudspeaker.
ANT
Connect the optional antenna.
Ground
