9
1.3 Handset Connection
Take appropriate measures to ensure water does not leak through hole in bulkhead made for handset cable.
10P cable between the hanger and transceiver unit
10P cable (supplied, 5 m) should be fabricated as below.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
BRW RED ORG YEL
ORG/
WHT
GRN/
WHT
BLU/
WHT
YEL/
BLK
WHT
(B)
BLK
(B)
GRN BLU PPL WHT BLK Drain
Push the appropriate switch down
to insert/pull out the cable.
Drain wire should be covered by
vinyl sheath, or soldered to the
shield in the cable to be grounded.
Not used cables: Cutt off.

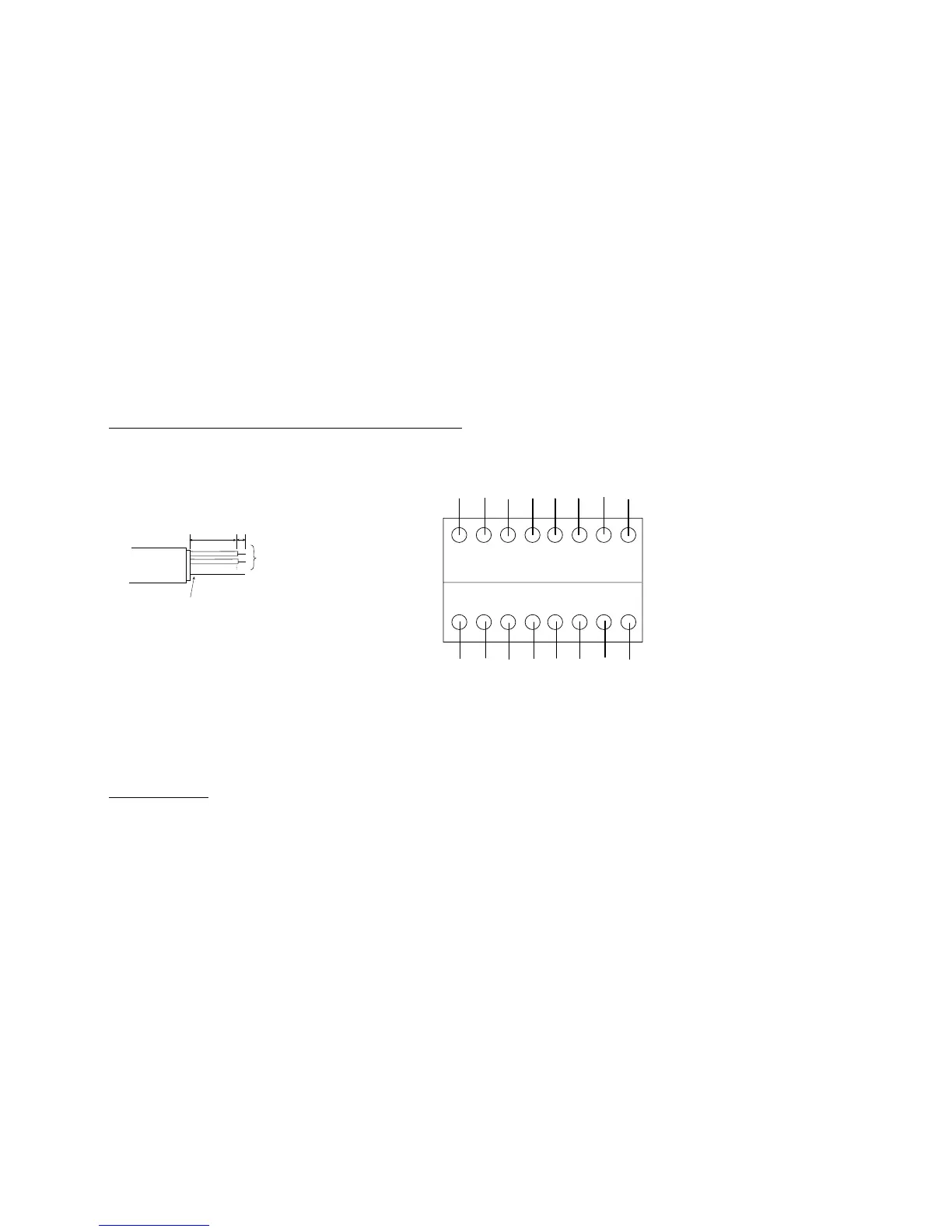

Terminal Block Arrangement
Anticorrosive
Sheath
Drain wire
80
6
Connect to the appropriate
terminal block in the hanger.
Connect to the terminal block #16
in the hanger.
Cable Fablication
Pass the above cable through the entrance hole at the back of the hanger, and attach to the appropriate block.
Cover the hole with soft putty from the inside of the hanger.
Handset cable
Connect to the connector at the bottom of the hanger.
To Next Page
