4.5 Jumper Setting
4-31
4.5.2 Select Wing MIC
You can select Carbon MIC or Dynamic MIC depending on Wing MIC type.
The factory setting is Dynamic MIC.
Table 4.5.1 W. MIC setting
J5 Setting MIC Input Level Remarks
Dynamic MIC: HS-6000FZ5 1 to 2 -48 dBm/600 ohm Factory default
Carbon MIC: HS-6000FZ6 2 to 3 0 dBm/40 ohm

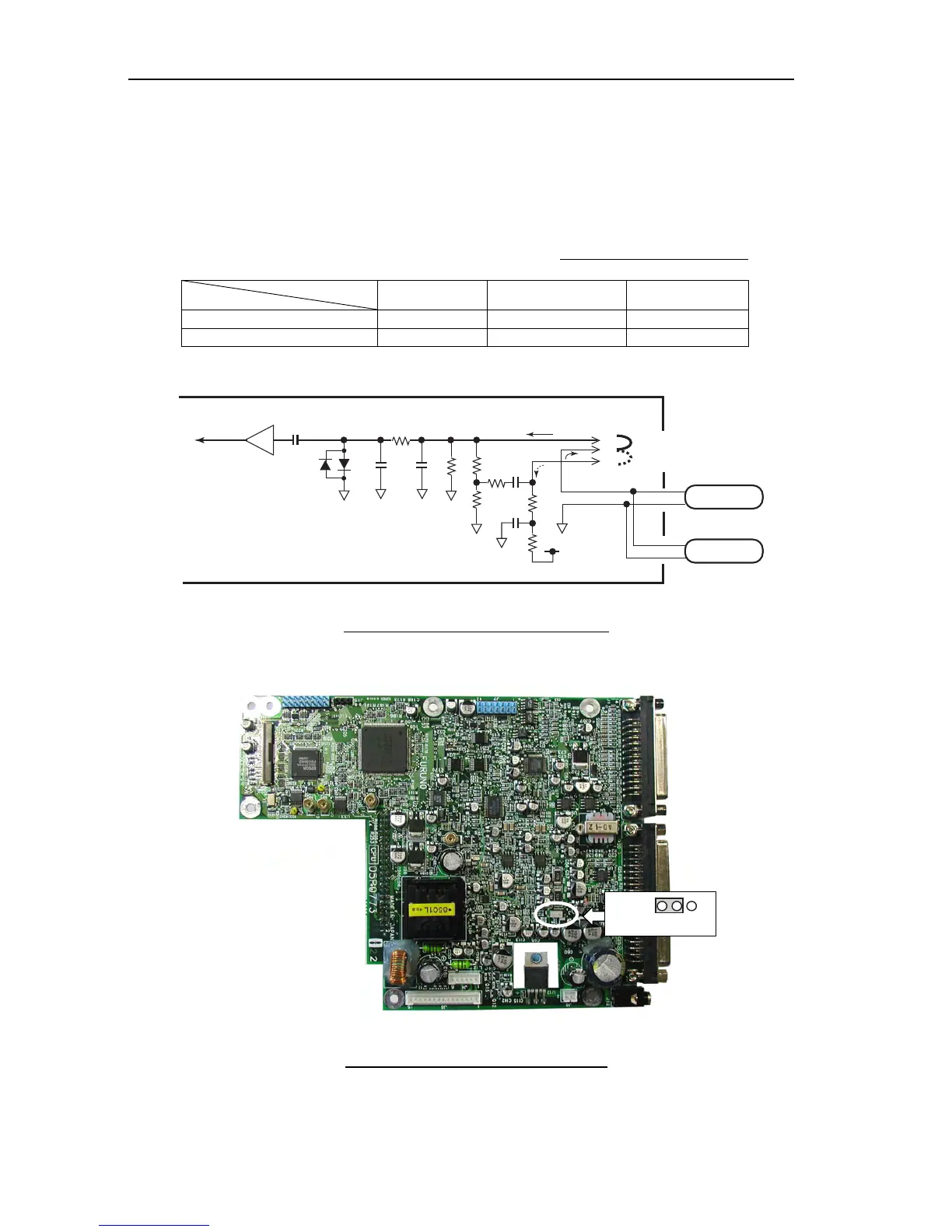

Fig. 4.5.5 CPU Board, W. MIC Circuit
Fig. 4.5.6 CPU Board, Location of J5
5V
Wing MIC-1
Wing MIC-2
R84
47
R83
47
C91
C89
10u
1u
1u
C90
R110
10k
R111
10k
R108
820
R113
680
R106
1k
CR17
C111
C110
1000p
1000p
U42
W. MIC(H)
W. MIC(C)
1
2
3
J5
W. HANDSET
Dynamic MIC
Carbon MIC
CPU: 05P0773
JP5
13
To Next Page
