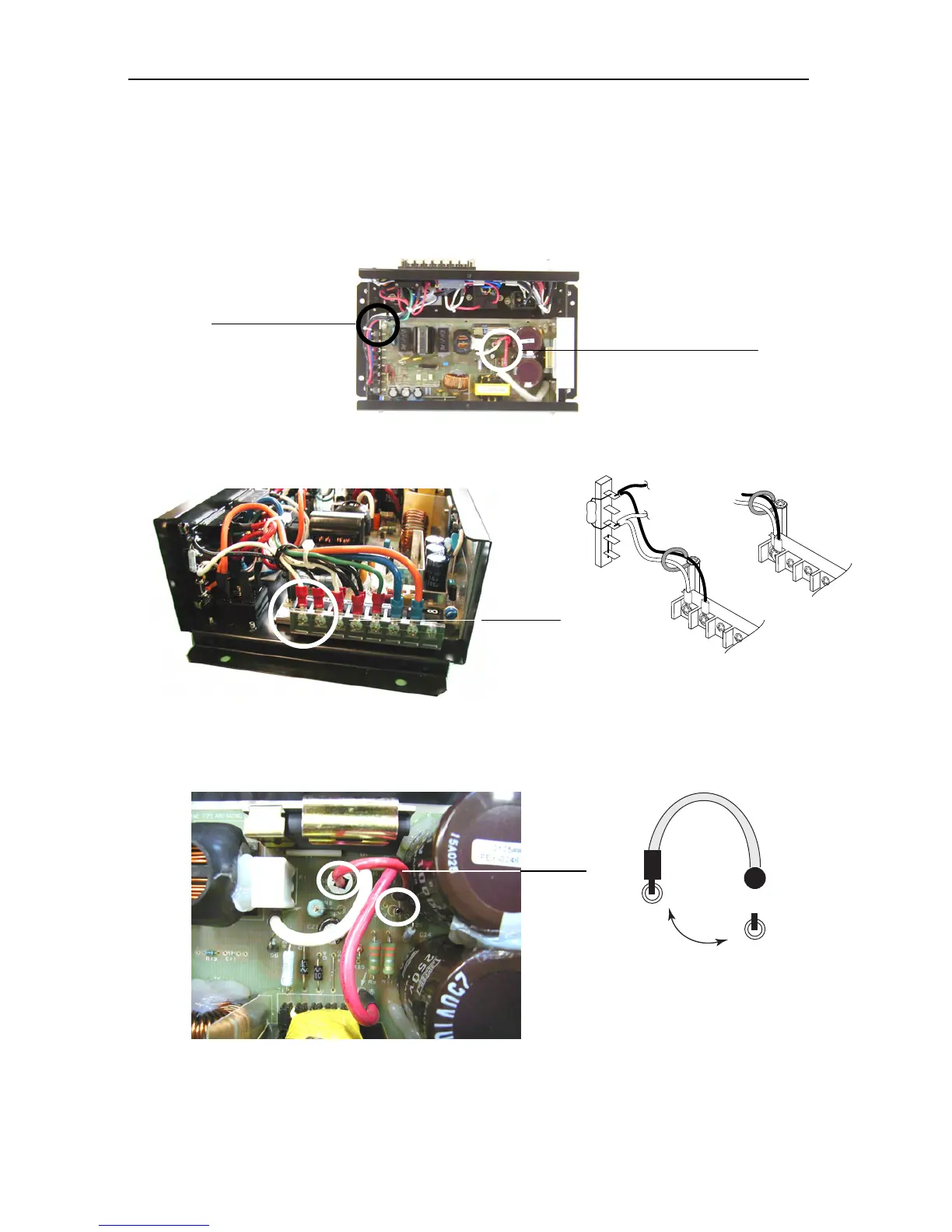

4.8 Change the Specification Power for PR-240-CE
4-36
4.8 Change the S
pecification Power for PR-240-CE
When switching the power supply
, switch is ma
de below two spots. Factory shipm
ent is
220 V
AC specification.
1. Change of wiring
2. Change of jumper
Change the jumper
Change wiring
Change the red ca
ble with plug to
the
specification power
.
When changing the s
pecification (Factory
setting)
from 220 V
AC to 100 V
AC, move the secon
d
wiring to the first on the terminal board.
220VAC spec.
(default
）
1
2
3
4
100VAC spec.
1
2
3
4
Black
Black
White
White
SEL
1
15V
SEL
230V
Red
131
133
Table of Contents
Default Chapter
37
Table of Contents
37
Check List
43
Chapter 1. Overview
45
General
45
Configurations
45
Operation
47
LCD Display
47
LCD Display and Operation
48
Chapter 2. Location of Parts
52
Main Unit
52
Panel
52
Interior
53
Board
58
Handset/Remote
64
Hs-2003
64
Rb-8800/Hs-8800
65
Rb-8810/Hs-8800
66
Junction Box/DMC if
68
Junction Box: IF-8810
68
DMC If: If-8820
69
VHF Console: RC-8800
70
Chapter 3. Menu Tree
72
Main Menu List(INTL Ver.)
72
User Menu (INTL Ver.)
72
Option Menu (INTL Ver.)
74
DSC Call Menu (INTL Ver.)
78
Remote Handset Menu (INTL Ver.)
83
Main Menu List (Russian Ver.)
85
User Menu (Russian Ver.)
85
Option Menu (Russian Ver.)
87
DSC Call Menu (Russian Ver.)
91
Remote Handset Menu (Russian Ver.)
95
Chapter 4. System Setting
97
Call up for Option Menu
97
ID Setting
99
Self ID
99
Group ID
100
Setting Remote Handset ID
102
Intercom Naming
103
Setting of Transceiver Unit Function ID
105
ATIS ID Setting
106
System Setting: User Menu
108
Alarm
108
Position Older
108
Ext Alarm
109
Auto Ack
110
Comply Status, Unable Reason
110
Position Call, Polling Call
111
Memory Channel
111
Message File Entry
112
Position
114
RTC (Russian Ver.)
115
Print out
115
Volume
116
AUTO CH (Russian Ver.)
117
PSTN CH (Russian Ver.)
117
SPECIAL CALL (Russian Ver.)
117
System Setting: Option Menu
118
Auto 1W
118
Auto Reverd
118
Ch70 Board
118
Ch Config
119
Ch Mode
120
Scan/Dw
120
Sp Mute
122
Timeout Timer
122
Regulation
123
Vdr Output Level
123
Station Type
124
Jumper Setting
125
Remote Station
125
Select Wing MIC
127
When Using Handset with Removed (HS-2003)
128
When TR Antenna Is Used for CH70 WR
129
Μtp-80F Setup
130
DIP Switch Setting
131
Change the Specification Power for PR-240-CE
132
Chapter 5. Block Description
133
Outline of Connection
133
I/O Port Specification
134
IEC61162/REMOTE Port (D-Sub 37P)
134
PRINTER Port(D-Sub 25P)
135
Handset MIC Connector
135
Outline of Boards
136
Block Description
138
Ch70 Rx (05P0775)
138
Dup Rx (05P0777)
140
Tx/Rx 05P0774
146
Duplexer
148
Cpu (05P0773)
153
Pwr (05P0776)
157
Hs Cont (05P0781)
159
Chapter 6. Measurement
161
Adjustment
161
Output Power
161
Measurement
163
VHF Frequency
163
CH70 Output
164
DSC Tone Frequency
165
Spurious Emission
167
Frequency Deviation for a Radiotelephone
168
Sensitivity of a Radiotelephone: NQ Method
169
Chapter 7. Updating Program
170
Updating
170
Program File
170
Note
172
Setup
173
Updating Procedure
176
Procedure
176
Check the Detailed Program Number
179
Chapter 8. Maintenance
181
Self-Test and Error Message
181
Daily Test
181
Tx Power
181
Tx/Rx Pcb
182
Cpu Pcb
182
Ch70 Rx Pcb
183
Error Messages
184
PLL1 Unlock
184
PLL2 Unlock
184
Gps Error (Epfs Error)
184
Printer PE
184
No Mmsi
184
System ERROR
184
RTC ERROR Input RTC
184
DSC Communication Test
186
T/A, Test, Reset Dsp
188
T/A
188
TEST Menu
188
Cpu
188
Panel
190
Ch70 Rx
192
Tx/Rx
193
Dup Rx
196
Dds/Codec
196
Reset Dsp
197
Memory Clear
198
Compatibility of Boards
199
Remote Handset Test
201
Chapter 9. Q & a
205
Q1. How Can We Use VHF Exclusively
205
Q2. What Are the Differences between FM-8800D and FM-8800S
205
Q3. Please Tell Me the Priority of Communication Order
205
Q4. Do the Transceiver Unit and Remote Handset Have to be Installed in Designated Location
205
Q5. Receptible Sentence
205
Q6. Please Tell Me about the Alarm Output
206
Q7. Can Carbon MIC be Used in Place Wing MIC
206
Q8. Can Remote Handset be Used Alone Without Transceiver Handset on
206
Q9. Does Remote Handset Have to be Wired in Daisy Chain
206
Q10. Can VHF Antenna be Used Together with CH70 WR Antenna
206
Q11. Is a Junction Box:if-8810 Necessary
206
Q12. How to Adjust LCD Contrast
207
Q13. How to Cancel Menu's Protection
207
Q14. Please Tell Me What to Check after Installing
207
Q15. How Do I Adjust the Frequency
207
Q16. How Do I Measure DSC Tone Frequency
207
Q17. will the Program-Ver. Indication Remain the same Even after Updating the Program
208
Q18. Is the Main Program Commonly Used for FM-8800D and FM-8800S
208
Q19. I Cannot Update the Program/How Do I Update the Program? (Case 1)
208
Q20. I Cannot Update the Program/How Do I Update the Program? (Case 2)
208
Q21. Remote Handset Is Not Working Properly
208
Q22. I Cannot Receive DSC Signals Although Telephone Is Working Just Fine
208
Q23. What Are the Differences between 05P0774A and B on TX/RX PCB
209
Q24. What Is a DISTRESS MODE
209
Q25. How Can I Clear Memory
209
Through No.2 VHF. Is the Equipment Broken
209
Q29. Would Disconnecting or Short-Circuiting Antenna Break Transceiver Unit
210
Q30. "DSC-5" Indication Appears after a Self-Test with DMC-5. Is this Okay
210
Q31. Please Tell Me about Where to Install the Antennas
210
Q32. What Is the Min. Horizontal Length between VHF Antennas
210
Q33. Please Tell Me about Where to Install the VHF
210
Q34. Does a VHF Rack-Consol Have a Type
210
Q35. Please Tell Me about RS-485
210
Q36. Please Tell Me about Communication Range
211
Q37. an Inspector Cautioned Me about Contents of Comsar/Cir.32
212
Regarding Installation of Equipment. What Is It about
212
Appendix 1) Specifications
214
General
214
Transmitter
214
Receiver
215
Dsc
215
CH70 WATCH Receiver
215
Power Supply
216
Digital Interface
216
Environmental Conditions
216
Coating Color
217
Appendix 2) Channel List
218
AP2.1 International/Usa/Canadian/Inland Waterways
218
AP2.2 US Weather Channel
220
AP2.3 Private Channel
221
Contents of Drawings
233
