6.1.1 Output Power
Adjusts output power for HI, LOW and TEMP REDUCE. Adjustment procedure for
FM-8800D and FM-8800S are the same. Power Data are curried out on the selected
channels and they are not memorized separately for each channel. Therefore, make an
adjustment with intermediate channel (CH14) of VHF.
- HI: 25 W (IEC standard is within 0 dB, –3 dB)
- LOW: Less than 1 W
- TEMP. REDUCE: Adjusts to 14W with output when the temperature sensor in
TX/RX board detects 60 degrees.

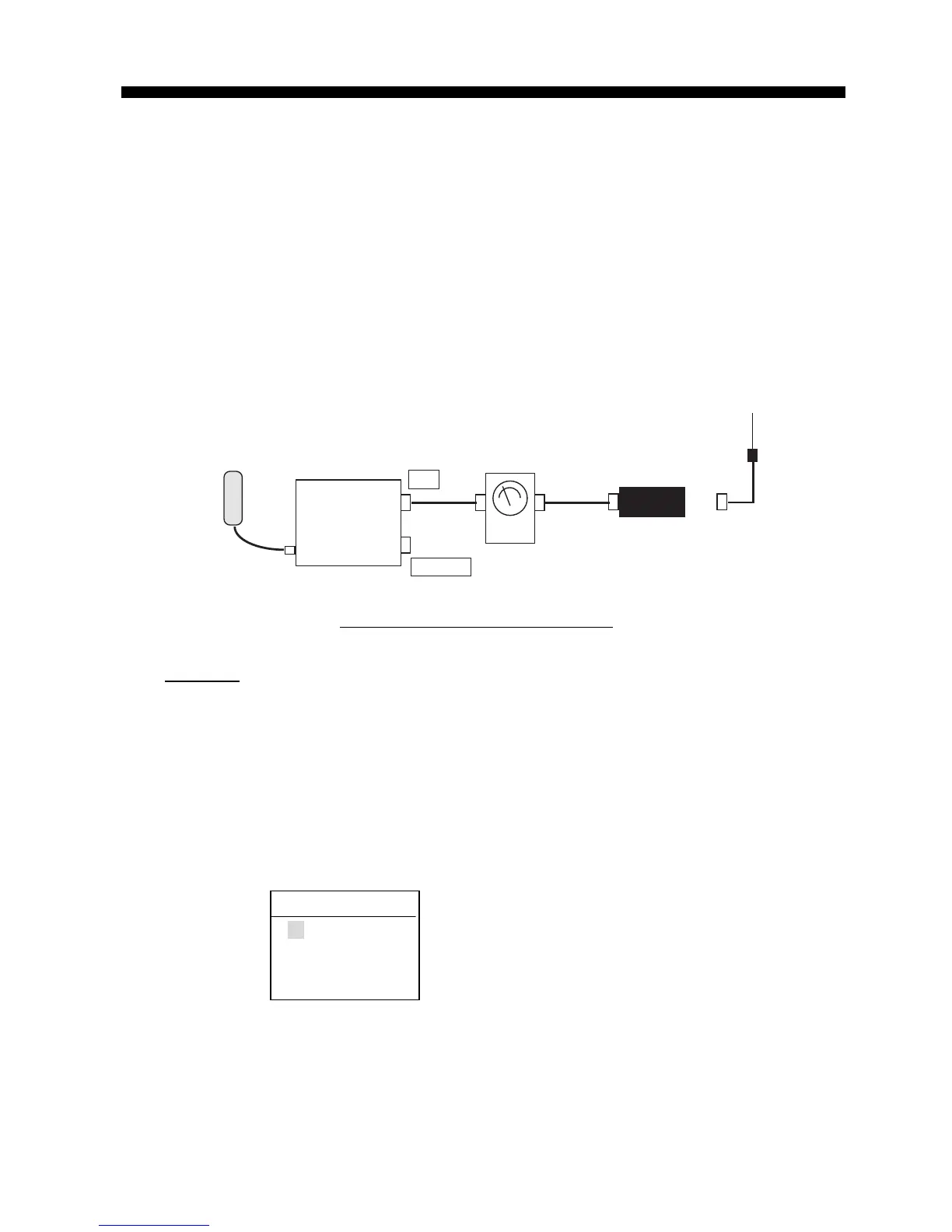

Fig. 6.1.1 Output Measurement Circuit
Procedure
1. Set to CH14.
2. Call up the option menu. Refer to page 4-1.
- Make a jumper connection between #2 and #15 on [Printer] port
- Or, jumper connection between #25 and #26 of IF-8810
- Press [MENU] -> SYSTEM -> [ENT] -> Input the password
3. Select TX POWER and press [ENT] key. Pop-up window will appear as below.
* TX POWER *
HI
LOW
TEMP. REDUCE
or
50 ohm
Dummy
Antenna
FM-8800S
FM-8800D
ANT
CH70 ANT
50 ohm
Power meter
Handset
Chapter 6. Measurement
To Next Page
