6. RASTER (ARCS) CHARTS
6-4

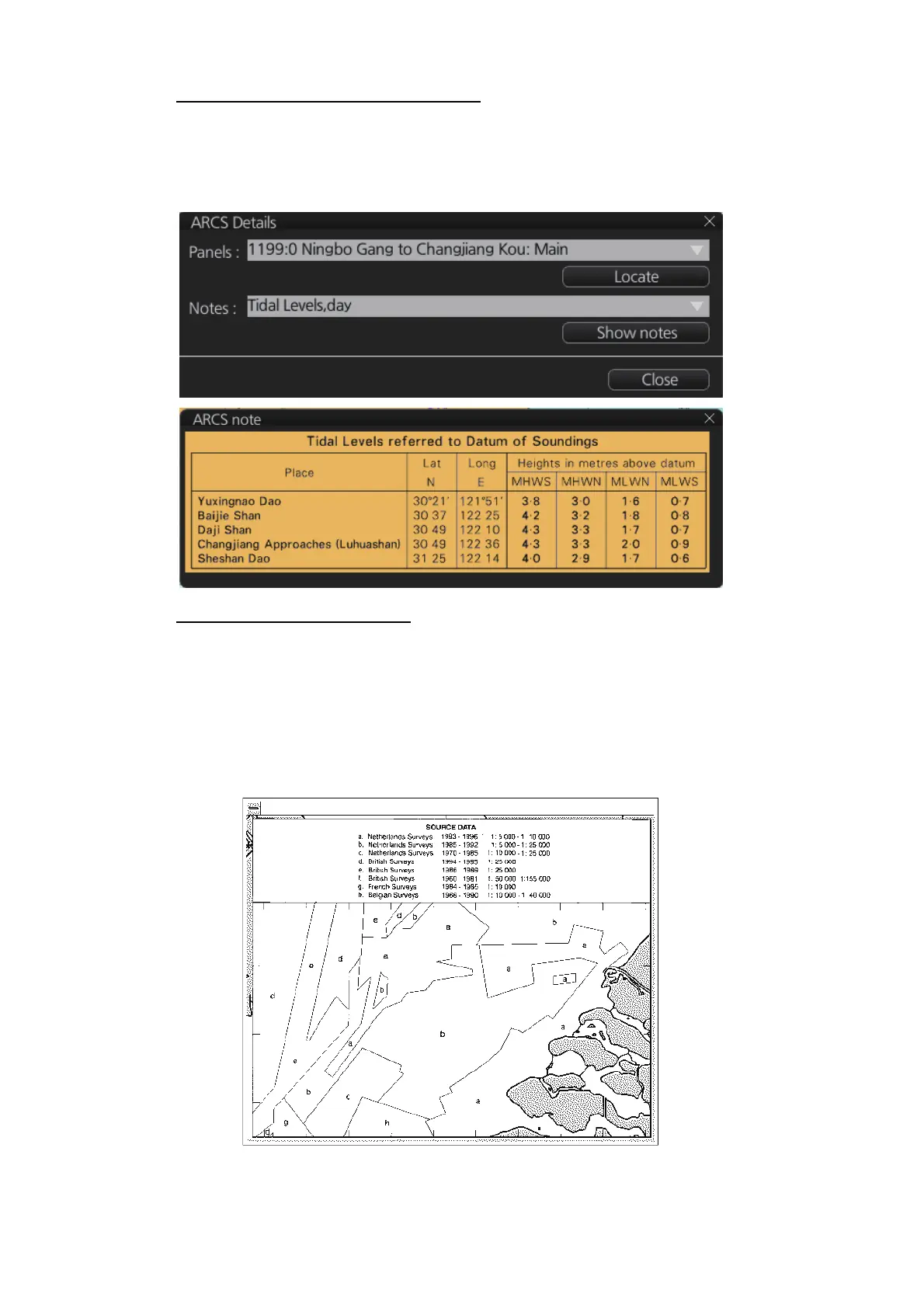

How to display notes of ARCS chart
The operator can select a desired item from the combo box in the [ARCS Details] di-
alog box in order to view notes for that item. Select an item on the [Notes] combo box
then click the [Show Notes] button to show the notes for the selected item.
Source Data Diagram (SDD)
A Source Data Diagram (SDD) consists of two parts: a graphic showing the areas cov-
ered by each type of source material from which the chart was compiled, and a tabu-
lation, keyed to a graphic, giving details of source dates and scales. The layout of the
graphic corresponds to the layout of the chart, and the borders of the diagram equate
to the limits of the chart panels. You can show the SDD by selecting [Source] from the
[Notes] drop-down list and clicking the [Show Notes] button.
