Furuno FMD-3200 Installation Manual

1. MOUNTING
1-2
1.2.1 Desktop Mounting
Fixing with KB fixing metal
1. Fix the KB fixing metal to the bottom of the control unit.
2. Fix the unit with self-tapping screws (5x20, local supply).

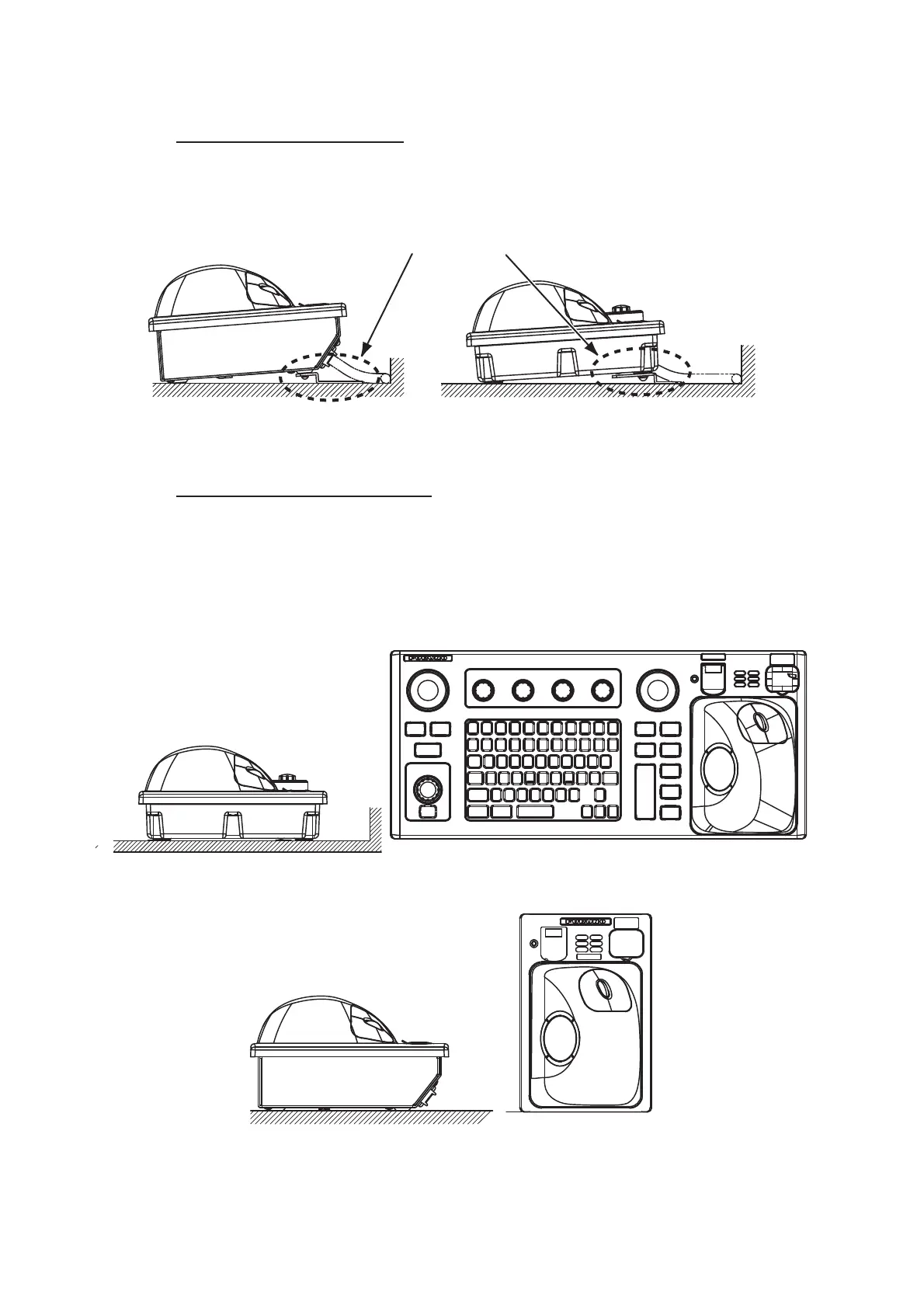

Side view of control units
Fixing without KB fixing metal
1. Drill four mounting holes of 5 mm (RCU-024) or 4 mm (RCU-026) diameter refer-
ring to the outline drawing at the back of this manual.
2. Fix the control unit with four screws (RCU-024: M4, RCU-026: M3) from under
side of the desktop. (The M4 screws with a sufficient length for the thickness of
the desktop should be provided locally.)
Control unit RCU-024
Control unit RCU-026
KB fixing metal
RCU-026
RCU-024

Furuno FMD-3200 Specifications

General

Display Type	LCD
Power Supply	24 VDC
Operating Temperature	-15°C to +55°C
ECDIS	Yes
Waterproof Standard	IP22
Interfaces	USB
Chart Format	S-57, S-63
Weight	Approx. 9.5 kg
