Furuno FMD-3200 Installation Manual

2-1
2. WIRING

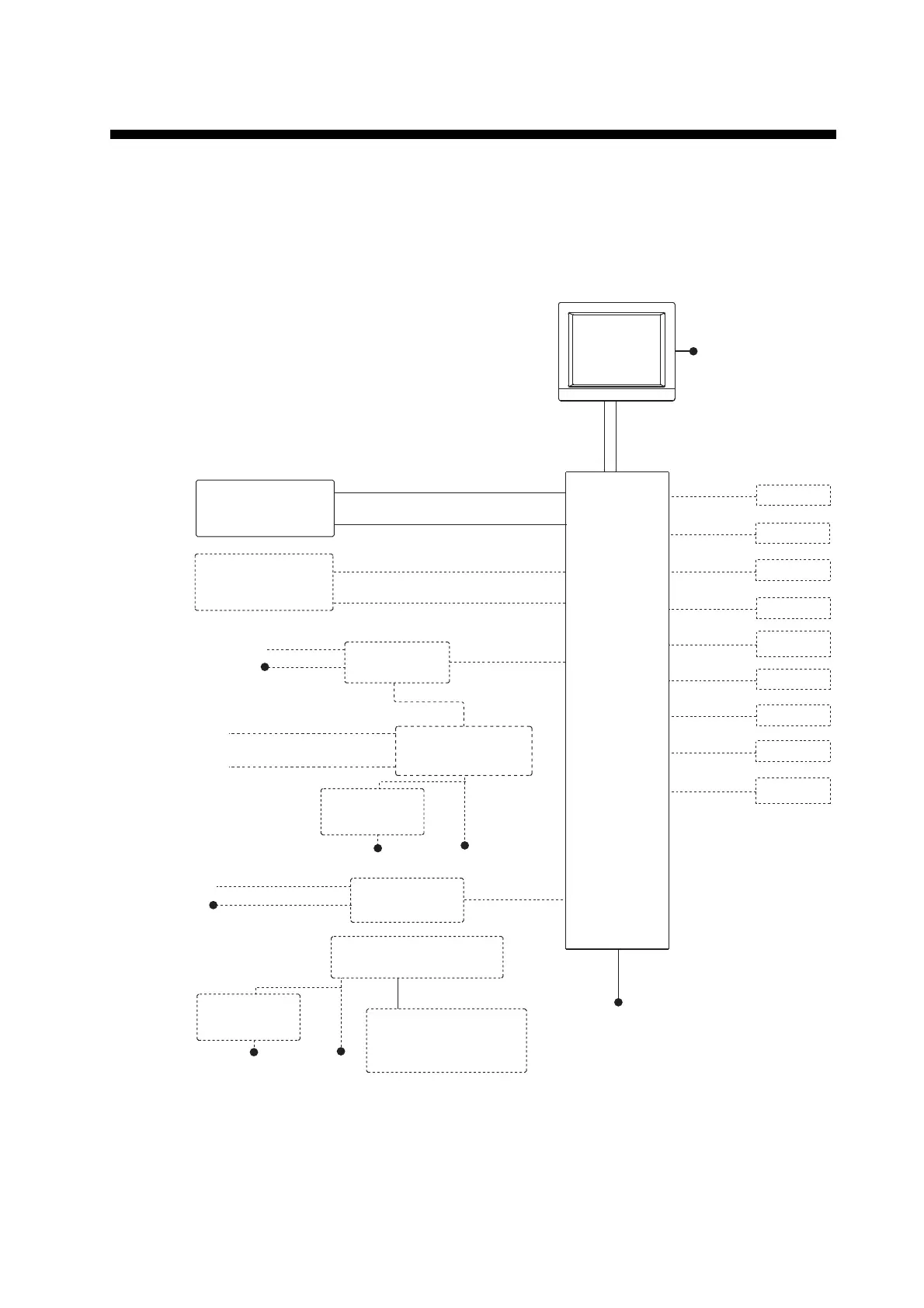

The illustration on this page shows the general connection between FMD-3200/3300
and external equipment. For detailed information, see the interconnection diagram.
Many of the cables mentioned are JIS (Japan Industry Standard) cables. If not avail-
able locally, use the equivalent. See the cable guide in the Appendix for how to select
equivalent cables. For other monitor unit wiring, see the applicable operator’s manual.
Note: The following monitors are available with the FMD-3200-BB. For the cable be-
tween the monitor other than MU-190/MU-231/270W and processor unit, use the ca-
ble assy. (type: DSUB9P-X2-A-L5M/10M).
DSUB9P-X2 cable: For MU-190/231/270W
or
DSUB9P-X2-A cable: For HD26T21-MMD-MA4-FAGA
(5 m, option: 10 m)
Processor Unit
EC-3000
Control Unit
RCU-024 or RCU-26
Control Unit
RCU-024 or RCU-026
100-230 VAC
100-115/
220-230 VAC
DVI-D/D S-LINK cable
(5 m, option: 10 m*)
Monitor Unit
MU-190/MU-231/270W
HD26T21-MMD-MA4-FAGA
Max. three monitor
unit can be connected.
AIS
TTYCS-4 or
TTYCSLA-4
6TPSH-XH12S2-LxxSP1/2 cable
(5 m, option: 10/20/30 m)
TS-20-071-1 cable
6TPSH-XH12X2-LxxSP1/2 cable
(5 m, option: 10/20/30 m)
TS-20-071-1 cable
(Max. 2)
IEC60320-C13-L5M, 5 m
GYRO
GPS
TTYCS-1Q or
TTYCSLA-1Q
LOG
ECHO
SOUNDER
ANEMOMETER
ALARM
NAVTEX
ALARM
SYSTEM
TTYCS-10 or
TTYCSLA-10
Switching HUB
HUB-100
FR-FTPC-CY,
10/20/30 m
NR203PF-VVS1325
100-230 VAC
STP (CAT5) cable
or
Sensor Adapter
MC-3000S (Serial IN/OUT)
-MC-3010A (ANALOG)
-MC-3020D (Digital IN)
-MC-3030D (Digital OUT)
Sensor Adapter
MC1.5-W-L cable,
0.6/1/2/3 m
24 VDC
AC-DC Power
Supply Unit
PR-240
100-230 VAC
TTYCS-4 or
TTYCSLA-4
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
Sensor
Adapter
*: MU-190 only
Intelligent HUB
HUB-3000
DTI-C5E350 VCV,
10/20/30 m
100-230 VAC
ALARM SYSTEM
DPYC-1.5
DPYC-1.5
Radar Connection Box
RCB-002
MOD-WPAS0001-030+, 3m
MJ-A10SPF0020A,
5/10/20/30 m
MJ-A10SPF0020A,
5/10/20/30 m
External Radar
External Radar
24 VDC
AC-DC Power
Supply Unit
PR-240
100-230 VAC

Furuno FMD-3200 Specifications

General

Display Type	LCD
Power Supply	24 VDC
Operating Temperature	-15°C to +55°C
ECDIS	Yes
Waterproof Standard	IP22
Interfaces	USB
Chart Format	S-57, S-63
Weight	Approx. 9.5 kg
