2. WIRING
2-15
2.3 Sensor Adapters (option)
Maximum eight MC-3000S can be connected to a sensor network (for the redundant
connection: 16). The MC-3000S (serial input/output, IEC61162-2/1, 4ch) can connect
max. 10 sensor adapters using the MC1.5-W cables. The maximum number of MC-
3010A units is five.
When fabricating the MC1.5-W cables, use the lot terminal (ferrule type, supplied) to
maintain performance. This fabrication requires the optional crimping tool (type:
CRIMPFOX 10S). For the relations between the connectors and rod terminals, see
page AP-2. Also, the stickers attached on the reverse side of the covers show the de-
tailed connections.
Attache the cables to the applicable pins.
Use the ferrule-type terminals (supplied) to connect the cables to the terminals in the
sensor adapters. This connection requires a crimping tool (CRIMPFOX10S, option).
Note 1: Use the MC1.5-W cable between the sensor adapters.
Note 2: The total length of the MC1.5-W cables should be less than 6 m to prevent
malfunction.
Pin No. Cable color Signal
1 Red 24V_OUT or 24V_IN
2 Black 24V_GND
3 White MODBUS-A
4 Blue MODBUS-B
5Gray GND

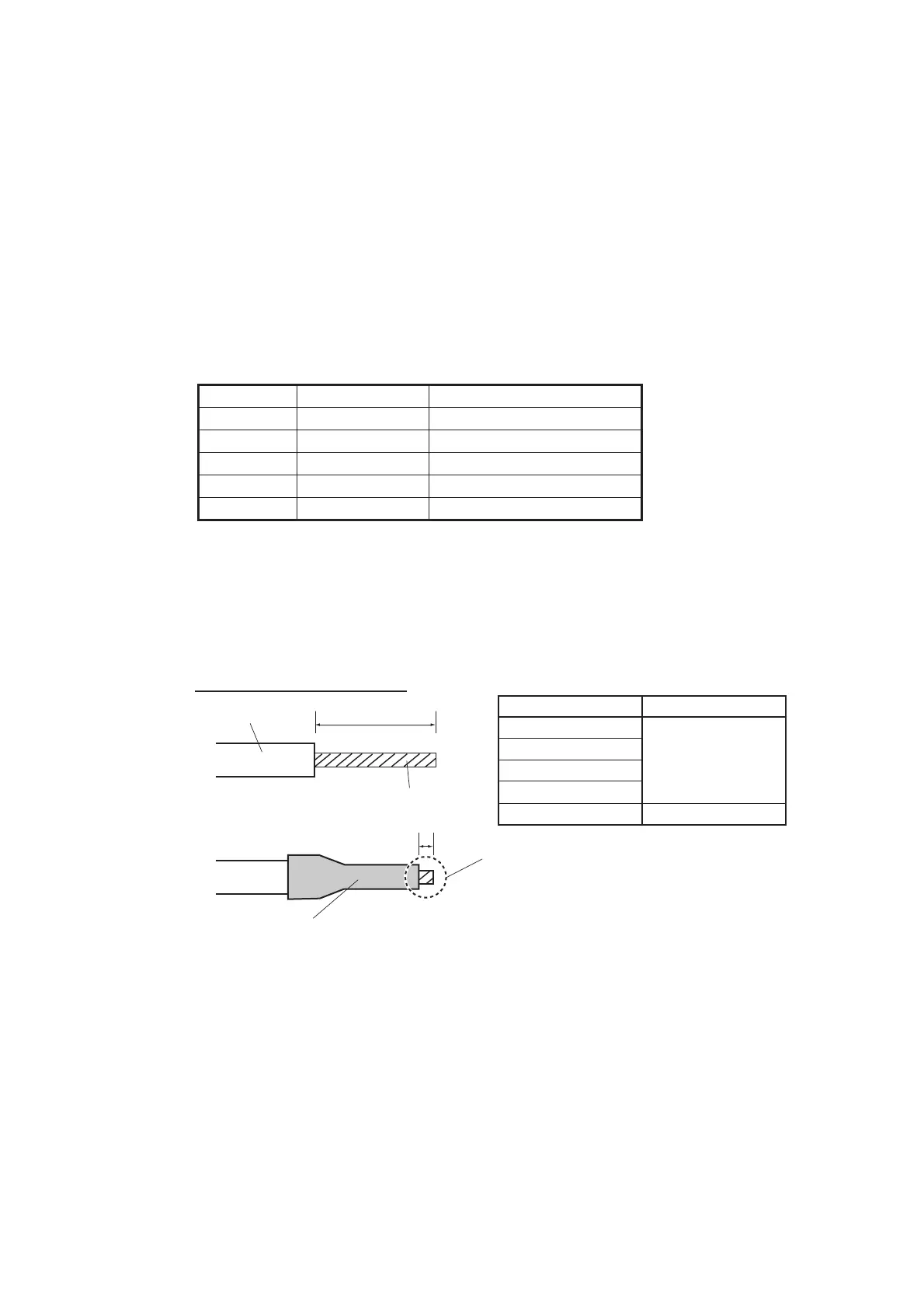

Rod terminal (ferrule type):
After attaching the rod terminal, use the optional
crimping tool CRIMPFOX 10S to crimp.
L
0.5 to 1 mm
How to attach ferrule-type lug
Core
Vinyl sheath
Rod terminal (ferrule type):
The core must protrude 0.5 to 1 mm
past the rod terminal.
Ferrule-type lug Length of “L”
AI 1.5-6 BK (BLK)
AI 0.34-6 TQ (BLU)
AI 0.75-6 GY (GREY)
AI 1-6 RD (RED)
6 mm
AI 0.14-8 GY(GREY) 8 mm
To Next Page
