Furuno FMD-3200 Installation Manual

SYSTEM CONFIGURATION
iii

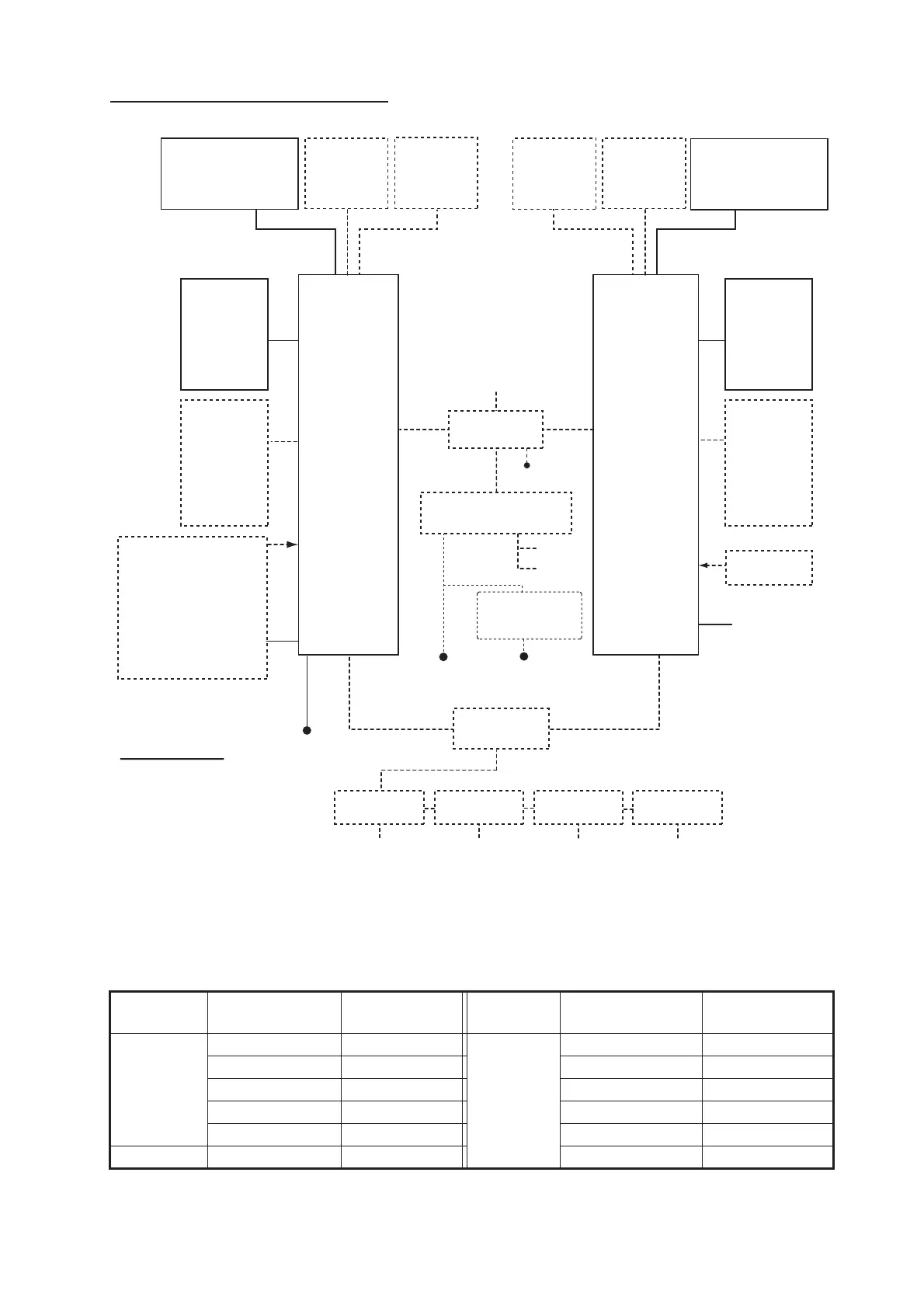

System with two processor units
Note: The following monitors are available with the FMD-3200-BB:
Maker Model
Viewing
distance (m)
Maker Model
Viewing
distance (m)
FURUNO MU-190 1.0138 Hatteland JH20T17FUD 0.8793
MU-231 1.0138 JH23T12FUD 1.0138
MU-270W 1.02 JH23T14FUD 1.0138
MU-201CE 1.0759 HD24T21MMD 0.9517
MU-231CE 1.0138 JH26T11MMD 0.9879
Hatteland JH19T14FUD 1.0138 HD26T21MMD 0.9879
EC-3000
PROCESSOR
UNIT
Dashed lines indicate
optional or local supply
equipment.
100-115/
220-230 VAC,
1ø, 50/60 Hz
Serial
interface
Analog
interface
Digital IN
interface
EC-3000
PROCESSOR
UNIT
Switching Hub
HUB-100
Digital OUT
interface
100-115/
220-230 VAC,
1ø, 50/60 Hz
Category of units
All units protected
from the weather.
Sensor Adapter
MC-3000S
Sensor Adapter
MC-3010A
Sensor Adapter
MC-3020D
Sensor Adapter
MC-3030D
IF Signal:
- Serial Interface x2
(IEC 61162-1/2)
- Serial Interface x6
(IEC 61162-1)
- Digital Out x6
(power fail/system fail/
NO x2, NC x2)
- Digital In (ack in)
IF Signal:
(Same as left.)
Main Monitor*Sub Monitor
Conning
Monitor
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
(Max. 2)
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
ECDIS
Control Unit
RCU-024
or
Trackball
Control Unit
RCU-026
(Max. 2)
Gateway network
equipment
(radar, ECDIS, etc.)
Intelligent Hub
HUB-3000
Main Monitor* Sub Monitor
Conning
Monitor
100-115/
220-230 VAC,
1ø, 50/60 Hz
Monitor Unit
MU-190/MU-231/MU-270W
HD26T21-MMD-MA4-FAGA
Monitor Unit
MU-190/
MU-231/
MU-270W
Monitor Unit
MU-190/
MU-231/
MU-270W
Monitor Unit
MU-190/MU-231/MU-270W
HD26T21-MMD-MA4-FAGA
Monitor Unit
MU-190/
MU-231/
MU-270W
Monitor Unit
MU-190/
MU-231/
MU-270W
100-230 VAC
Radar 1
Radar Connection Box
RCB-002
Radar 2
100-115/200-230 VAC
1ø, 50/60 Hz
24 VDC
AC-DC Power
Supply Unit
PR-240
*: MU-190: Standard supply for FMD-3200
MU-231: Standard supply for FMD-3300
MU-270W: Standard supply for FMD-3300
HD26T21-MMD-MA4-FAGA: Standard supply for FMD-3300
