Furuno FR-8122 User Manual

1. OPERATIONAL OVERVIEW
1-45
1.35 Navigation Data
1.35.1 Navigation data during standby
Navigation data is shown in standby when STBY Mode Display in the Initial Menu is set to “Nav”.
Appropriate sensors required to display data.

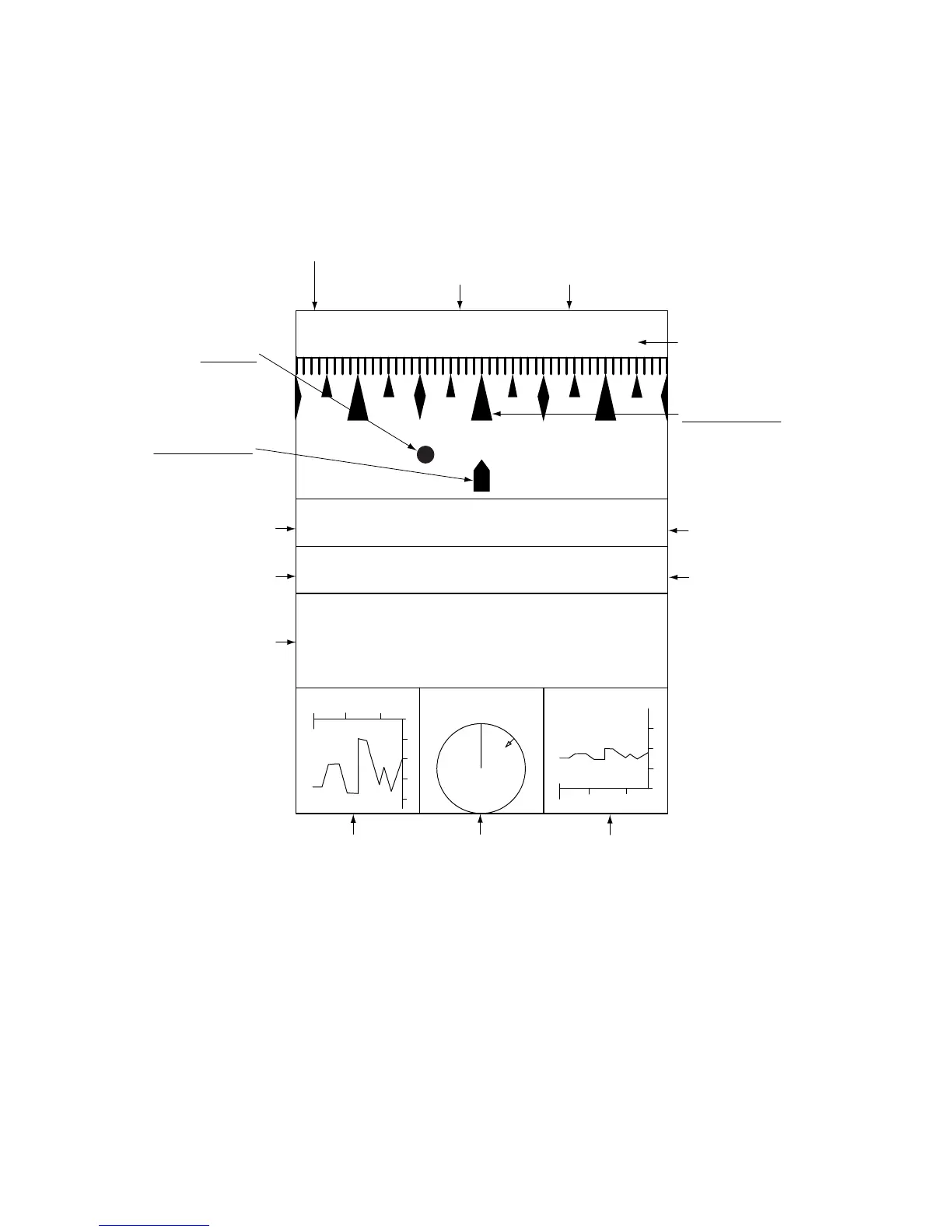

Navigation data display at standby
Time until Tx in watchman
(Displayed when watchman is active.)
Heading indicator
Graphic appears eve
n
if bearing signal is los
t,
however the compas
s
point indications do n
ot
appear.
Standby indication
O
wn ship marker
F
ixed regardless
o
f ship's movement.
Heading
Cross-track
error
Waypoint
Flashes if
vessel goes
outside display
bearing.
Speed
Date
Position
Depth Wind speed
and direction
Water
temperature
Time
24/JAN/2006
DATE
SPEED COURSE
POSITION
N
NNE NE ENNW
NW W
HEADING
LAT
LON
90° 00.000 N
180° 00.000 E
12.9 kts 359.9°
TIME
23 : 59 : 59
XTE
←9.99nm 359.9° STBY
20
40
80
60
DEPTH
(m)
30
30
20
0
10
TEMP 18.3 (°C) 40.3
20
10
20 10
WIND
65.3
(kt)
45.0° (R)
N
<WATCH> 19:59
(min)
30
0
(min)
Course
