Furuno LS-6100 User Manual

36
Wind sensor
DISPLAY UNIT
Wind Sensor
12 VDC
NMEA port setting: IN/OUT
¬

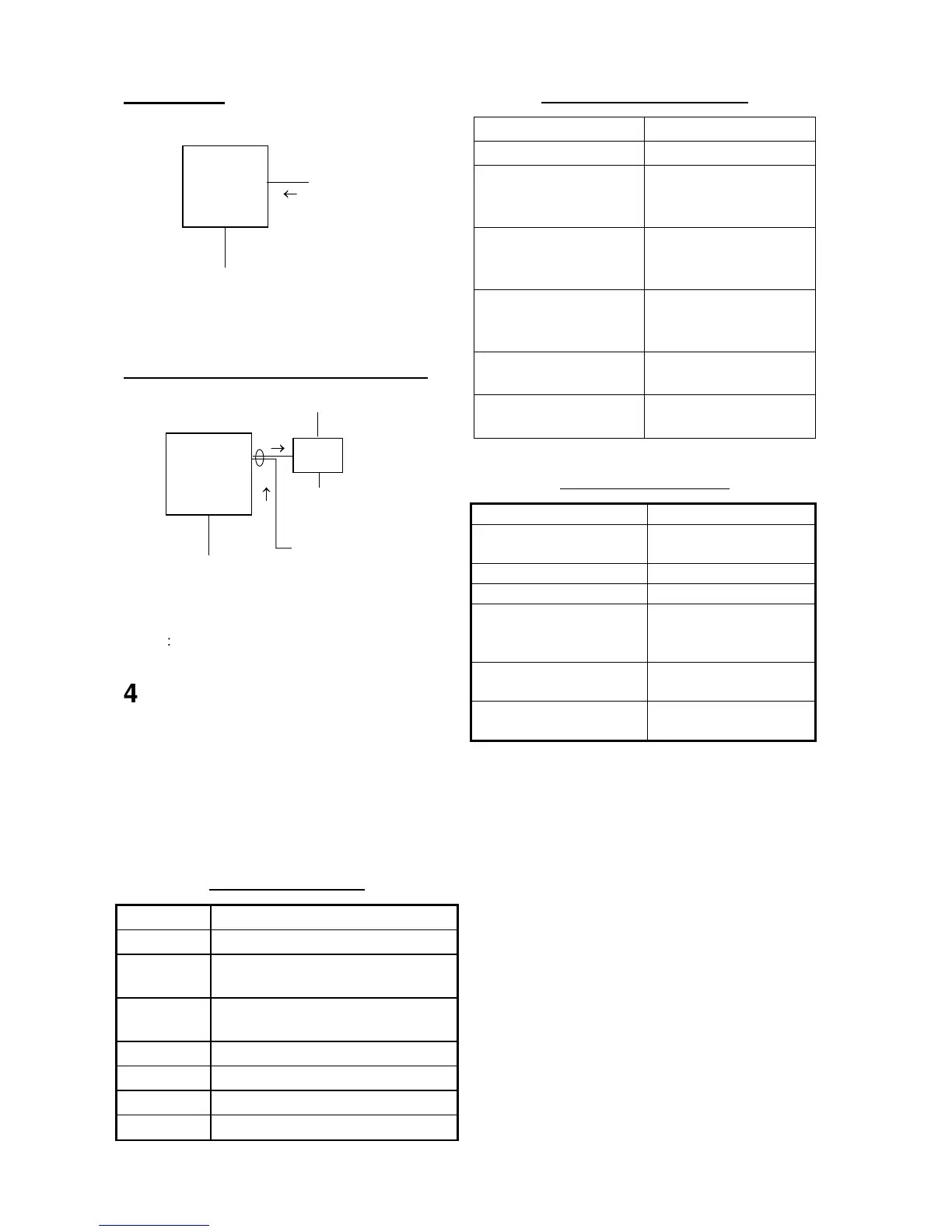

Connection of wind sensor
Feeding data to RD-30 via the LS-6100
DISPLAY UNIT*
GP-310B
12 VDC
NMEA port setting: IN/OUT
NMEA mix setting: ON
Wind Sensor
RD-30
12/24 VDC
®
*: Navigator-related data not displayed.
¬
4.8 IEC 61162-1 Data
Sentences
The tables below show the data sentences
which can be input to and output from the
LS-6100. The transmission speed for both
input and output is 4800 bps. Data is output
at two-second intervals.
Input data sentences
Sentence Meaning
BWC Bearing and distance to waypoint
GGA Global positioning system (GPS)
fix data
GLL Geographic position -
latitude/longitude
HDG Heading, deviation and variation
HDT Heading, true
MDA Atmospheric pressure
MTW Water temperature
Input data sentences (con’t)
Sentence Meaning
MWV Wind speed and angle
RMA Recommended
minimum specific
LORAN-C data
RMB Recommended
minimum navigation
information
RMC Recommended
minimum specific
GPS/TRANSIT data
VHW Water speed and
heading
VTG Course over ground
and ground speed
Output data sentences
Sentence Meaning
DBT (Ver. 1.5) Depth below
transducer
DPT (Ver. 2.0, Ver. 3.0) Depth
MTW* Water temperature
RMB* (Ver. 2.0) Recommended
minimum navigation
information
VHW* Water speed and
heading
TLL* Target position, output
by [MARK] key.
* = Available with connection optional
sensors/navaid
