Fishnder 90/140 Owner’s Manual 5
Installing Your Fishnder
Installing Your Fishnder
Make sure you completely read and understand all
instructions before you install and use your Fishnder. If
you have problems, contact Garmin Product Support, or
seek other professional assistance.
You can install the Fishnder hardware on a transom or on
a trolling motor. Before installation, make sure the wiring
harness can reach the Fishnder and transducer locations.
Check the packing list below. If you are missing any items,
contact your Garmin dealer.

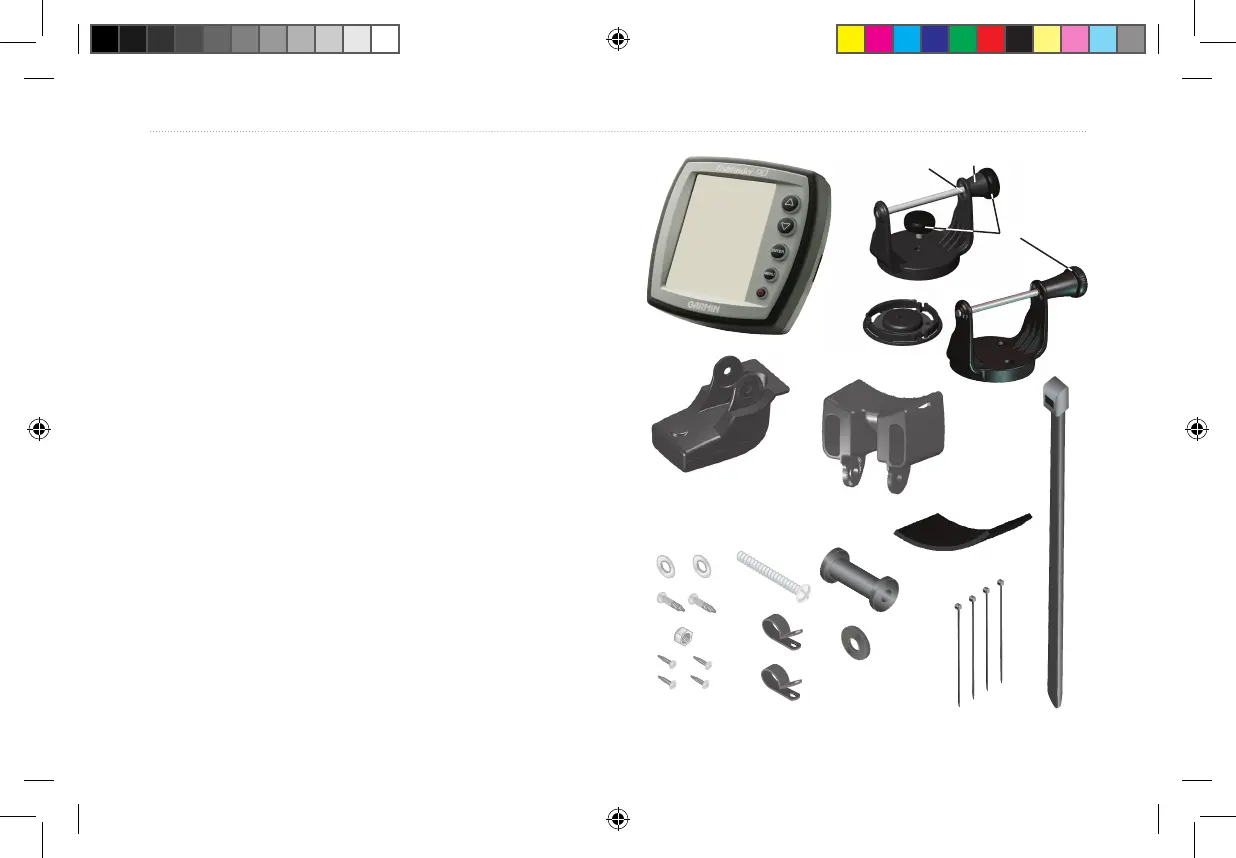

Packing List (one of each, unless otherwise noted):
A—Fishnder sonar unit
B1—Swivel mount bracket (Fishnder
140; optional for Fishnder 90); or
B2—Tilt mount bracket (Fishnder 90)
C—Swivel base (Fishnder 140)
D—Mounting knobs
E—Mounting knob spacer
F—Snap ring
G—Transducer with power cable
H—Transducer mount
I—Trolling motor mount gasket
J—5 mm Flat washers (2)
K—5 x 30 mm Screws (2)
L—10-32 Lock nut
M—4 x 12 mm Screws (4)
N—10-32 x 1.75 Screw
O—1/4" Cable clamps (2)
P—Plastic spacer
Q—1/4" Rubber washer
R—Cable tie, 5.6" (4)
S—Cable tie, 20”
J
K
L
M
N
O
P
Q
R
I
S
G
(Cable not shown)
C
D
E
B1
F
(Fishnder 90)
B2
(Fishnder 90)
(Fishnder 140)
A
H
190-00582-10_0A.indd 5 12/2/2011 3:08:57 PM

Garmin Fishfinder 140 Specifications

General

Display resolution	128 x 240 pixels

Weight and Dimensions

Weight	530 g
Dimensions (WxDxH)	155 x 125 x 66 mm
