7.2.9 DC Link Inductor
1. Remove MDCIC panel in accordance with instructions. (Fan transformers do not need to be removed.)
2. Remove 2 bus bars covering inductor by removing four screws (8mm) on each bus bar.
3. Remove 4 mounting bracket bus bars that bus bars removed previously in Step 2 were mounted to by removing screw (8mm) from each mounting
bracket.
4. Remove remaining short bus bars attached to angle bracket bus bars by removing two 8mm screws from each bus bar.
5. Note that DC link reactors weigh 25 kg / 55 lbs. Provide sufficient support and remove DC link inductor by removing M6 nuts securing inductor to cabinet.
Reinstall DC link reactors in reverse order of this procedure.
1
2
2
130BX253.10

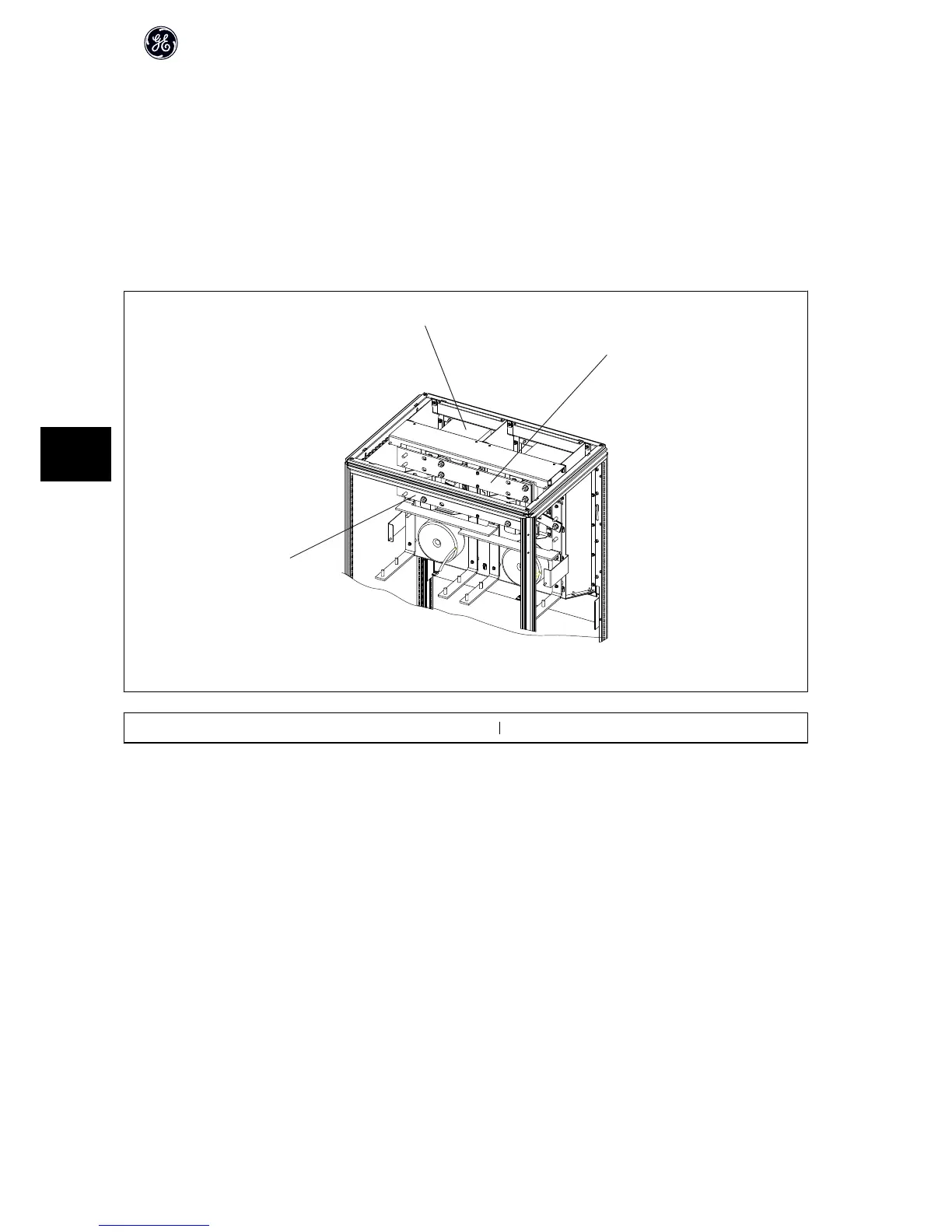

1 DC link inductor 2 Bus bars (step 2)
High Power Service Manual for Unit Sizes 6x
106
