GE AF-650 GP User Manual

2.2.3 Display Area
a. The top line shows controller status when in status mode or two variables selected in par. K-10 Active Set-up, such as direction of rotation or active set-
up
b. The motor values displayed are selected by parameter choices in par. K-20 Display Line 1.1 Small, par. K-21 Display Line 1.2 Small, par. K-22 Display Line
1.3 Small, par. K-23 Display Line 2 Large, and par. K-24 Display Line 3 Large. Each value has dimension scaling. A flashing alarm or warning message
replaces the display in the case of a fault or pending fault condition.
The operating variables shown in the figure are motor speed (1.1), motor current (1.2), motor power (1.3), and drive output frequency (2) in large scale.
Use the [INFO] key for definition of the displayed operating variables.
c. Automatically generated mode and status messages appear on this line.

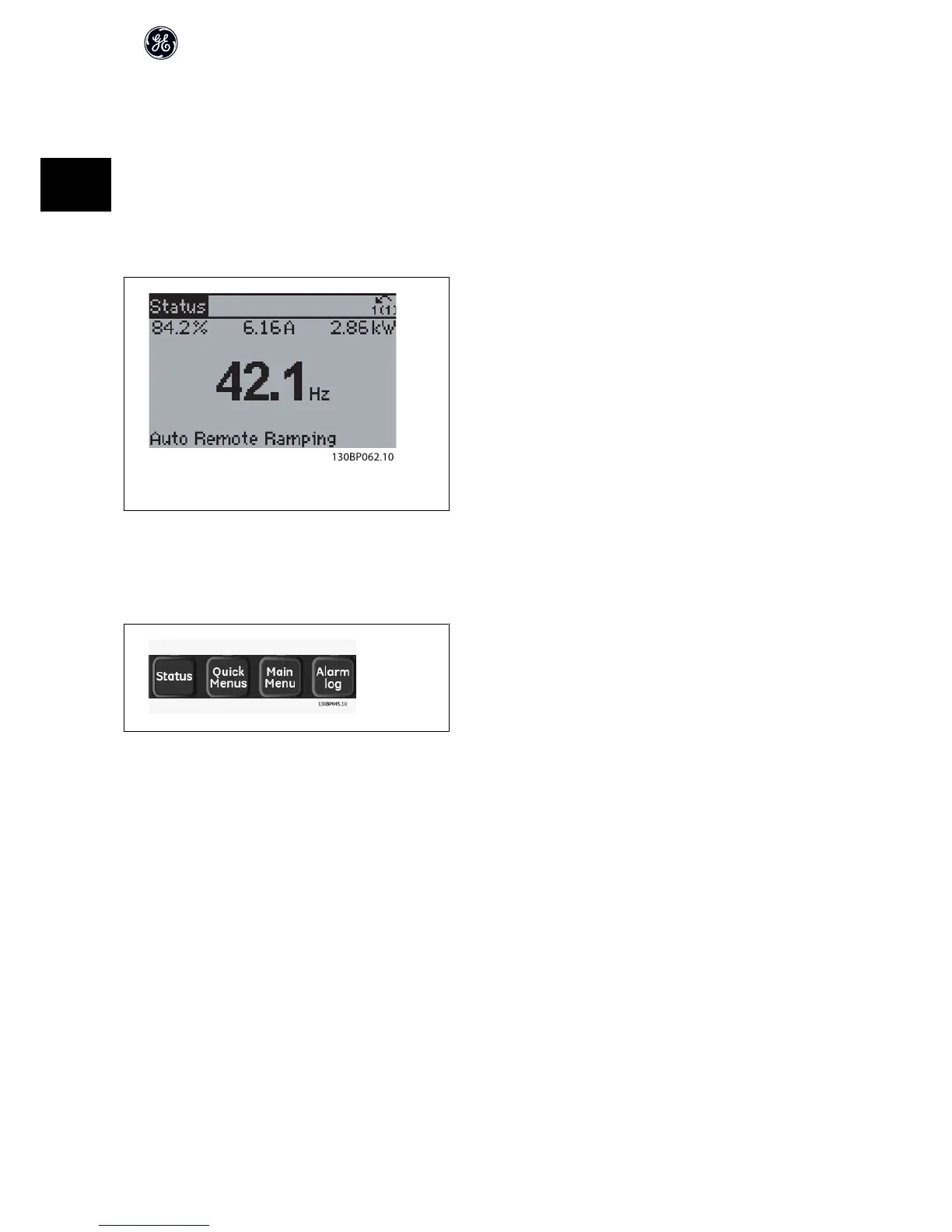

Illustration 2.2: Keypad Display Area
2.2.4 Menu Keys
Menu keys are used for parameter set-up, toggling through status display modes during normal operation, and viewing fault log data.
Status Press and hold the Status key to toggle between status read-out displays in the Keypad display area. Press [Status] in any other display mode to return to
the status display. Pressing [Status] plus [UP] or [DOWN] arrows adjusts the display brightness.
Quick Menu Allows access to the most common functions for restoring the controller.
Main Menu Provides access to all programming parameters. Press and hold the [Main Menu] key to access any parameter by entering the parameter number.
Alarm Log Displays a list of the last five alarms. For additional details about an alarm, select the alarm number using the arrow keys and press [OK]. Details about
the frequency converter before it entered the alarm mode are displayed.
