OPM_LPS_33E_10K_30K_4CN_V010.doc 74/82 Operating Manual LP 33 / 10-20-30 kVA
10 OPTIONS

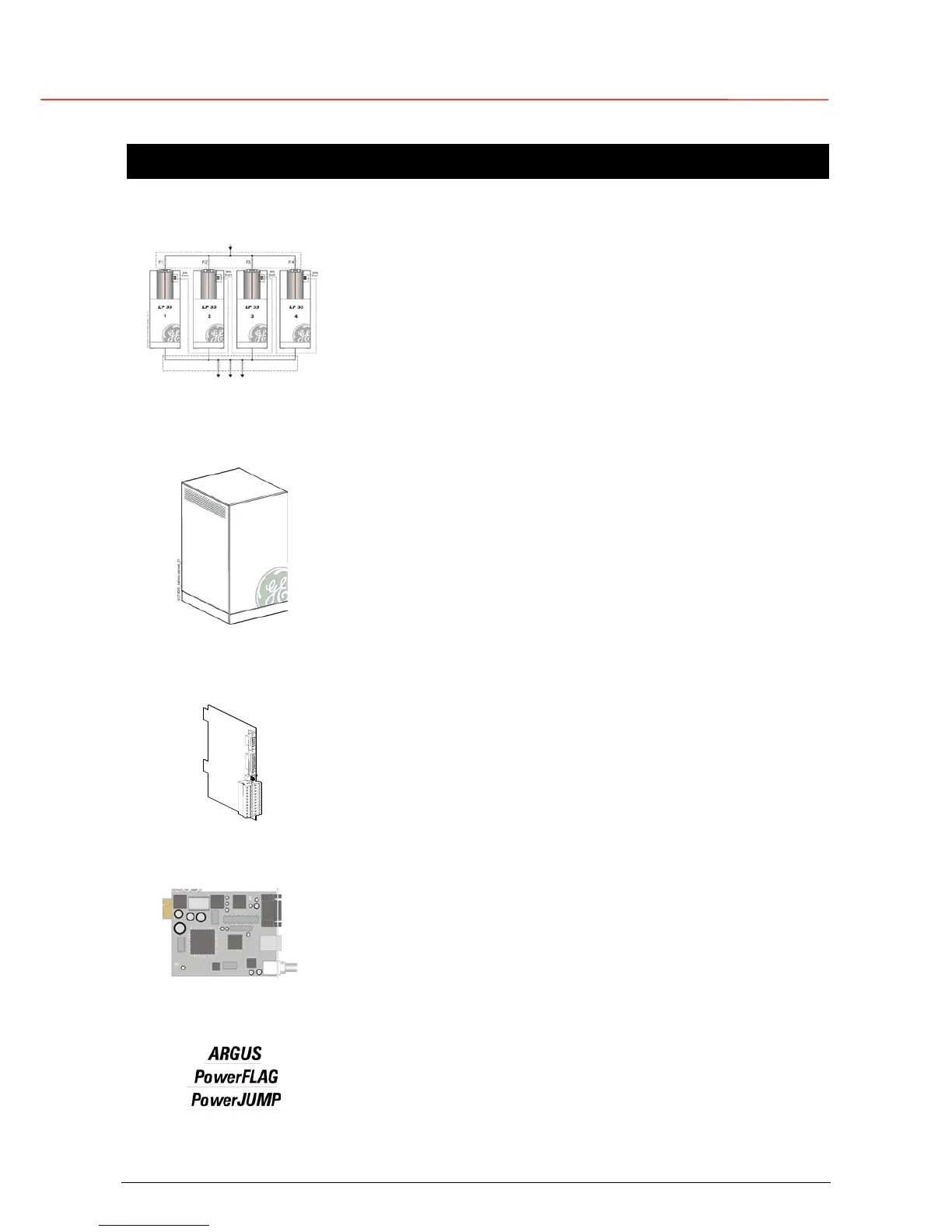

10.1 OPTIONS GENERAL VIEW
Mains Input
Load
Fig. 10.1-1 RPA Parallel System
RPA kit
Redundant Parallel Architecture
Allows to extend the unit to a parallel system with 2, 3, or 4 units
connected on the same bus, which ensure the highest reliability rate and
increase the power availability without prior investments.
Fig. 10.1-2 Additional battery cabinet
Battery Extension Packs
Extended run-time versions are equipped with additional batteries housed
in the UPS itself, to increase the back-up time of the UPS when the mains
fails.
Additional battery cabinets
Depending on model the battery extensions can be housed in additional
cabinets with the same design of the UPS cabinet, delivered with the
necessary protection and connection material.
For extended run-time versions and additional cabinets see enclosed Data
Sheets.
Additional battery charge
For battery with extended backup time (max. 8.2 A).
SGT4000_customer interface_02
1234567891011
1615141312 222120191817
21
Fig. 10.1-3 Customer Interface
Customer Interface
The Customer Interface allows the client the exchange of information
(monitoring and control) with the following interfaces:
• Serial port RS232.
• 6 programmable output channels.
• 2 programmable input channels, of witch one for GEN-ON.
• EPO (Emergency Power Off).
Fig. 10.1-4 SNMP Card
SNMP Card
Simple Network Management Protocol
The SNMP Card is an Interface to the Ethernet Network, and provides
UPS information via the standard SNMP protocol.
The UPS can therefore be managed by a Network Management System
(NMS) or by our applications (for instance JUMP), which uses this
information to determine the state of the UPS in order to guarantee safe
and orderly shutdown of the server, when needed.
Fig. 10.1-5 Connectivity Software
Connectivity Software
ARGUS / PowerFlag / JUMP, IRIS Service, etc.
