Tools Needed
The following specialized tools are referenced within
this Service Guide and may be ordered from GE.

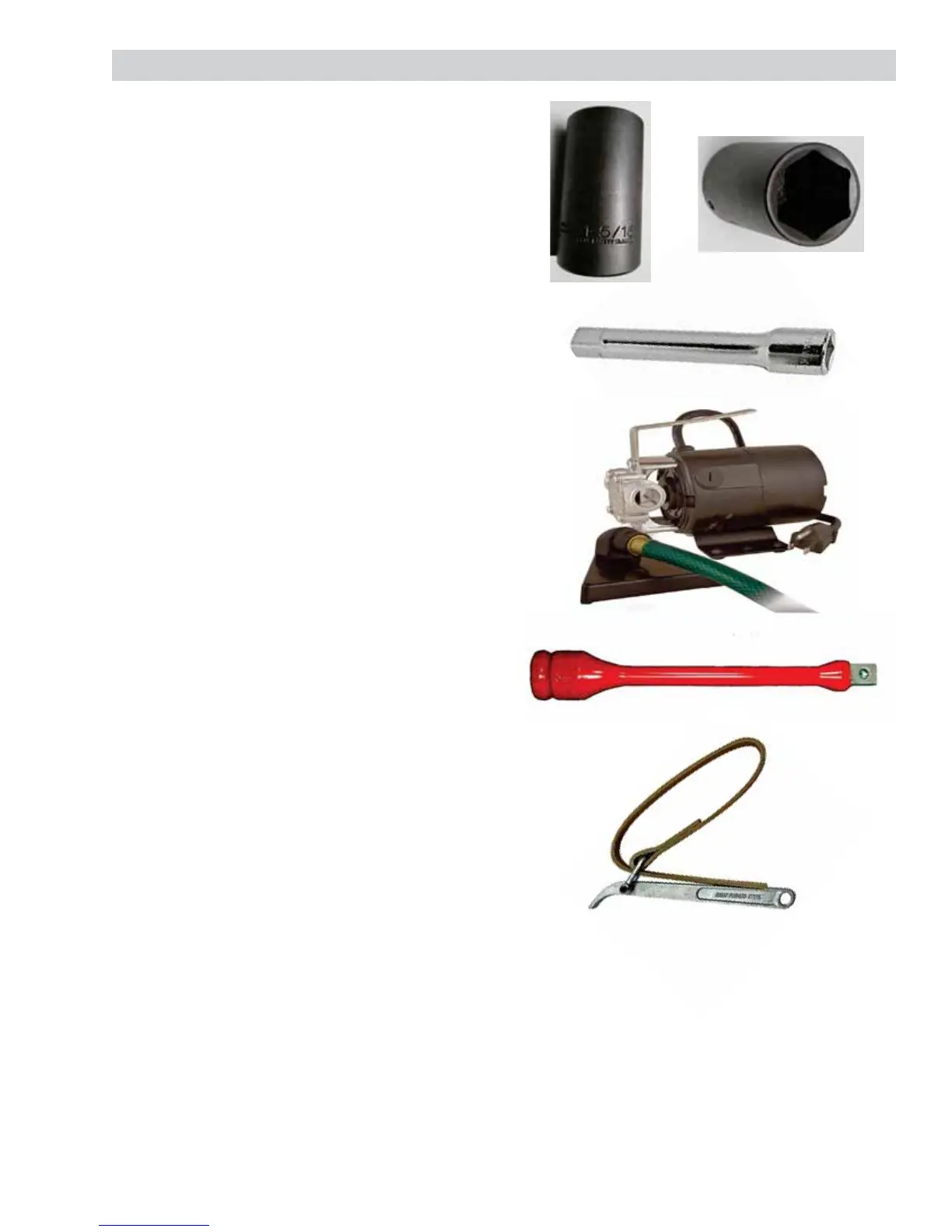

WX05X10022 Socket
This is not an ordinary impact socket. This is a
shallow wall deep well 1-5/16 impact socket, used
to remove the washer hub nut.
WX05X00000 3/8 x 17-3/8th Socket Extension
The long socket extension is used for removing the
single action agitator bolt.
WX05X23817 Water Transfer Pump
The water transfer pump is used to remove water
from the tub should the drain pump need to be
removed. The transfer pump only comes with one (1)
hose. A standard washer hose can be used for the
outlet side of the pump. Part number WH41X10207.
WX05X10028 Torque Limiter
The torque limiter tool is ONLY used with an impact
gun to achieve the proper torque. 100 ft. lbs.
Use the torque limiter when removing or installing
the hub nut to prevent damage to the shaft and
tube assembly.
WH05X25382 Strap Wrench
The strap wrench is used to remove the two stage
agitator to access the agitator bolt.
Standard Tools
• 1/4” Nut driver
• 5/16” Nut driver
• 3/8” Socket
• 7/16” Socket
• 1/2” Socket
• 9 /16” Socket
• 3/8 Drive Ratchet
• Electric impact gun
• Inch lb Torque wrench
• Foot lb Torque wrench
• Phillips Screwdriver
• Putty knife
• Multimeter
• Needle nose pliers
To Next Page
