– 50 –

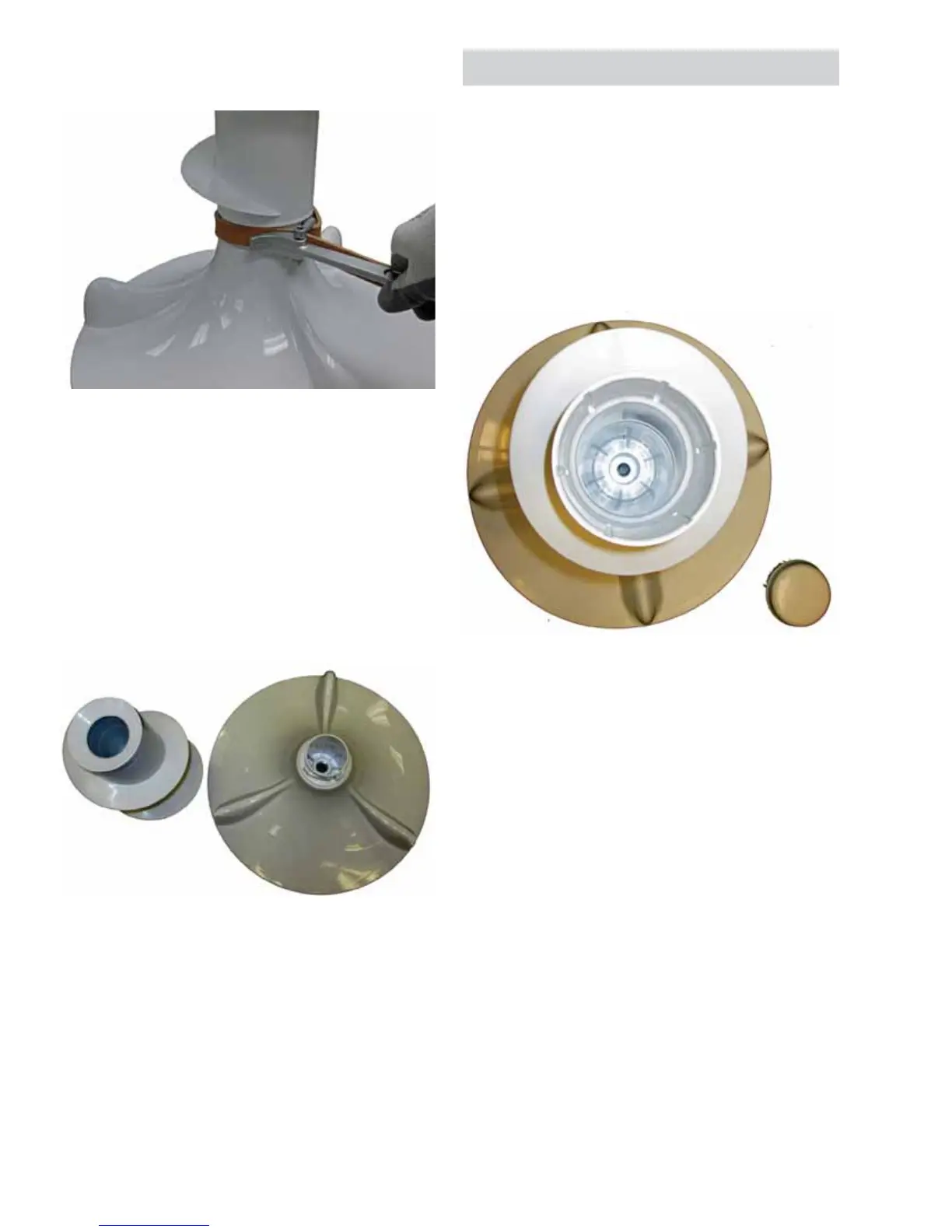

Important: Ensure the strap wrench is positioned
where it will tighten when twisting the auger to the
right.
2. Hold the strap against the handle of the wrench
to prevent it from coming loose around the
auger.
3. Using the counterforce weight of the basket,
rotate the basket to the left slightly and then
with a jerk motion, pop the auger free from the
agitator base. Be sure to hold the strap wrench
as level as possible.
4. Remove the 7/16 hex bolt and slide the impeller
RȺRIWKHVKDIW7KHVSOLQHGFRXSOHULVSDUWRIWKH
impeller.
Important: The impeller bolt (Part #: WH02X24374)
should be replaced any time it is removed for
service, and torqued to 100 in. pounds.
Single Action Agitator
The single action agitator moves the clothes back
and forth through the water while gently pulling
clothes from the top of the wash load to the bottom
of the basket. The bottom of the agitator continues
to move clothes back and forth and circulates them
back to the top of the wash load.
Agitator Removal
1. Remove the cap from the top of the agitator.
2. Use a long socket extension (approximately 17
inches long) to assist with removing the 7/16
hex bolt securing the agitator to the shaft. The
splined coupler is part of the impeller.
Important: The impeller bolt (Part #: WH02X24374)
should be replaced any time it is removed for
service and torqued to 100 in. pounds.
