GE GTW330ASK_WW User Manual

– 64 –
Mode Shifter Removal
The belt protector, belt and transmission pulley need
to be removed to access the mode shifter.
1. Disconnect the mode shifter motor harness
connector.
2. Remove two 3/8 hex bolts securing the mode
shifter to the platform. The mode shifter, clutch,
FOXWFKVSULQJDQGÀDWZDVKHUZLOOSXOODZD\IURP
the platform.

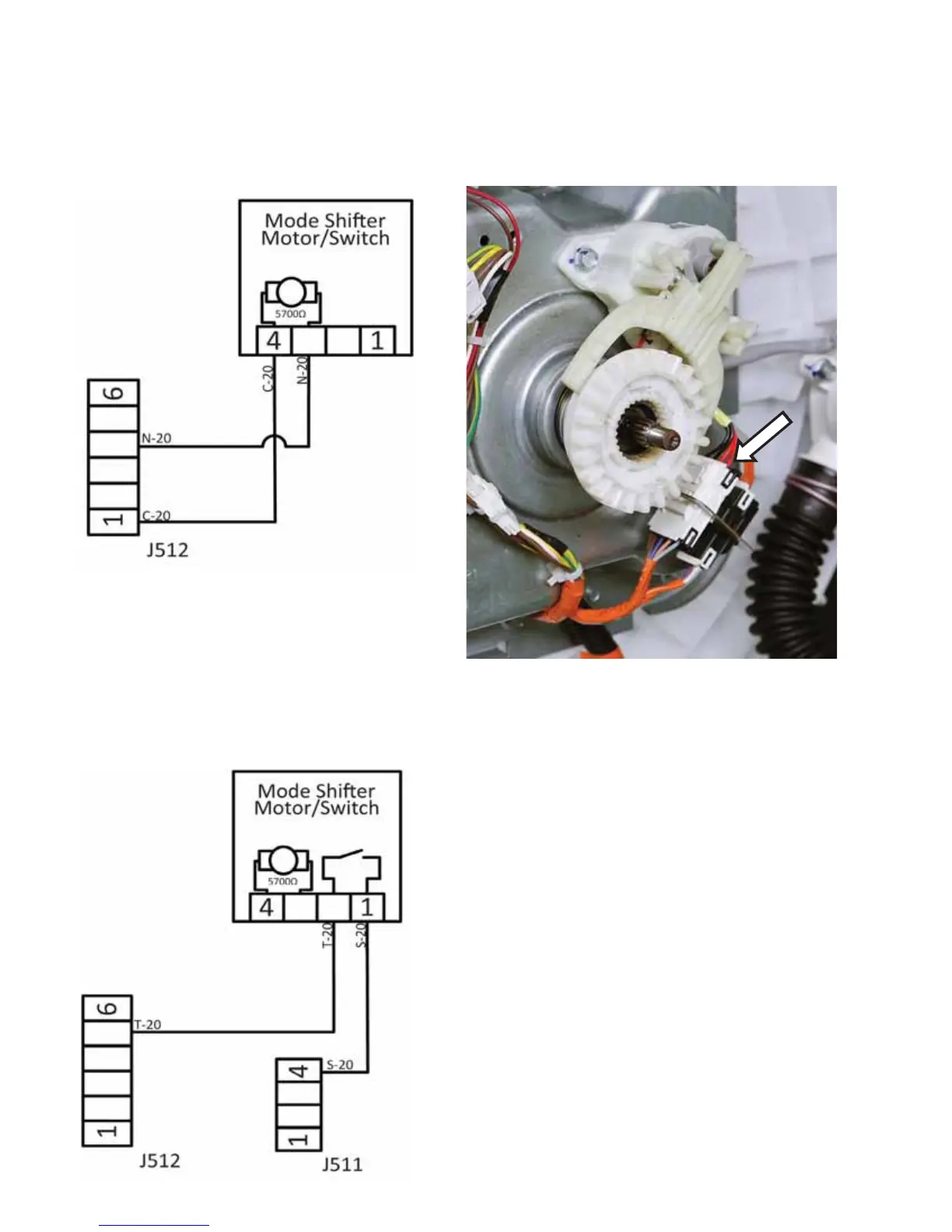

Diagnosing the Mode Shifter Motor
From the J512 connector on the control board, the
brown wire pin 1 to the blue wire pin 4 should read
approximately 5700 ohms. 120 VAC can be applied
to the motor two black wires on the mode shifter to
manually check mode shifter operation.
Diagnosing the Mode Shifter Switch
The Mode Shifter Switch's home position is open,
ready for a spin cycle. When agitating, the switch
should be closed. From the J512 connector on
the control board, the tan wire pin 5 to the J511
connector pin 4 gray wire.
(Continued next page)
